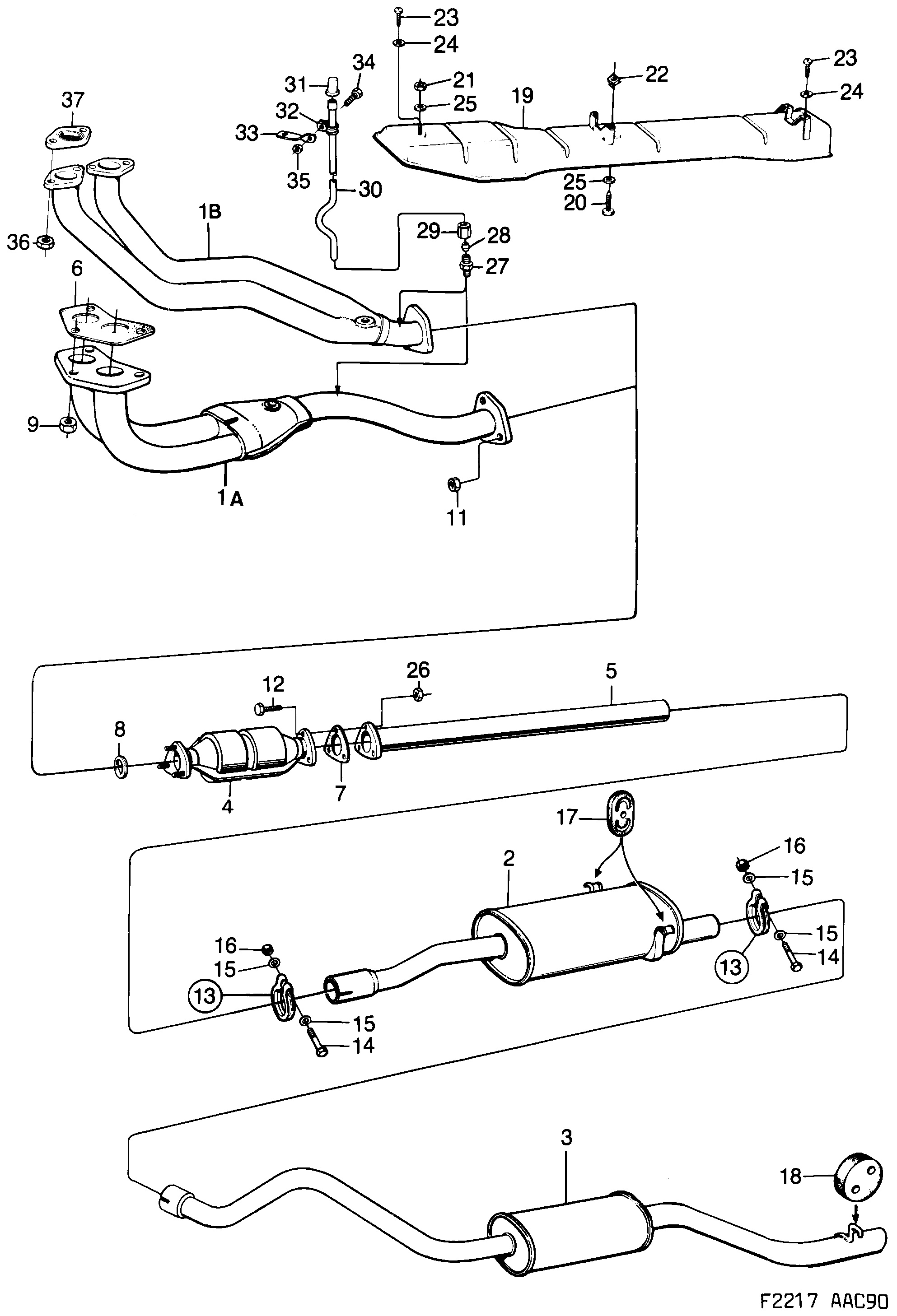

Group 2 Engine, section 1520
| Pos | Article | Part No. |
|---|---|---|
| 1B | Exhaust pipe | 8980278 |
| 1A | Exhaust pipe | 5466933 (replaces 7539117) |
| 1B | Exhaust pipe | 8980443 |
| 1A | Exhaust pipe | 8976763 |
| 2 | Muffler | 5466198 |
| 3 | Muffler | 5466180 |
| 4 | Three way catalytic converter | 9332461 |
| 4 | Three way catalytic converter | 4440061 |
| 5 | Exhaust pipe | 5466792 (replaces 9333840) |
| 6 | Gasket | 7528136 |
| 7 | Gasket | 4024089 |
| 8 | Ring | 8328726 |
| 9 | Nut | 7979503 |
| 11 | Nut | 8151235 |
| 12 | Screw | 7967789 |
| 13 | Clamp | 8386450 |
| 14 | Screw | 32000289 (replaces 8084014) |
| 15 | Washer | 9319047 |
| 16 | Nut | 8151060 |
| 17 | Rubber mounting | 9328105 |
| 18 | Rubber mounting | 9365404 |
| 19 | Heat shield | 4021598 (replaces 9349804) |
| 19 | Shield | 4021598 |
| 20 | Screw | 9368218 |
| 22 | Cage nut | 7970429 |
| 23 | Screw | 7922503 |
| 24 | Washer | 8029951 |
| 24 | Washer | 9166364 |
| 25 | Washer | 92153033 (replaces 8029985) |
| 26 | Nut | 30509159 (replaces 7974264) |
| 27 | Nipple | 8131963 |
| 28 | Ferrule | 8132219 |
| 29 | Fitting nut | 8145534 |
| 30 | Tube | 8980468 |
| 30 | Tube | 8976789 |
| 31 | Cover | 8976680 |
| 32 | Clamp | 92150772 (replaces 7969355) |
| 33 | Bracket | 8976797 |
| 34 | Screw | 7969223 |
| 35 | Nut | 11900428 (replaces 7971658) |
| 36 | Nut | 11900437 (replaces 7978620) |
| 37 | Gasket | 8980328 |
| Muffler kit | 8819690 | |
| Mounting kit | 8818577 | |
| Mounting kit | 9321555 |
