Saab 900 1994-1996 Exhaust system

Group 2 Engine, section 1500

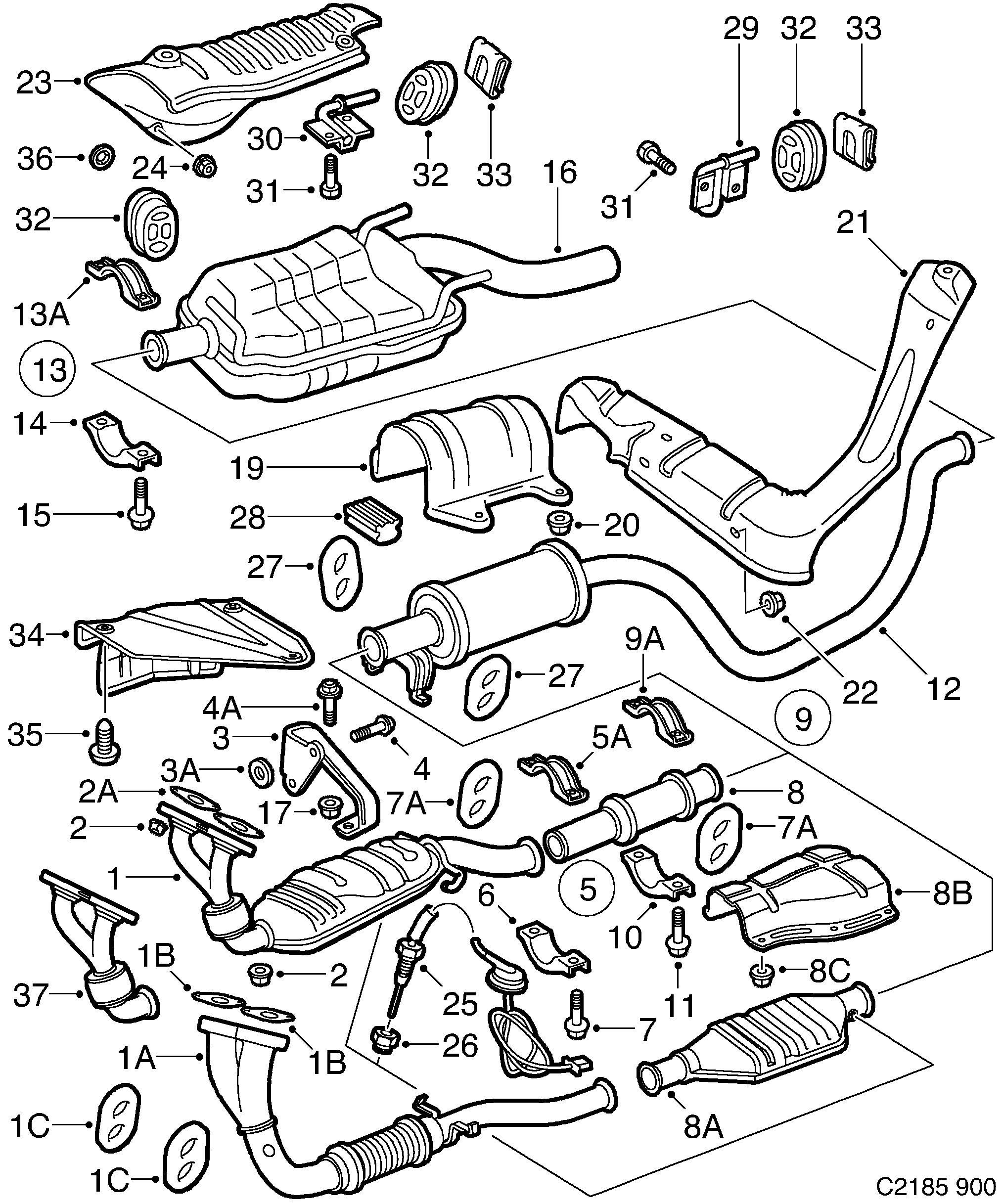

Saab 900 Exhaust system diagram
PosArticlePart No.
1Three way catalytic converter4225736
1Three way catalytic converter93167223 (replaces 4445433)
1Three way catalytic converter4526844
1Three way catalytic converter4225959
1Three way catalytic converter93167223 (replaces 4445441)
1AExhaust pipe4444527
1BGasket8980328
1BGasket4624383
1CRubber mounting9365404
2Nut7979503
3Brace4624557 (replaces 4444337)
3AWasher7982317
4Screw92150012 (replaces 7978182)
4AHexagon screw7978265
5Exhaust pipe clamp5465950
5AExhaust pipe clamp4229829
6Exhaust pipe clamp4229811
7Screw55566034 (replaces 7978190)
8Intermediate pipe4750741 (replaces 4445516)
8AThree way catalytic converter4229860
8AThree way catalytic converter4526968
8AThree way catalytic converter4623054
8AThree way catalytic converter4229878
8AThree way catalytic converter4526976
8AThree way catalytic converter4623062
8BHeat shield4235347
8CHexagon nut11089471 (replaces 4345138)
12Muffler4966859 (replaces 4226320)
16Muffler5174990 (replaces 4225751)
17Spacer7554215
19Heat shield4394235
21Heat shield4235362
23Heat shield4394128
25Sensor4433488
25Sensor4433496
25Sensor4433504
25Sensor4587515
26Reduction nipple4226395
27Rubber mounting4235396
28Rubber damper4235412
29Bracket4229225
30Bracket4229209
31Screw92153212 (replaces 7972623)
32Rubber mounting4235404
33Clip92152112 (replaces 4229910)
34Heat shield9144676
35Screw7971294
36Lock washer4087722
37Exhaust pipe5171798
