Saab 900 1990-1993 EGR system Electronic

Group 2 Engine, section 1430

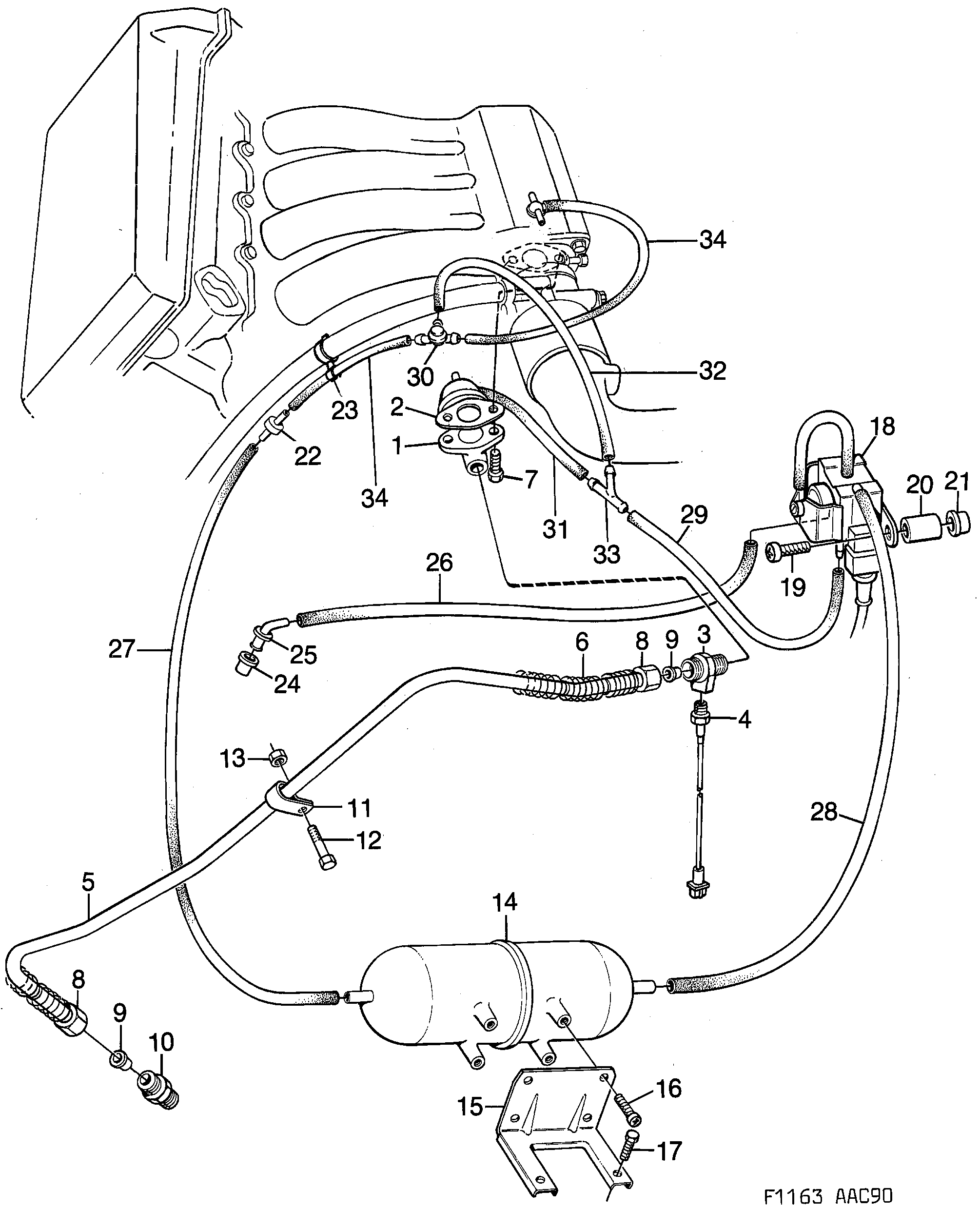

Saab 900 EGR system Electronic diagram

Pos	Article	Part No.
1	Valve	8788721
2	Gasket	7507973
3	Nipple	9119728
4	Sensor	9119512
5	EGR-pipe	7520133
6	Protection	7508385
7	Screw	8019929
7	Screw	9166299
8	Nut	8145559
9	Ferrule	8132235
10	Nipple	8131989
11	Clamp	7515836
12	Screw	8021933
12	Screw	9166315
13	Nut	8151227
14	Vacuum tank	4015996
15	Bracket	4016069
16	Screw	7973613
17	Screw	7969223
18	Timing valve	9119504
19	Screw	4019493
20	Spacer tube	4016051
21	Expanding nut	7973456
22	Check valve	12793343 (replaces 4023297)
23	Clamp	7398233
24	Bushing	4016002
25	Nipple	4016036
26	Vaccum hose	9136243
30	Delivery valve	4023701
33	Tube	8509002
