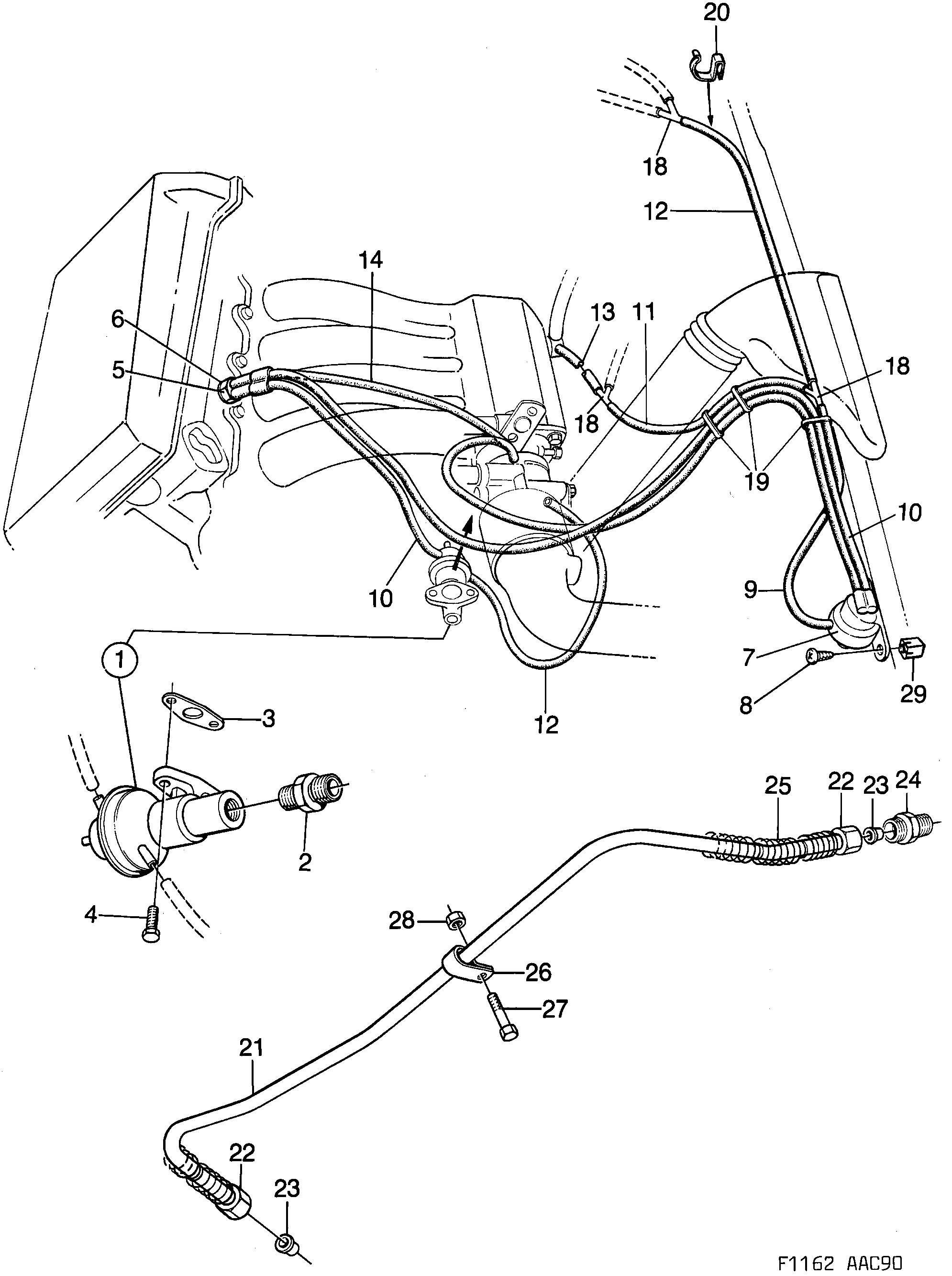

Group 2 Engine, section 1400
| Pos | Article | Part No. |
|---|---|---|
| 1 | Exhaust gas recirculation valve | 9350216 |
| 1 | Exhaust gas recirculation valve | 8859969 |
| 1 | Exhaust gas recirculation valve | 9350224 |
| 1 | Exhaust gas recirculation valve | 8859977 |
| 2 | Nipple | 9114679 |
| 2 | Nipple | 7506652 |
| 3 | Gasket | 7507973 |
| 4 | Screw | 8019929 |
| 4 | Screw | 9166299 |
| 5 | Valve | 7504897 |
| 6 | Gasket | 92150435 (replaces 8124141) |
| 7 | Switch | 7528425 |
| 8 | Screw | 8059412 |
| 9 | Vaccum hose | 9136243 |
| 18 | Tube | 8509002 |
| 19 | Tie strap | 7971872 |
| 20 | Clip | 7933443 |
| 21 | EGR-pipe | 7520133 |
| 21 | EGR-pipe | 7487168 |
| 22 | Nut | 8128969 |
| 23 | Ferrule | 8132235 |
| 24 | Nipple | 8131989 |
| 25 | Protection | 7508385 |
| 26 | Clamp | 7515836 |
| 27 | Screw | 8021933 |
| 27 | Screw | 9166315 |
| 28 | Nut | 8151227 |
| 29 | Expanding nut | 7973456 |
