Saab 900 1986-1989 Automatic idling speed Control

Group 2 Engine, section 1300

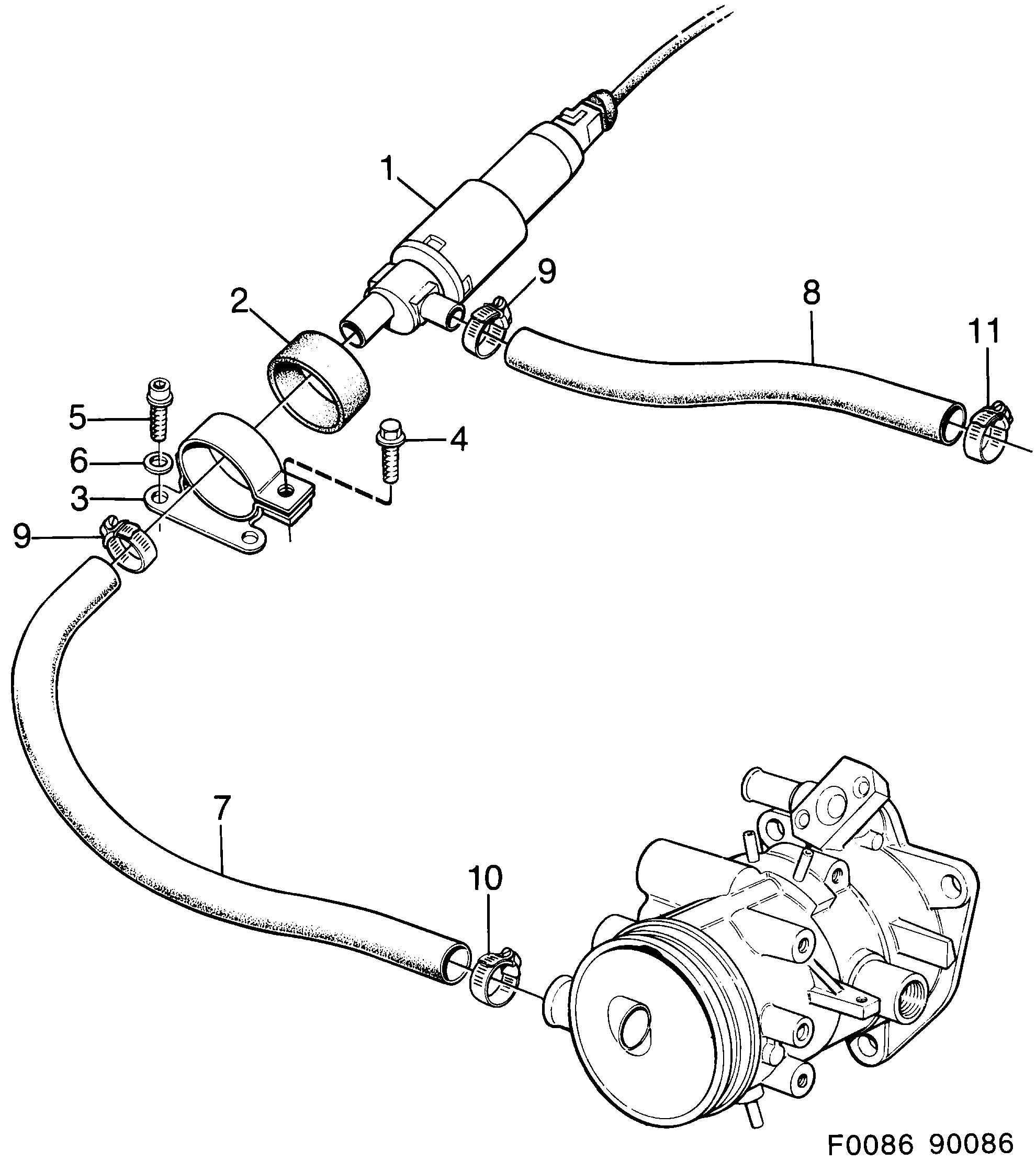

Saab 900 Automatic idling speed Control diagram

Pos	Article	Part No.
1	Control valve	7516792
1	Idle air control valve	7586019
2	Ring	7565351
2	Rubber ring	7569056
3	Bracket	7517733
3	Bracket	7480916
4	Screw	8125023
5	Screw	9350653
6	Washer	8029951
7	Hose	7517923
7	Hose	7583867
8	Hose	7524176
8	Hose	7587173
8	Hose	7587181
9	Hose clamp	7970072 (replaces 7963531)
9	Hose clamp	7970080 (replaces 7963549)
11	Hose clamp	7970064 (replaces 7963523)
