Saab 900 1986-1989 Engine suspension Hydraulic

Group 2 Engine, section 130

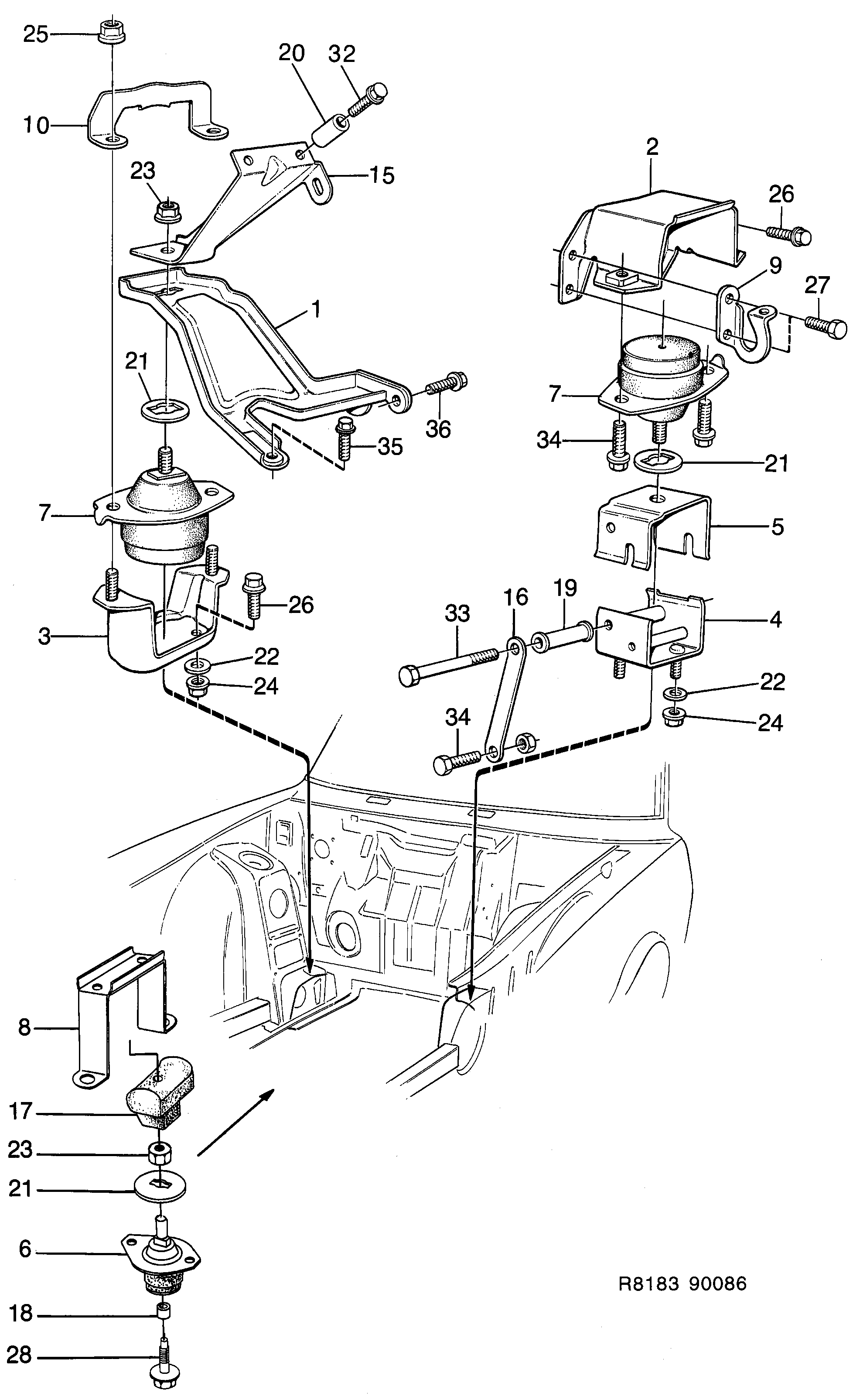

Saab 900 Engine suspension Hydraulic diagram

Pos	Article	Part No.
1	Bracket	7547284
1	Bracket	7544000
2	Bracket	7543978
3	Bracket	7544026
4	Bracket	7543994
5	Attaching brace	7543986
6	Housing	7545668
7	Housing	7545650
8	Limiter	7544042
9	Limiter	7544901
10	Limiter	7544034
15	Brace	7544992
15	Brace	7544018
16	Brace	7544893
17	Absorber	7544083
18	Bushing	7544265
19	Spacer	7544273
20	Sleeve	8356859
21	Washer	7547656
22	Washer	92153033 (replaces 8029985)
23	Nut	92153201 (replaces 7971765)
24	Nut	8074106
24	Nut	8151235
25	Lock nut	7969306
26	Screw	55562121 (replaces 7967938)
27	Screw	7973779
28	Screw	11900368 (replaces 7977242)
32	Screw	8083941
33	Screw	7977473
33	Screw	7977267
34	Screw	7970353
35	Screw	9346370
36	Screw	8356917
	Screw	7972748
