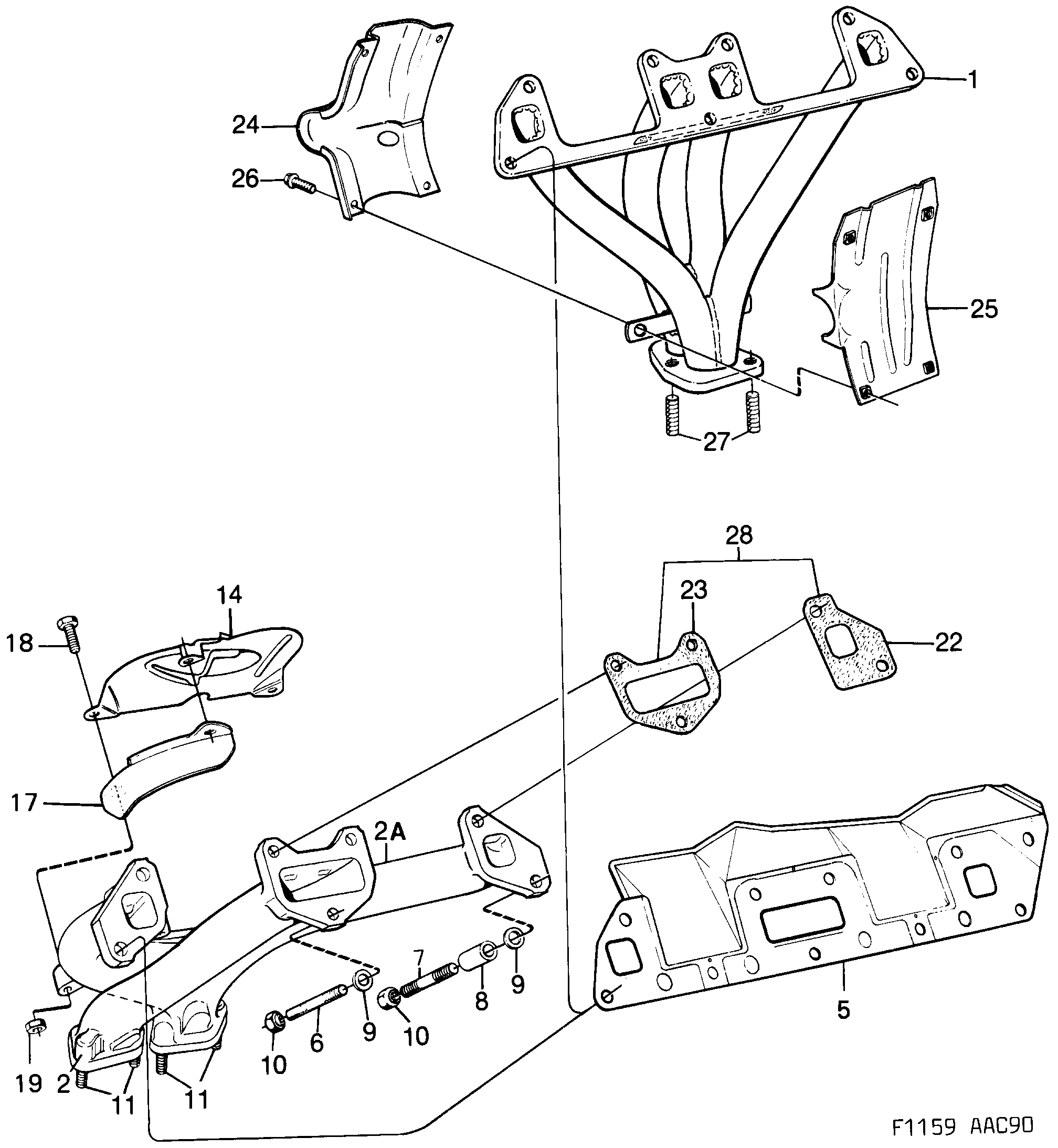

Group 2 Engine, section 1280
| Pos | Article | Part No. |
|---|---|---|
| 1 | Exhaust manifold | 7483464 |
| 2 | Exhaust manifold | 8356420 |
| 2A | Exhaust manifold | 7508583 |
| 5 | Gasket | 7561772 |
| 6 | Stud screw | 92151352 (replaces 7519010) |
| 7 | Stud screw | 92151353 (replaces 9350588) |
| 7 | Stud screw | 92151353 (replaces 7985161) |
| 8 | Spacer sleeve | 9306812 |
| 9 | Washer | 55564926 (replaces 8073249) |
| 10 | Nut | 11516076 (replaces 8859878) |
| 11 | Stud screw | 8000622 (replaces 8360943) |
| 14 | Cover | 8323214 |
| 17 | Fender | 9329442 |
| 18 | Screw | 8021917 |
| 18 | Screw | 7977499 (replaces 8019978) |
| 19 | Nut | 8151227 |
| 22 | Gasket | 7588940 |
| 23 | Gasket | 7588957 |
| 24 | Cover | 7534456 |
| 25 | Cover | 7528524 |
| 26 | Screw | 92153212 (replaces 7972623) |
| 27 | Stud | 8000622 |
| 28 | Gasket | 8819146 |
| Screw kit | 8817280 |
