Saab 900 1990-1993 Automatic idling speed Control

Group 2 Engine, section 1250

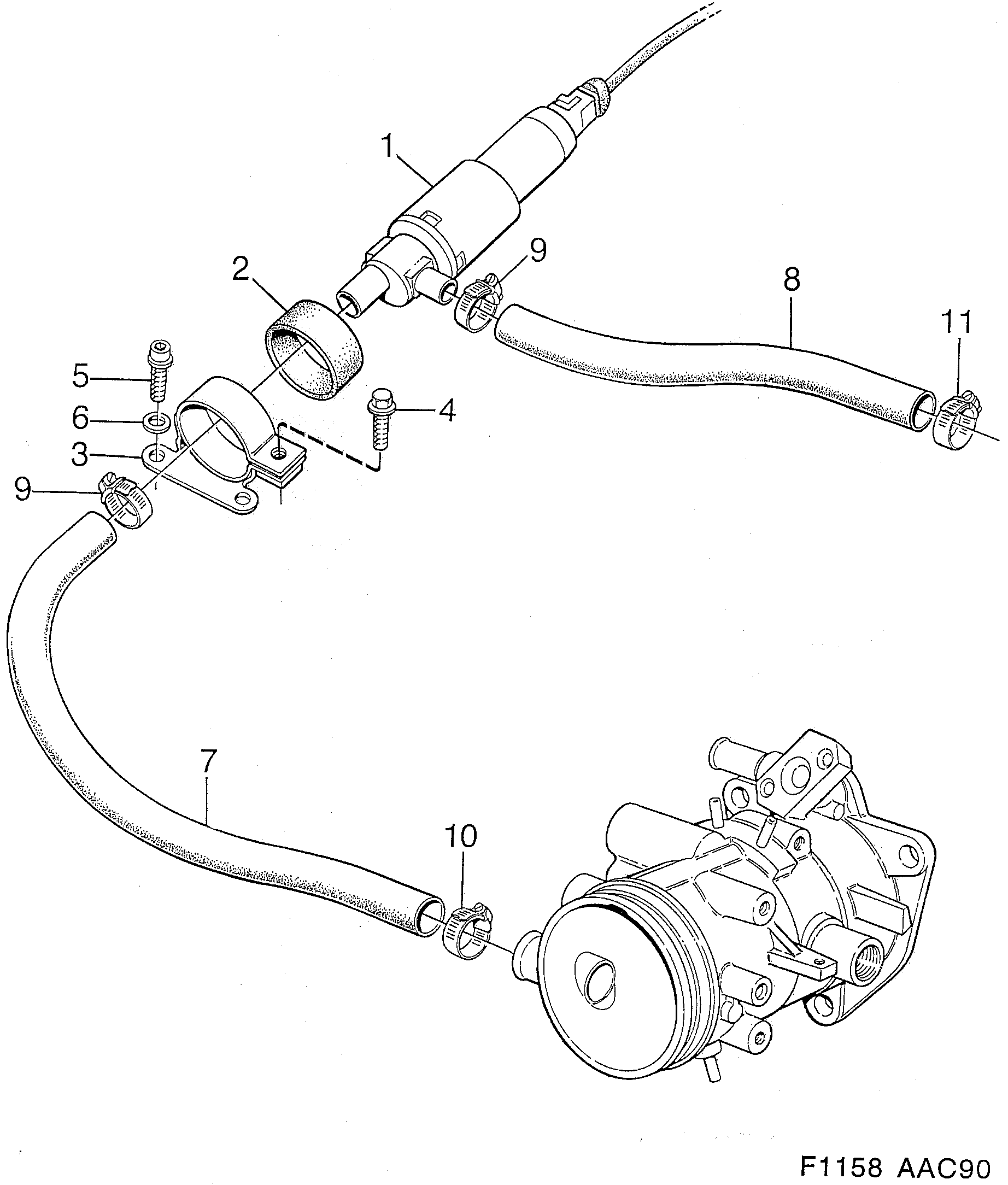

Saab 900 Automatic idling speed Control diagram

Pos	Article	Part No.
1	Idle air control valve	7586019
1	Control valve	7485634
1	Control valve	8857179
2	Rubber ring	7569056
2	Rubber ring	7857998
3	Bracket	7480916
4	Screw	8125023
5	Screw	9350653
6	Washer	8029951
6	Washer	9166364
7	Hose	7583867
7	Hose	9128505
7	Hose	7517923
7	Hose	9128497
8	Hose	7587173
8	Hose	7587181
9	Hose clamp	7970080 (replaces 7963549)
9	Hose clamp	7970072 (replaces 7963531)
11	Hose clamp	7970064 (replaces 7963523)
