Saab 900 1986-1989 Throttle housing

Group 2 Engine, section 1240

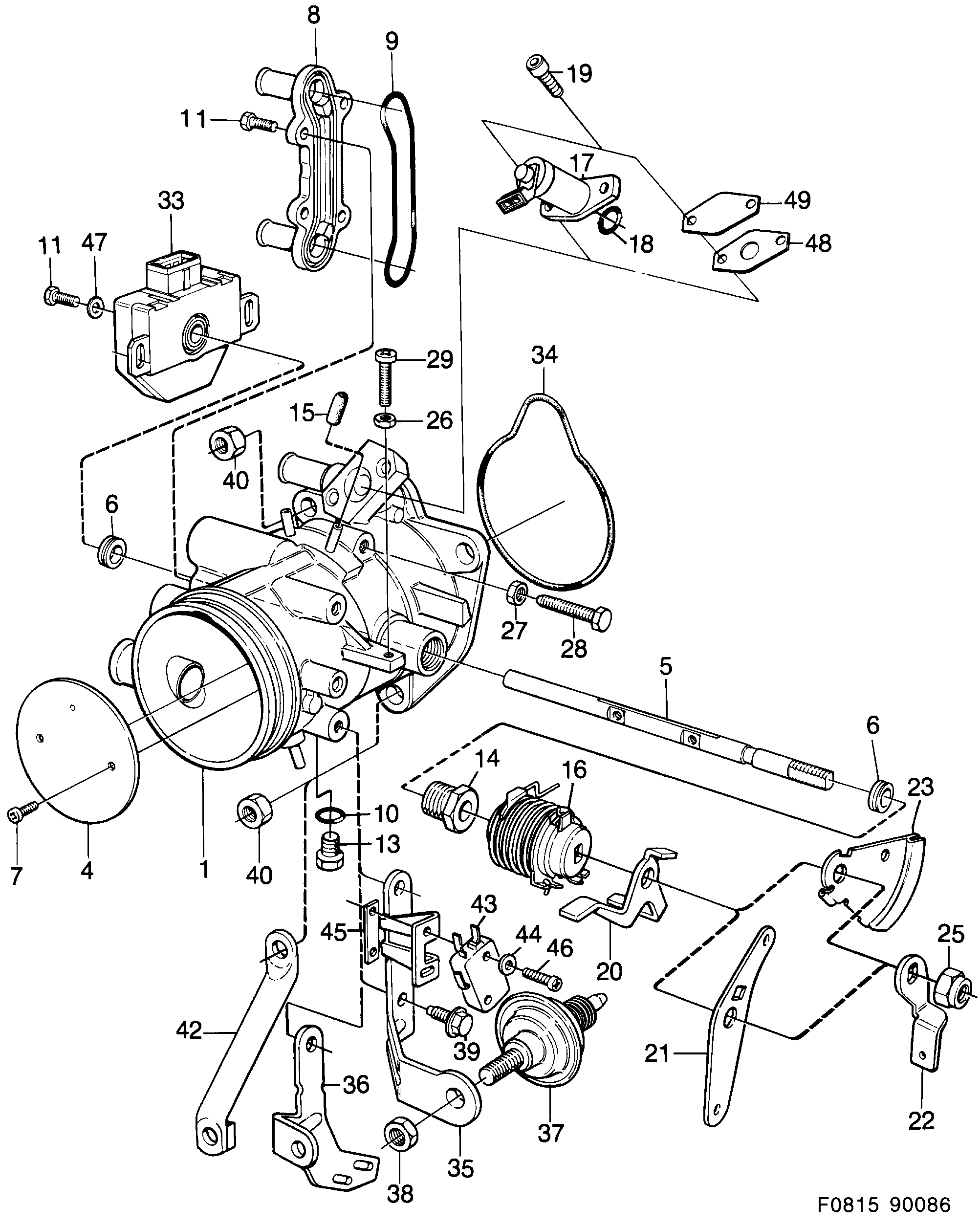

Saab 900 Throttle housing diagram

Pos	Article	Part No.
1	Throttle body	7522444
1	Throttle body	7563422
1	Throttle body	7487259
1	Throttle body	7522931
1	Throttle body	7563489
1	Throttle body	7487275
1	Throttle body	7569577
1	Throttle body	7588023
1	Throttle body	7487705
1	Throttle body	7487267
1	Throttle body	7569593
1	Throttle body	7482409
1	Throttle body	7484710
1	Throttle body	7485915
1	Throttle body	9114596
4	Shutter	8353484
5	Shutter shaft	8057259 (replaces 7504673)
6	Seal	8357345
7	Screw	8059073
8	Cover	7505423
9	O-ring	7506264
10	O-ring	7974546 (replaces 8109563)
10	O-ring	7974546 (replaces 8046559)
11	Screw	7985187 (replaces 7507080)
13	Plug	7562739
14	Plug	9359050
15	Plug	8335614
16	Return spring	7516974
17	Starter valve	7486129
18	O-ring	8046542
19	Screw	7507072
20	Lever	7562390
20	Lever	7583859
21	Lever	7564396
22	Lever	7562010
23	Cam disc	9309261
25	Nut	11900440 (replaces 8074288)
26	Nut	8151045 (replaces 8050593)
26	Nut	8151045
27	Nut	8050601
27	Nut	8151052
28	Screw	8357378
29	Set screw	4087706 (replaces 8007486)
33	Potentiometer	7501612
34	O-ring	7521875
35	Bracket	7518889
36	Bracket	7562044
36	Bracket	9114752
36	Bracket	8787780
37	Absorber	9314501
38	Nut	8069015
39	Screw	8129876
39	Screw	7971294
40	Nut	11900429 (replaces 8125882)
40	Nut	11900429 (replaces 8151326)
42	Brace	7517402
43	Switch	7588270 (replaces 7513815)
43	Switch	7588270
44	Washer	7564065
44	Washer	8029910
45	Bracket	9350752
45	Bracket	7564834
46	Screw	8123671
46	Screw	8096364
47	Washer	32000431 (replaces 8029936)
48	Gasket	7586878
49	Flange	7586860
