Saab 900 1990-1993 Throttle housing

Group 2 Engine, section 1190

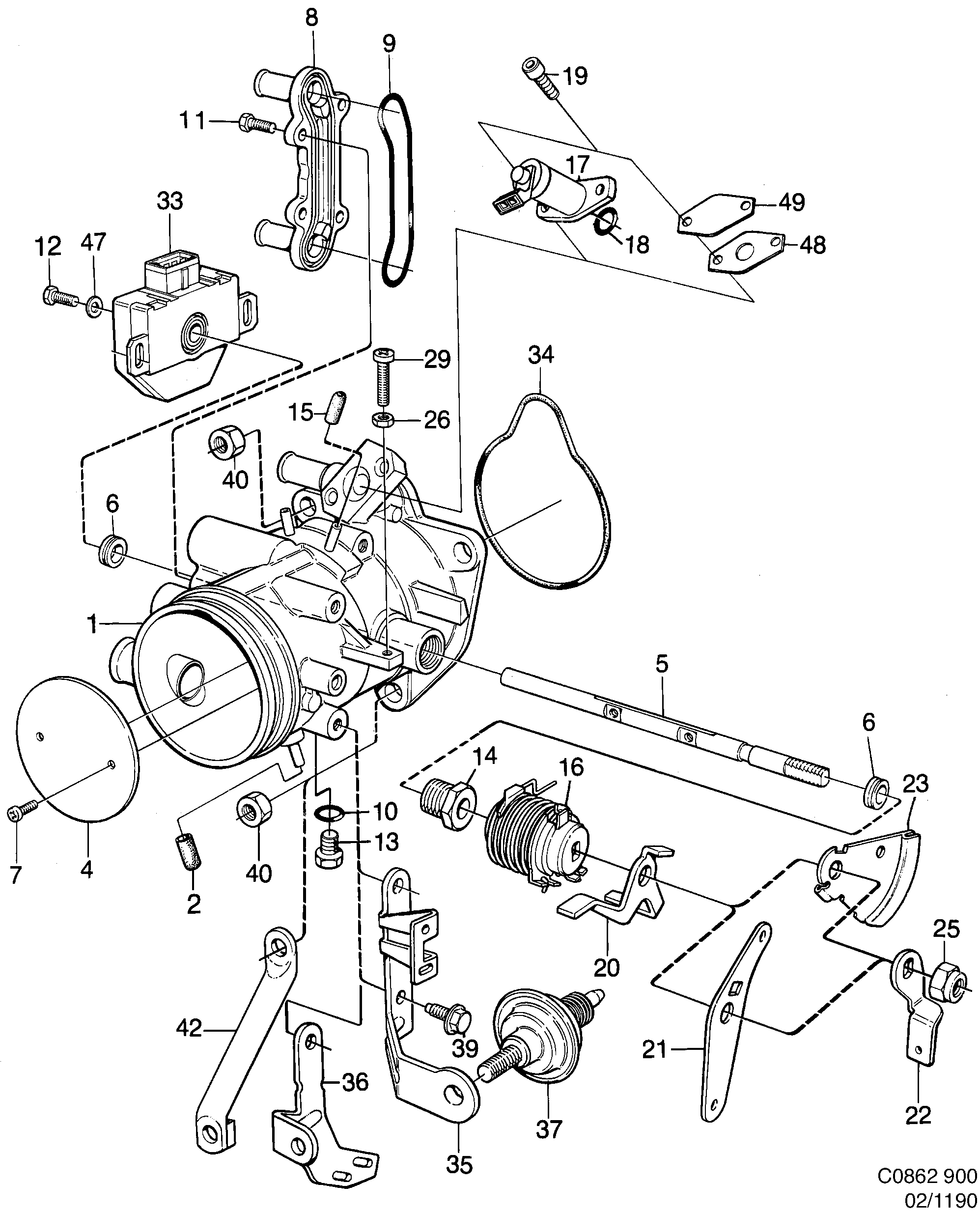

Saab 900 Throttle housing diagram

Pos	Article	Part No.
1	Throttle body	7487267
1	Throttle body	9119868
1	Throttle body	9109588
1	Throttle body	7484710
1	Throttle body	9109406
1	Throttle body	7871361
1	Throttle body	7871379
1	Throttle body	9109422
1	Throttle body	7485915
2	Plug	8335614 (replaces 8360463)
4	Shutter	8353484
5	Shutter shaft	8057259 (replaces 7504673)
5	Shutter shaft	9107624 (replaces 7872807)
5	Shutter shaft	9128224
6	Seal	8357345
7	Screw	8059073
7	Screw	8057259
8	Cover	7505423
8	Cover	7856883
9	O-ring	7506264
10	O-ring	7974546 (replaces 8046559)
10	O-ring	7974546
11	Screw	7985187 (replaces 7507080)
12	Screw	7482490
13	Plug	7562739
14	Plug	9359050
15	Plug	8335614
16	Return spring	7516974
17	Starter valve	7486129
18	O-ring	8046542
19	Screw	7507072
20	Lever	7583859
21	Lever	7564396
22	Lever	7562010
23	Cam disc	9309261
25	Nut	11900440 (replaces 8074288)
25	Nut	11900440 (replaces 9166406)
26	Nut	8151045
29	Set screw	4087706 (replaces 8007486)
33	Potentiometer	7501612
33	Potentiometer	7486723
33	Throttle position sensor	8857195
34	O-ring	7521875
35	Bracket	7518889
36	Bracket	7562044
36	Bracket	8787780
37	Absorber	9314501
39	Screw	7971294
40	Nut	11900429 (replaces 8151326)
42	Brace	7517402
47	Washer	32000431 (replaces 8029936)
47	Washer	32000431 (replaces 9166356)
48	Gasket	7586878
49	Flange	7586860
