Saab 900 1994-1998 Throttle housing 4-cylinder

Group 2 Engine, section 1140

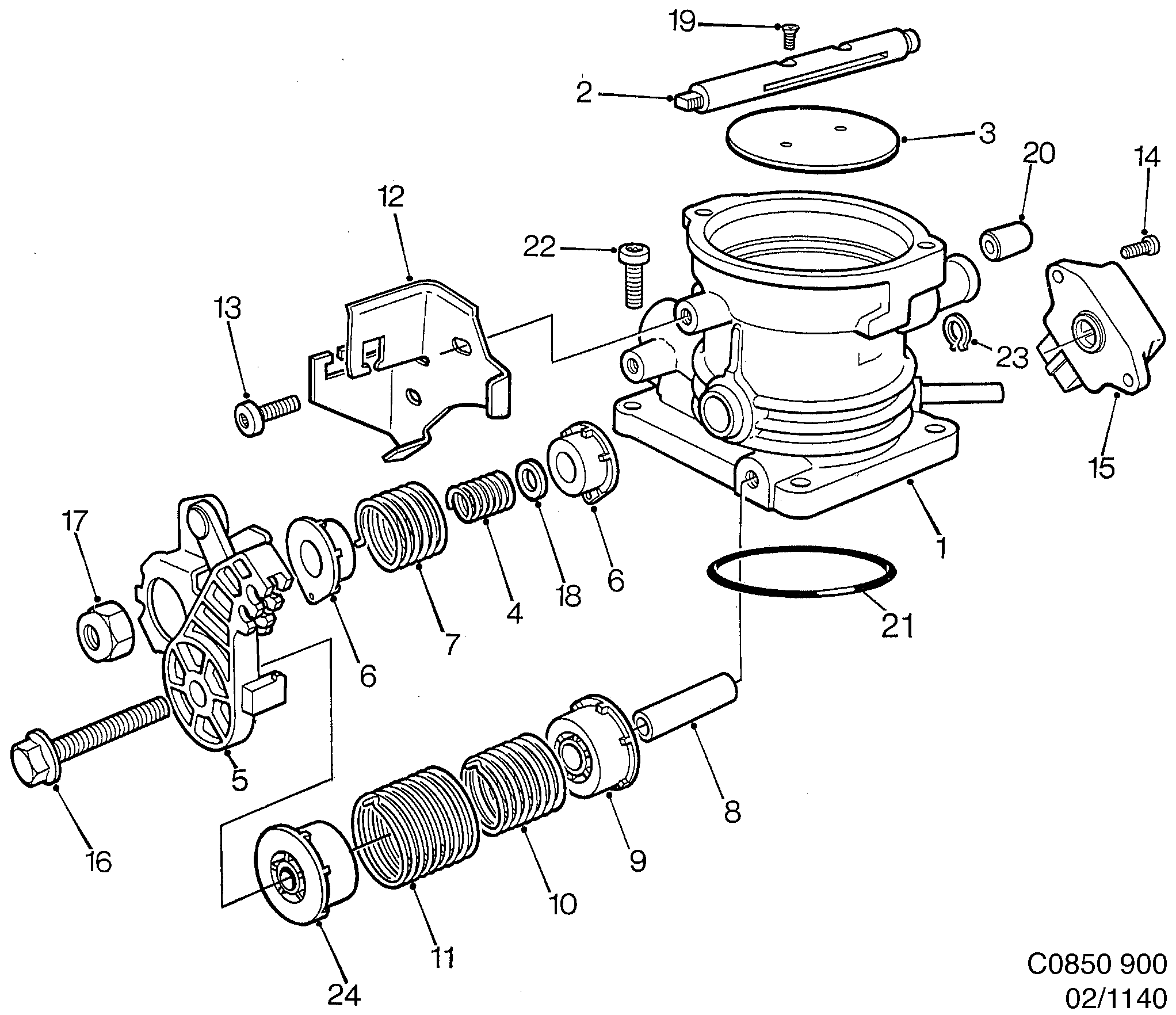

Saab 900 Throttle housing 4-cylinder diagram

Pos	Article	Part No.
1	Throttle body	9166612
1	Throttle body	9166596
2	Shutter shaft	9181025 (replaces 9149485)
2	Shutter shaft	9181025
3	Throttle disc	9173774 (replaces 9149626)
3	Throttle disc	9173774
4	Compression spring	30551938 (replaces 9148560)
5	Lever	9166901
6	Spring retainer	9166943
7	Torsion spring	9166950
8	Bearing sleeve	9185422 (replaces 9149576)
8	Bearing sleeve	9185422
9	Spring retainer	9167487
10	Torsion spring	9171182
11	Torsion spring	9171190
12	Bracket	9167008
13	Screw	8059560
13	Screw	7985930 (replaces 8125015)
13	Screw	7985930
14	Screw	92151805 (replaces 8059230)
15	Throttle position sensor	8857195
15	Throttle position sensor	4661062
15	Potentiometer	9181538
16	Flange screw	7987175 (replaces 7985070)
16	Flange screw	7987175
17	Nut	11900440 (replaces 8074288)
18	Plain washer	30546652 (replaces 9165978)
19	Screw	8057259
20	Plug	8335614 (replaces 8360463)
21	O-ring	9138702
22	Screw	92151823 (replaces 8059586)
23	Snap ring	8047649
24	Spring retainer	9167495
