Saab 900 1990-1993 Throttle housing

Group 2 Engine, section 1130

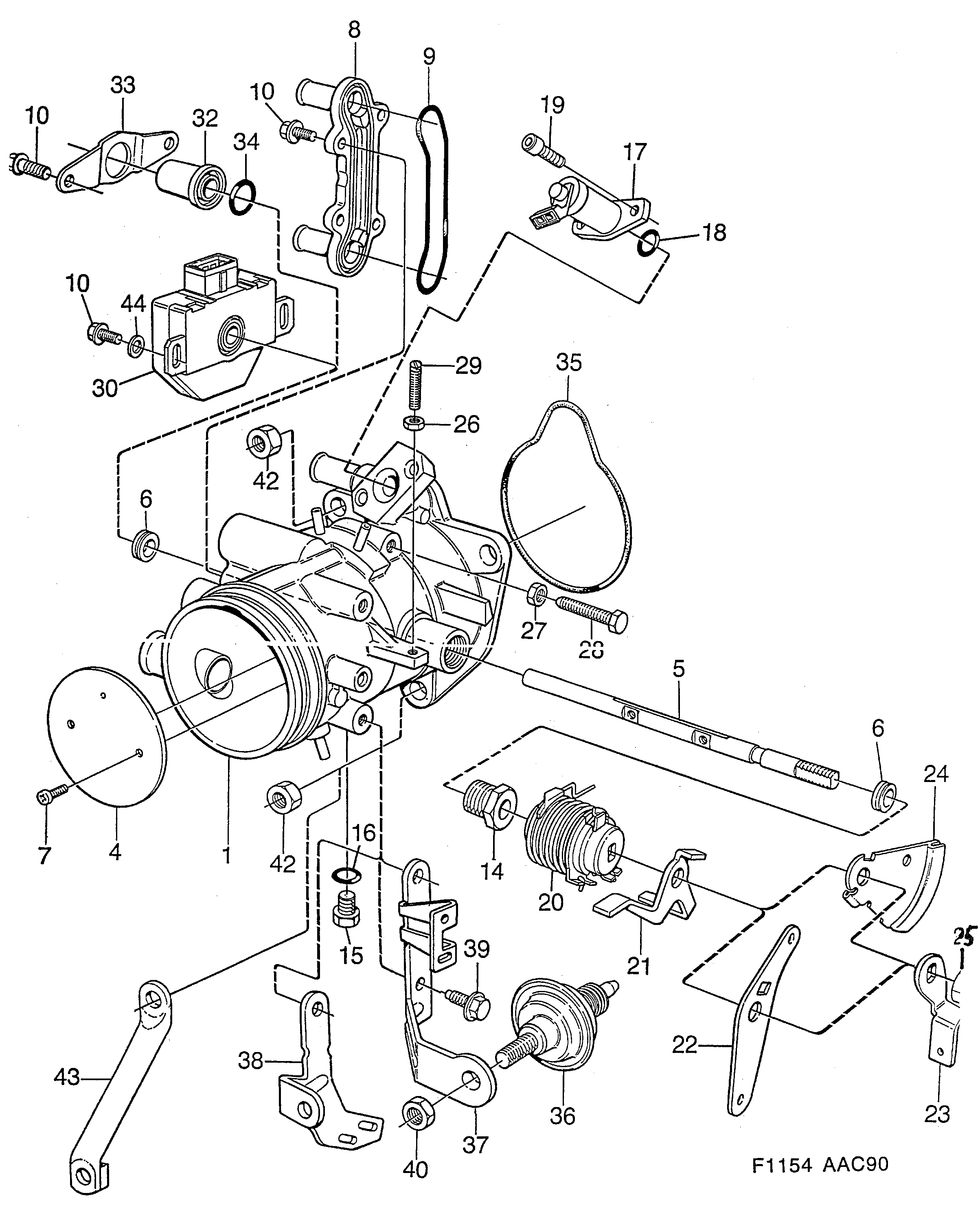

Saab 900 Throttle housing diagram

Pos	Article	Part No.
1	Throttle body	7484694
1	Throttle body	7484702
4	Shutter	8353484
5	Shutter shaft	8057259 (replaces 7504673)
5	Shutter shaft	9107624 (replaces 7872807)
6	Seal	8357345
7	Screw	8059073
7	Screw	8057259
8	Cover	7505423
9	O-ring	7506264
10	Screw	7985187 (replaces 7507080)
14	Plug	9359050
15	Plug	7562739
16	O-ring	7974546 (replaces 8046559)
16	O-ring	7970361
17	Valve	9312471
18	O-ring	8046542
19	Screw	7507072
20	Return spring	7516974
21	Lever	7562390
22	Lever	7564396
23	Lever	7562010
24	Cam disc	9309261
25	Nut	11900440 (replaces 8074288)
25	Nut	11900440 (replaces 9166406)
26	Nut	8151045
27	Nut	8151052
28	Screw	8357378
29	Set screw	4087706 (replaces 8007486)
30	Potentiometer	7501612
32	Cover	7507098
33	Bracket	7507106
34	O-ring	8048829
35	O-ring	7521875
36	Absorber	9311895
37	Bracket	7518889
38	Bracket	7562044
39	Screw	7971294
40	Nut	8069015
42	Nut	11900429 (replaces 8151326)
43	Brace	7517402
44	Washer	32000431 (replaces 8029936)
44	Washer	32000431 (replaces 9166356)
