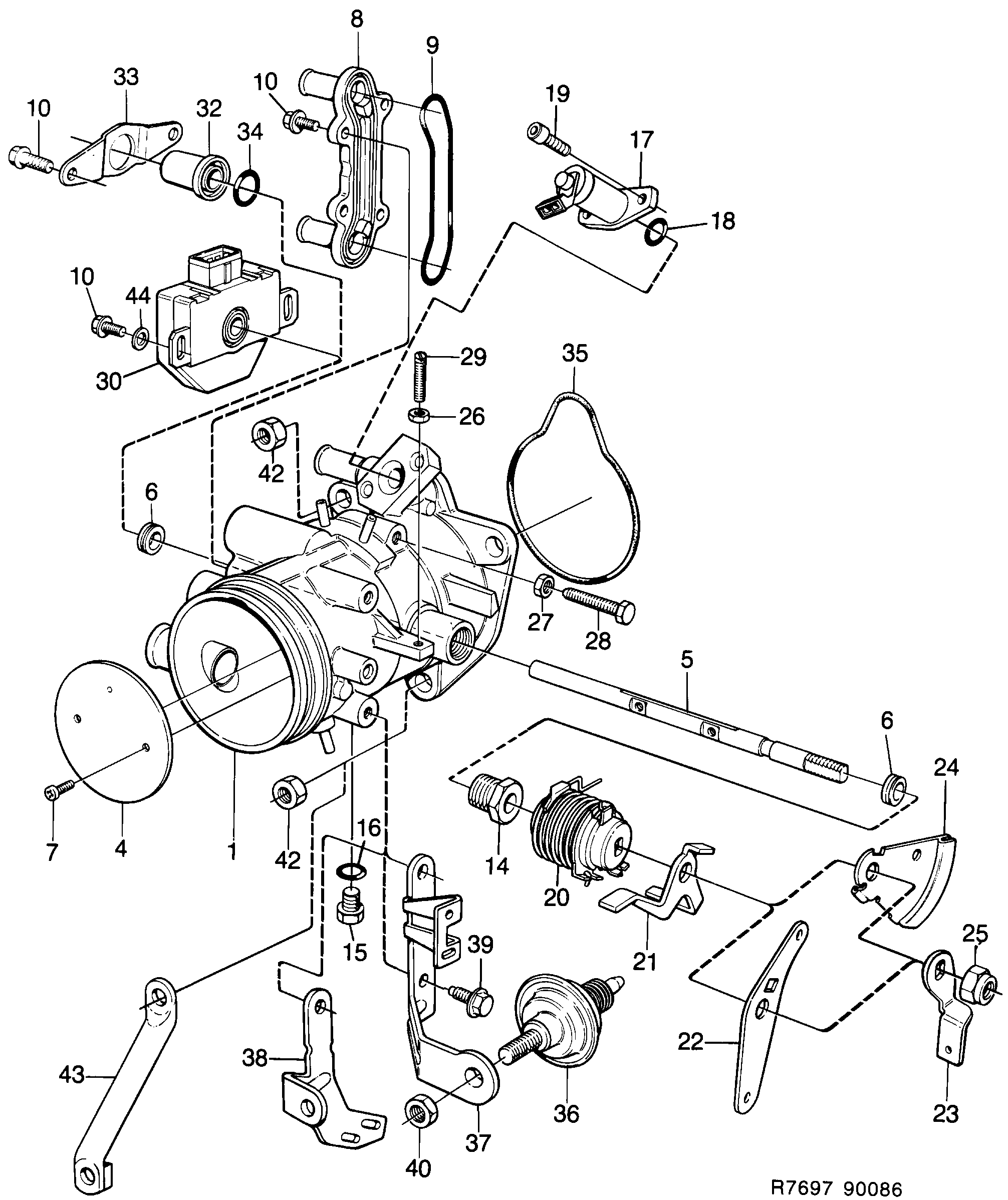

Group 2 Engine, section 1120
| Pos | Article | Part No. |
|---|---|---|
| 1 | Throttle body | 7517873 |
| 1 | Throttle body | 7517980 |
| 1 | Throttle body | 7563265 |
| 1 | Throttle body | 7484694 |
| 1 | Throttle body | 7518038 |
| 1 | Throttle body | 7563307 |
| 1 | Throttle body | 7580707 |
| 1 | Throttle body | 7484702 |
| 4 | Shutter | 8353484 |
| 5 | Shutter shaft | 8057259 (replaces 7504673) |
| 6 | Seal | 8357345 |
| 7 | Screw | 8059073 |
| 8 | Cover | 7505423 |
| 9 | O-ring | 7506264 |
| 10 | Screw | 7985187 (replaces 7507080) |
| 14 | Plug | 9359050 |
| 15 | Plug | 7562739 |
| 16 | O-ring | 7974546 (replaces 8109563) |
| 16 | O-ring | 7974546 (replaces 8046559) |
| 17 | Valve | 9312471 |
| 18 | O-ring | 8046542 (replaces 8109548) |
| 18 | O-ring | 8046542 |
| 19 | Screw | 7507072 |
| 20 | Return spring | 7516974 |
| 21 | Lever | 7562390 |
| 22 | Lever | 7564396 |
| 23 | Lever | 7562010 |
| 24 | Cam disc | 9309261 |
| 25 | Nut | 11900440 (replaces 8074288) |
| 26 | Nut | 8151045 (replaces 8050593) |
| 26 | Nut | 8151045 |
| 27 | Nut | 8050601 |
| 27 | Nut | 8151052 |
| 28 | Screw | 8357378 |
| 29 | Set screw | 4087706 (replaces 8007486) |
| 30 | Potentiometer | 7501612 |
| 32 | Cover | 7507098 |
| 33 | Bracket | 7507106 |
| 34 | O-ring | 8048829 |
| 35 | O-ring | 7521875 |
| 36 | Absorber | 9311895 |
| 37 | Bracket | 7518889 |
| 38 | Bracket | 7562044 |
| 39 | Screw | 8129876 |
| 39 | Screw | 7971294 |
| 40 | Nut | 8069015 |
| 42 | Nut | 11900429 (replaces 8125882) |
| 42 | Nut | 11900429 (replaces 8151326) |
| 43 | Brace | 7517402 |
| 44 | Washer | 32000431 (replaces 8029936) |
