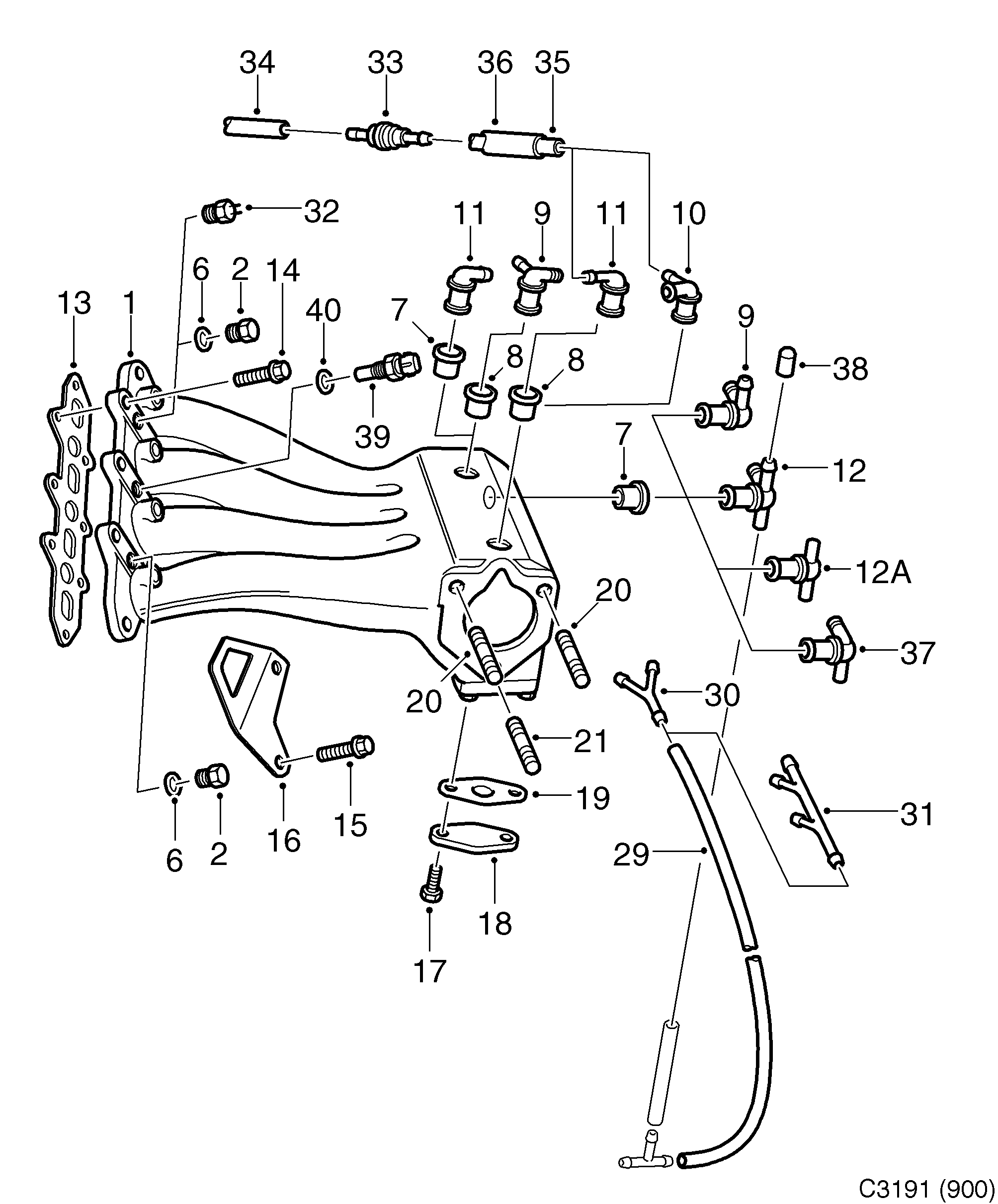

Group 2 Engine, section 1090
| Pos | Article | Part No. |
|---|---|---|
| 1 | Intake manifold | 7562218 |
| 1 | Intake manifold | 7562226 |
| 1 | Intake manifold | 7587553 |
| 2 | Plug | 7563042 (replaces 7564222) |
| 2 | Plug | 7563042 (replaces 8123721) |
| 6 | Gasket | 92150435 (replaces 8124141) |
| 6 | Seal | 4161162 (replaces 8326712) |
| 7 | Bushing | 7515208 |
| 8 | Bushing | 7561228 |
| 9 | Nipple | 9312802 |
| 10 | Nipple | 7523038 |
| 11 | Nipple | 8359937 |
| 12 | Nipple | 7522477 |
| 12A | Nipple | 9116088 |
| 13 | Gasket | 7584436 (replaces 7515885) |
| 13 | Gasket | 7584436 |
| 14 | Screw | 8125197 |
| 15 | Screw | 8125205 |
| 16 | Lifting eye | 7504392 |
| 17 | Screw | 7985930 (replaces 8019903) |
| 17 | Screw | 8019895 |
| 18 | Flange | 9358177 |
| 19 | Gasket | 7507973 (replaces 8357485) |
| 19 | Gasket | 7507973 |
| 20 | Stud | 8005928 |
| 20 | Screw | 8125023 |
| 21 | Stud | 8005936 |
| 21 | Stud | 8005910 |
| 29 | Vaccum hose | 9136243 |
| 30 | Tube | 8509002 |
| 31 | Manifold | 8510091 |
| 32 | Thermostat | 7519416 |
| 33 | Positive crankcase ventilation valve | 9189564 (replaces 7521313) |
| 34 | Hose | 8364416 |
| 36 | Hose | 7514375 |
| 36 | Hose | 7514383 |
| 37 | Nipple | 7487556 |
| 38 | Plug | 8335614 |
| 38 | Plug | 8335614 (replaces 8360463) |
| 39 | Temperature sensor | 9357021 |
| 40 | Seal | 4443883 (replaces 8977373) |
| 40 | Seal | 4443883 (replaces 8981979) |
