Saab 900 1994-1998 Inlet manifold 4-cylinder

Group 2 Engine, section 1080

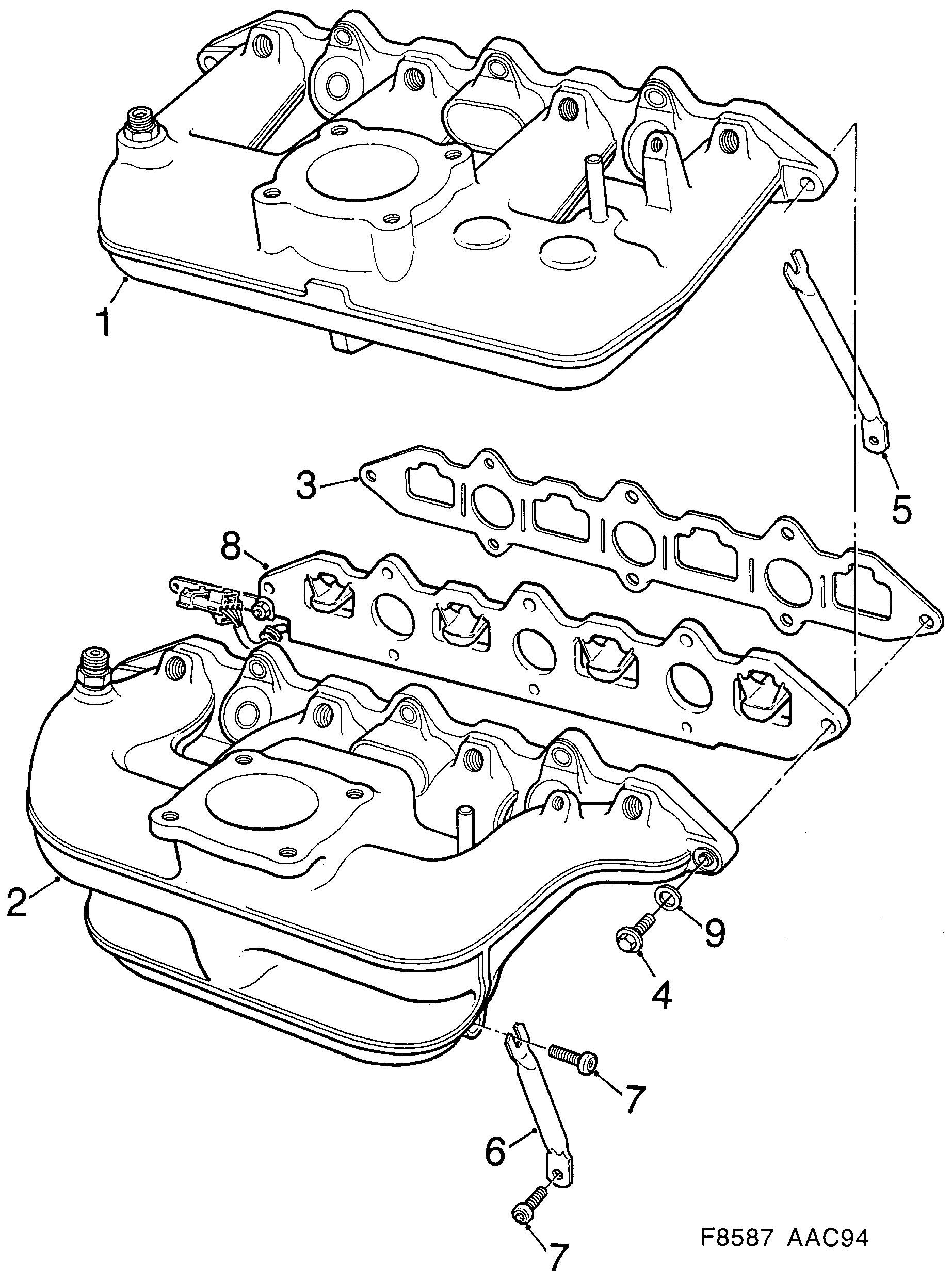

Saab 900 Inlet manifold 4-cylinder diagram
PosArticlePart No.
1Intake manifold9165952
2Intake manifold30551958 (replaces 9165945)
3Gasket9138884
4Screw7970015
4Screw11900368 (replaces 4087805)
4Screw11900368 (replaces 7978224)
5Brace9148768
6Brace9148776
6Brace9166711
7Screw7978075 (replaces 8059768)
7Screw92150012 (replaces 7978182)
8Intake air heat plate9148065
8Intake air heat plate30556715 (replaces 9166000)
9Washer92153033 (replaces 8029985)
