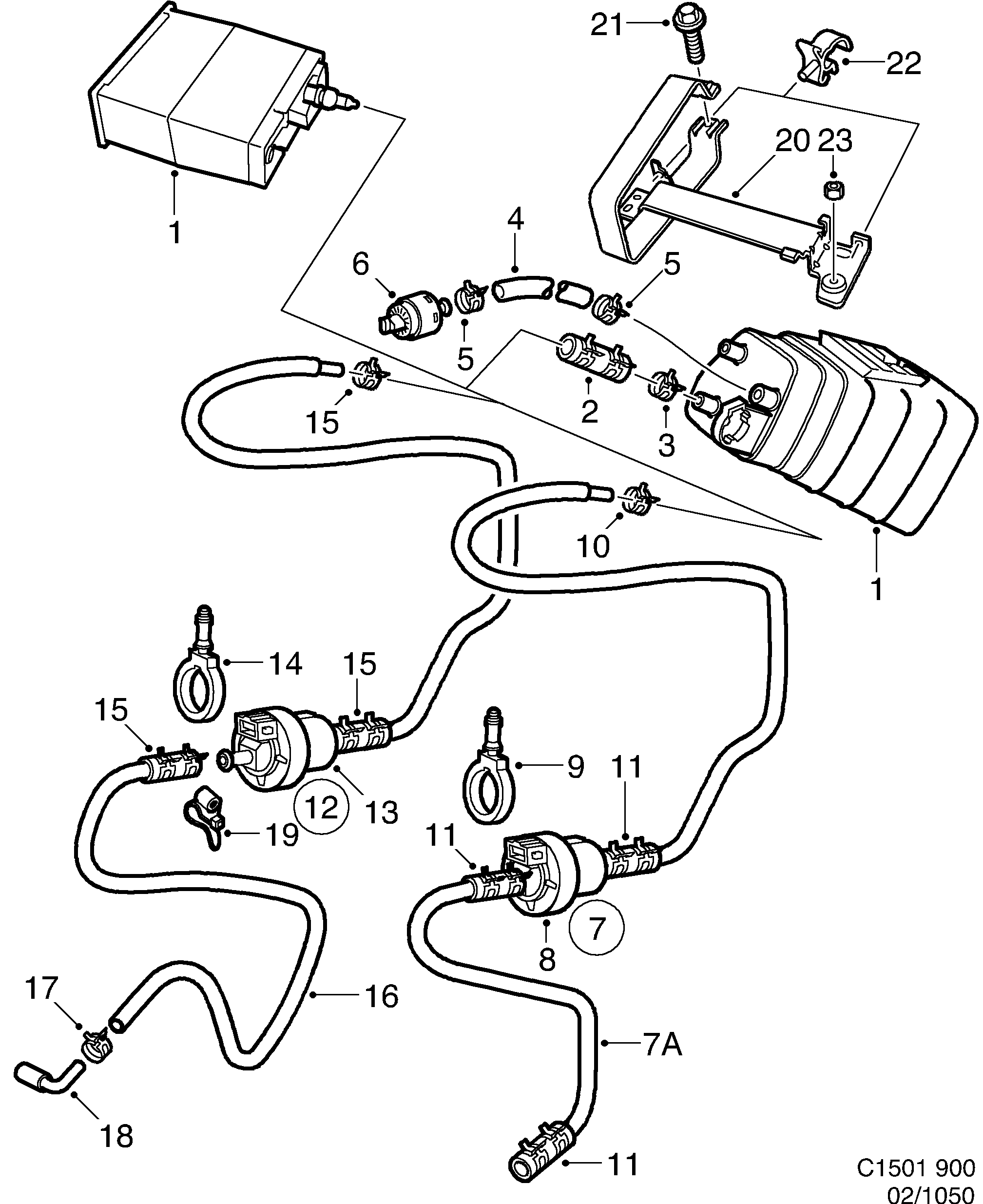

Group 2 Engine, section 1050
| Pos | Article | Part No. |
|---|---|---|
| 1 | Charcoal canister | 5326954 (replaces 4226601) |
| 1 | Evaporative emission canister | 4445821 |
| 1 | Evaporative emission canister | 4727343 |
| 2 | Hose | 7539349 |
| 3 | Hose clamp | 7973522 |
| 3 | Hose clamp | 8332587 |
| 4 | Hose | 4445474 |
| 4 | Hose | 4396701 |
| 4 | Hose | 4444816 |
| 5 | Hose clamp | 7974009 |
| 6 | Shut-off valve | 4899811 (replaces 4444824) |
| 6 | Shut-off valve | 4899811 |
| 7 | Vent hose | 4227005 |
| 7 | Vent hose | 4751566 |
| 7A | Vent hose | 4227914 |
| 8 | EVAP canister purge valve | 4442471 |
| 9 | Mounting ring | 4228029 |
| 10 | Hose clamp | 90530642 (replaces 7977697) |
| 12 | Vent hose | 4395968 |
| 13 | EVAP canister purge valve | 4442489 |
| 16 | Hose | 4227906 |
| 18 | Hose | 9385121 |
| 19 | Tie strap | 7984750 |
| 20 | Bracket | 4727350 |
| 21 | Screw | 11900355 (replaces 7978117) |
| 22 | Clip | 92152339 (replaces 4942538) |
| 23 | Lock nut | 92150265 (replaces 8073512) |
