Saab 9-5 (9600) 1998-2006 Climate control Heater

Group 9 Accessories, section 680

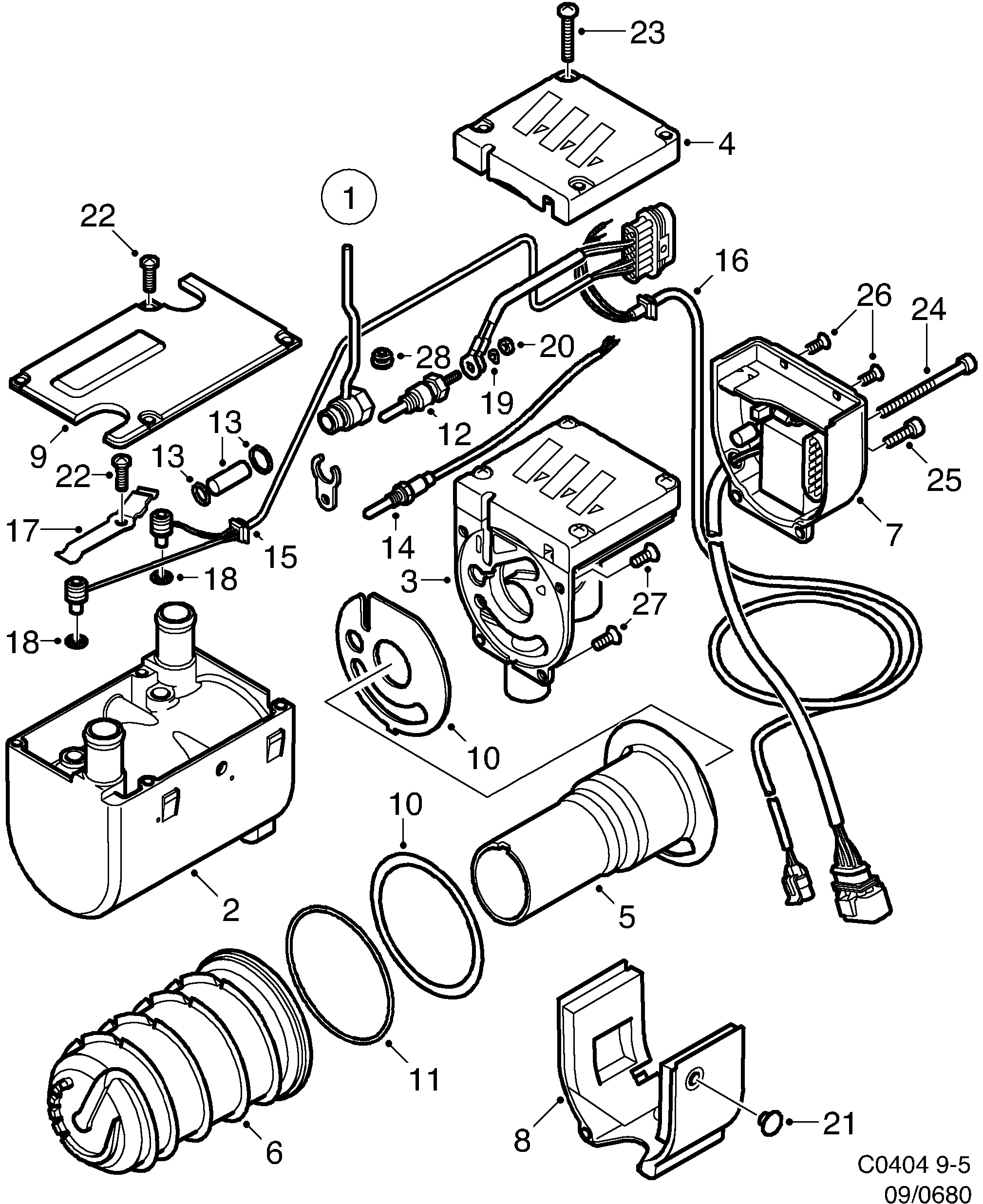

Saab 9-5 (9600) Climate control Heater diagram

Pos	Article	Part No.
1	Heater	400106795
2	Casing	400128195
3	Fan	400128203
4	Cover	400128211
5	Burner	400128229
6	Heat exchanger	400128237
7	Control unit	400128245
8	Cover	400128252
9	Cover	400128260
10	Gasket	93173004 (replaces 400128278)
10	Gasket	93173004 (replaces 5463294)
11	O-ring	90541155 (replaces 400128286)
11	O-ring	90541155
12	Glow plug	400128294
13	Liner	400128302
14	Flame indicator	400128310
15	Cable harness	400128328
16	Cable harness	400128336
17	Brace	400128344
18	O-ring	93173067 (replaces 4967170)
19	Spring washer	5190921
20	Nut	5190939
21	Cover	400128351
22	Screw	93173060 (replaces 5190947)
22	Screw	93173060
23	Screw	93173065 (replaces 4967196)
23	Screw	93173065
24	Screw	93173062 (replaces 4967204)
24	Screw	93173062
25	Screw	93173064 (replaces 4967212)
25	Screw	93173064
26	Screw	93173063 (replaces 4967220)
26	Screw	93173063
27	Screw	93173061 (replaces 5190954)
27	Screw	93173061
28	Grommet	4967436
