Saab 9-5 (9600) 1998-2010 Climate control Branching cable kit

Group 9 Accessories, section 650

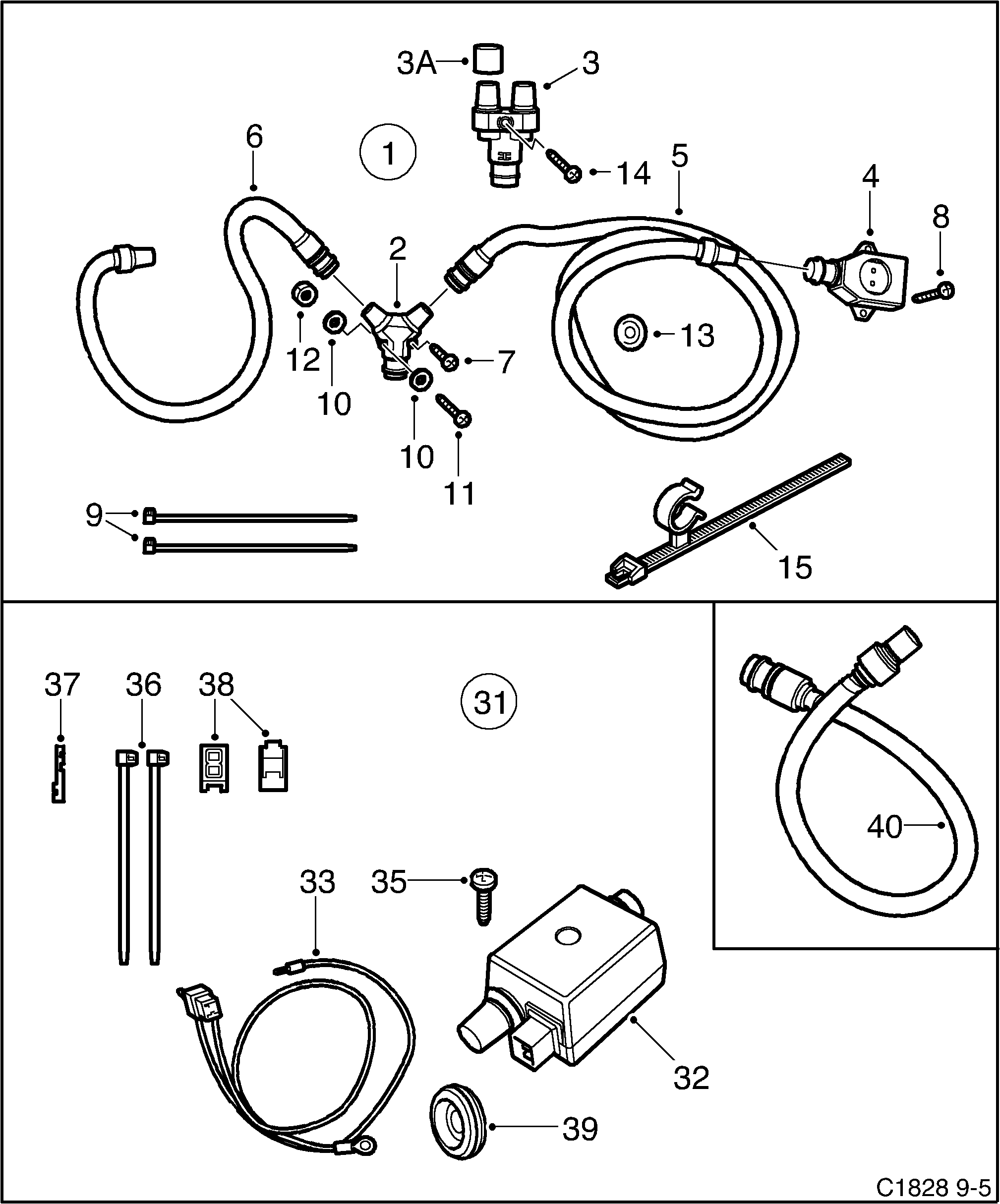

Saab 9-5 (9600) Climate control Branching cable kit diagram

Pos	Article	Part No.
1	Branching cable kit	32026602 (replaces 400107181)
1	Branching cable kit	32026602 (replaces 400126348)
1	Branching cable kit	32026602 (replaces 400127866)
1	Branching cable kit	32026602 (replaces 400130597)
1	Branching cable kit	32026602 (replaces 400132270)
1	Branching cable kit	32026602
2	Branch contact	12794398 (replaces 260274006)
3	Branch contact	12794398 (replaces 400127833)
3A	Protecting cap	400130902
4	Switch	12794399 (replaces 260271002)
5	Junction cable	400107249
5	Junction cable	12797678 (replaces 400128807)
6	Junction cable	400107777
6	Junction cable	400126439
6	Junction cable	400128450
7	Screw	32026216 (replaces 7922404)
8	Screw	12759978
9	Tie strap	11900513 (replaces 92150191)
10	Washer	7973894
10	Washer	8029944
11	Screw	93169430 (replaces 8059461)
12	Lock nut	8074270
13	Cable grommet	400107264
13	Cable grommet	5125349
14	Screw	32026215 (replaces 7986557)
14	Screw	32026215
15	Clamp	7399652
31	Timer kit	32026603 (replaces 400107199)
31	Timer kit	32026603 (replaces 400128112)
31	Timer kit	32026603 (replaces 400130878)
31	Timer kit	32026603
32	Relay	260278007
32	Relay	400130886
33	Cable harness	400128120 (replaces 400107272)
33	Cable harness	400128120
33	Cable harness	400130894
35	Screw	32026216
37	Cable terminal	12789794 (replaces 9120684)
37	Cable terminal	9121112
38	Cable joint	9560012
39	Bushing	7961329
40	Junction cable	400128443
