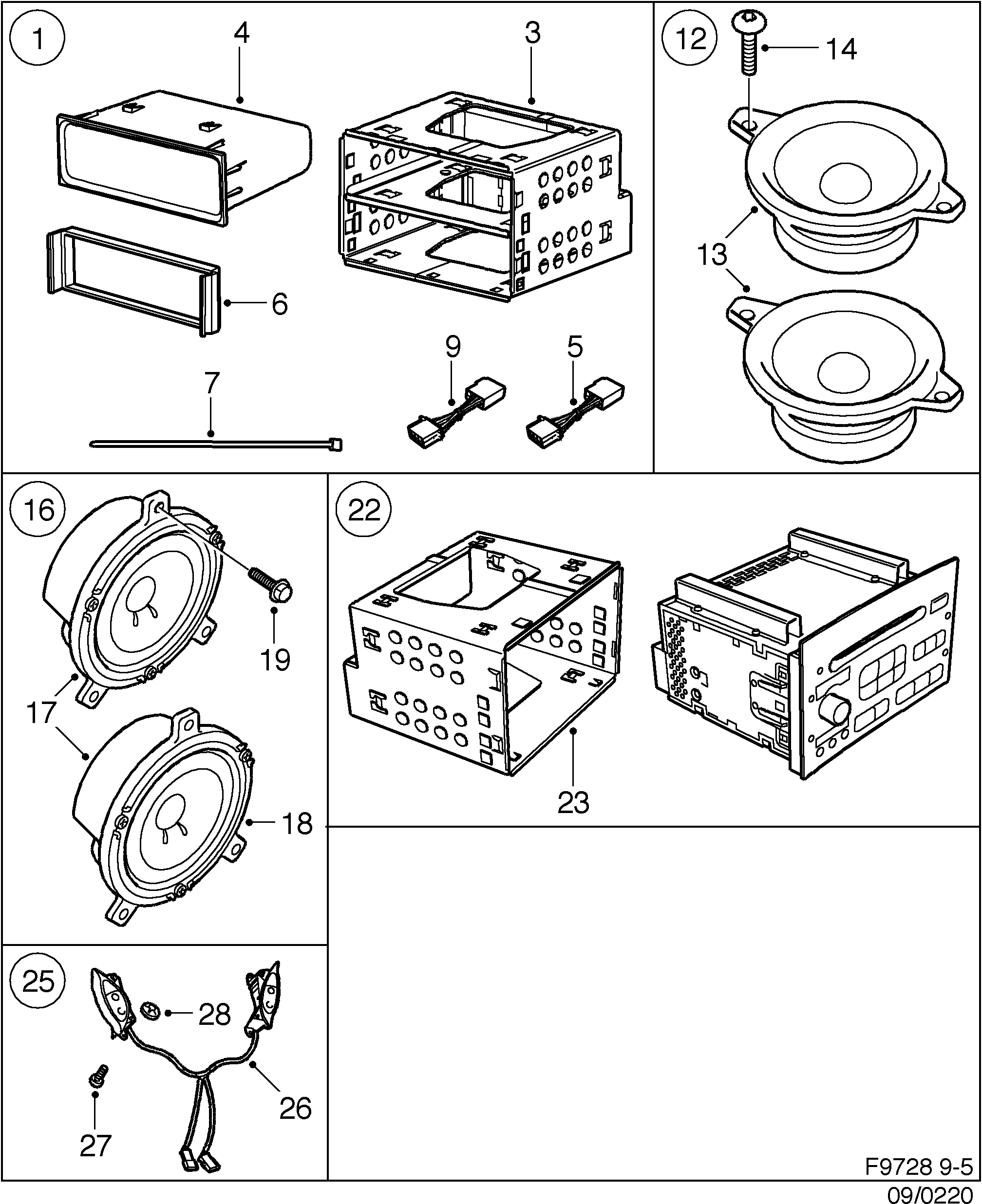

Group 9 Accessories, section 220
| Pos | Article | Part No. |
|---|---|---|
| 1 | Installation kit | 400106662 |
| 3 | Radio basket | 400107868 (replaces 4711578) |
| 4 | Storage tray | 400108288 (replaces 4711586) |
| 5 | Cable harness | 400106720 |
| 6 | Decor frame | 400107850 |
| 7 | Tie strap | 7971864 |
| 9 | Cable harness | 400109617 |
| 12 | Loudspeaker kit | 400106753 |
| 13 | Loudspeaker | 4616850 |
| 14 | Screw | 92153219 (replaces 7922354) |
| 16 | Loudspeaker kit | 400106746 |
| 17 | Loudspeaker | 4616934 |
| 18 | Mounting frame | 4714903 |
| 19 | Screw | 7978455 |
| 19 | Screw | 11900355 (replaces 7978117) |
| 22 | Radio | 400109096 |
| 22 | Radio | 12849454 (replaces 12771700) |
| 22 | Radio, CD player | 12849454 (replaces 12778048) |
| 22 | Radio, CD player | 12849454 (replaces 12784325) |
| 22 | Radio, CD player | 12842181 (replaces 12778049) |
| 23 | Basket | 4616009 |
| 25 | Steering wheel controls for Audio system | 400110904 |
| 26 | Switch | 5359625 (replaces 4616025) |
| 27 | Screw | 7982333 |
| 28 | Lock washer | 7971518 |
| 25 | Steering wheel controls for Audio system | 5359971 |
| 25 | Switch | 12758031 |
| 25 | Switch | 12758032 |
| 25 | Switch | 12758033 |
| 25 | Switch | 12758034 |
