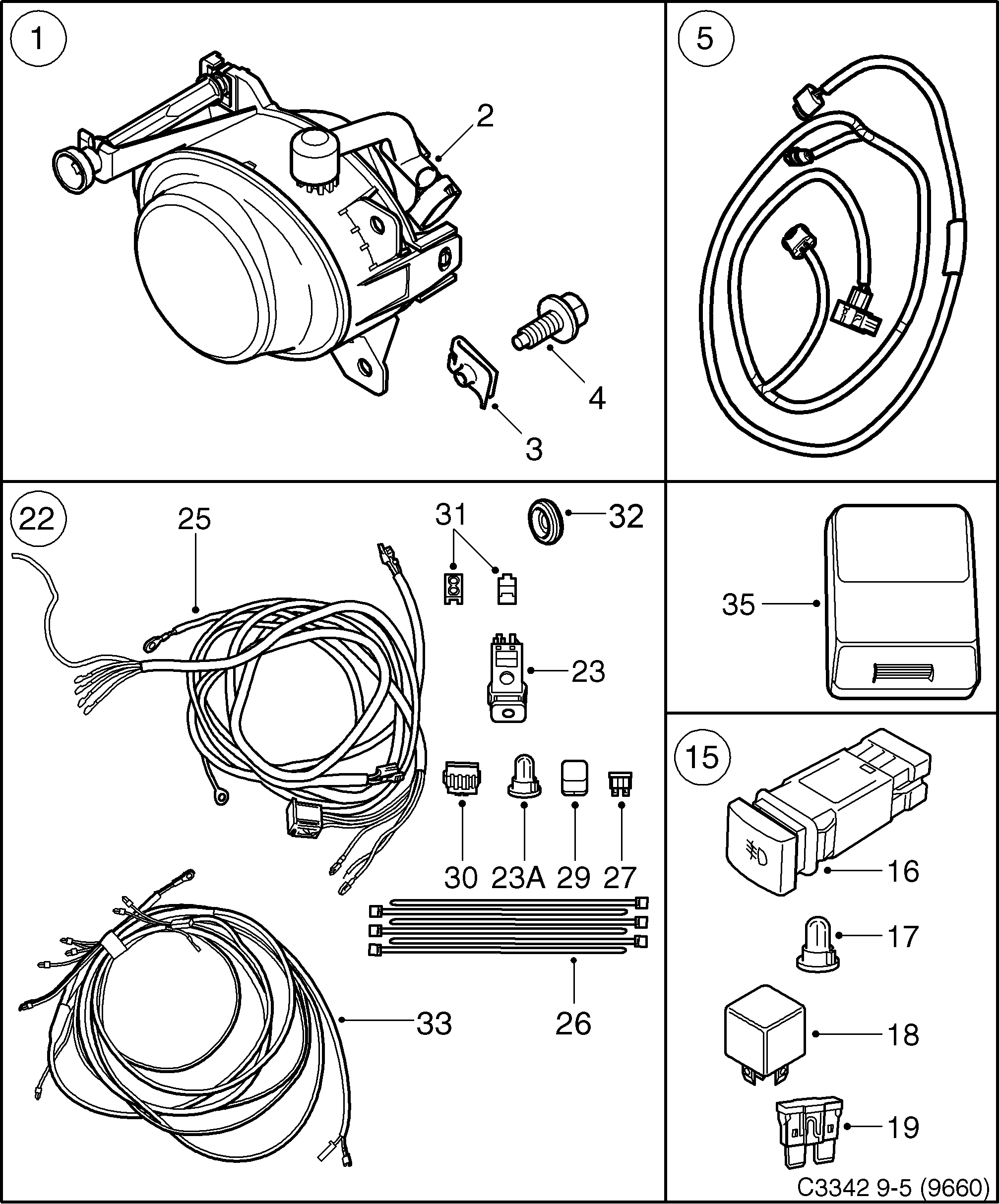

Group 9 Accessories, section 164
| Pos | Article | Part No. |
|---|---|---|
| 1 | Front fog lamp | 32025631 |
| 2 | Front fog lamp | 12777400 (replaces 12755354) |
| 2 | Front fog lamp | 12777401 (replaces 12762584) |
| 3 | Clip nut | 11094111 |
| 4 | Hexagon screw | 92150086 |
| 5 | Cable harness | 12765946 |
| 5 | Cable harness | 12778816 |
| 15 | Supplementary kit, switch | 400106209 |
| 16 | Switch | 12768423 (replaces 30550915) |
| 17 | Bulb | 4466439 (replaces 4466421) |
| 18 | Relay | 4947115 (replaces 4224192) |
| 19 | Fuse | 7974645 |
| 22 | Installation kit, extra light | 32025797 |
| 23 | Switch | 4519641 |
| 23A | Bulb | 4466439 |
| 25 | Cable harness | 400131454 |
| 26 | Tie strap | 11900513 (replaces 92150191) |
| 27 | Fuse | 24426656 |
| 29 | Relay | 8533176 |
| 30 | Connector housing | 12764801 (replaces 30520631) |
| 31 | Cable joint | 9560012 |
| 32 | Bushing | 7961329 |
| 33 | Cable | 32025798 |
| 35 | Bulb kit | 93199399 (replaces 400106258) |
| 35 | Bulb kit | 400112405 |
| 35 | Bulb kit | 400106241 |
| 35 | Bulb kit | 400112413 |
| 35 | Bulb kit | 93199399 |
| 35 | Bulb kit | 93199414 |
