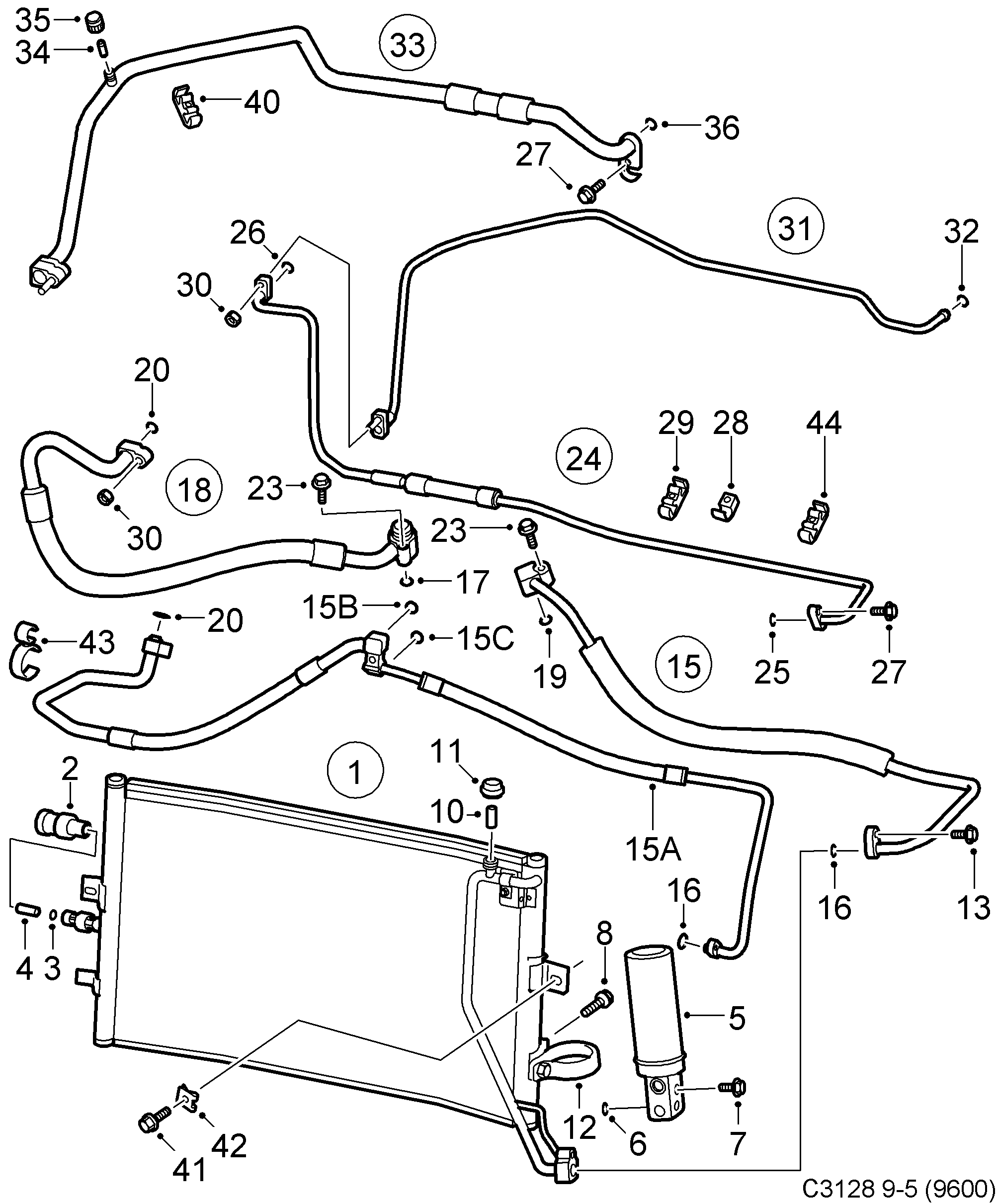

Saab 9-5 (9600) 2002-2010 AC condenser

Group 8c Heating and ventilation, section 290

Pos	Article	Part No.
1	Condenser	5048350 (replaces 5046990)
1	Condenser	5048350
1	Condenser	12773283 (replaces 5048491)
1	Condenser	12773283
1	Condenser	12783881
2	Charge Air Absolute Pressure Sensor	4868360
2	Charge Air Absolute Pressure Sensor	9131721 (replaces 5048509)
2	Charge Air Absolute Pressure Sensor	9131721
3	O-ring	4759064
3	O-ring	90381761
4	Valve	4759056
4	Valve	12844088
5	Reservoir	4759072
5	Receiver dryer	12844081
6	O-ring	4542346
6	O-ring	90381763
7	Screw	4759049
7	Screw	12844083
8	Screw	4868998
8	Screw	12844085
8	Screw	12844082
8	Screw	12844084
10	Valve	4542353
10	Valve	12844086
11	Plug	4383956
11	Cap	12844087
12	Bracket	5047584
12	Bracket	12844080
13	Screw	92153216 (replaces 7982325)
15	Hose assembly	5047048
15	Hose assembly	5047063
15	Hose assembly	5047147
15	Hose	5047816
16	O-ring	4757084
19	O-ring	4756110
15A	Hose	12756728
15B	O-ring	24436645
15C	O-ring	24436646
20	O-ring	4757092
18	Hose assembly	5047030
18	Hose assembly	5047055
18	Hose assembly	5047154
18	Hose assembly	5048681
18	Hose	5047808
18	Hose assembly	5048715
17	O-ring	30541941 (replaces 4318036)
23	Screw	11900368 (replaces 7978224)
24	Tube	5047006
25	O-ring	4757076
26	O-ring	4869186
27	Screw	92153216
28	Clip	4633202
29	Clip	4633715
30	Nut	11900451 (replaces 7977929)
31	Hose	5047840
33	Hose	5048376 (replaces 5047832)
33	Hose	5048376
34	Valve	4758132
35	Plug	4758140
36	O-ring	4756128
40	Clip	92152158 (replaces 4633210)
41	Screw	11900355 (replaces 92150003)
42	Clip	8267098
42	Clip nut	92152127
43	Spacer clip	4869194
44	Clip	92152158
