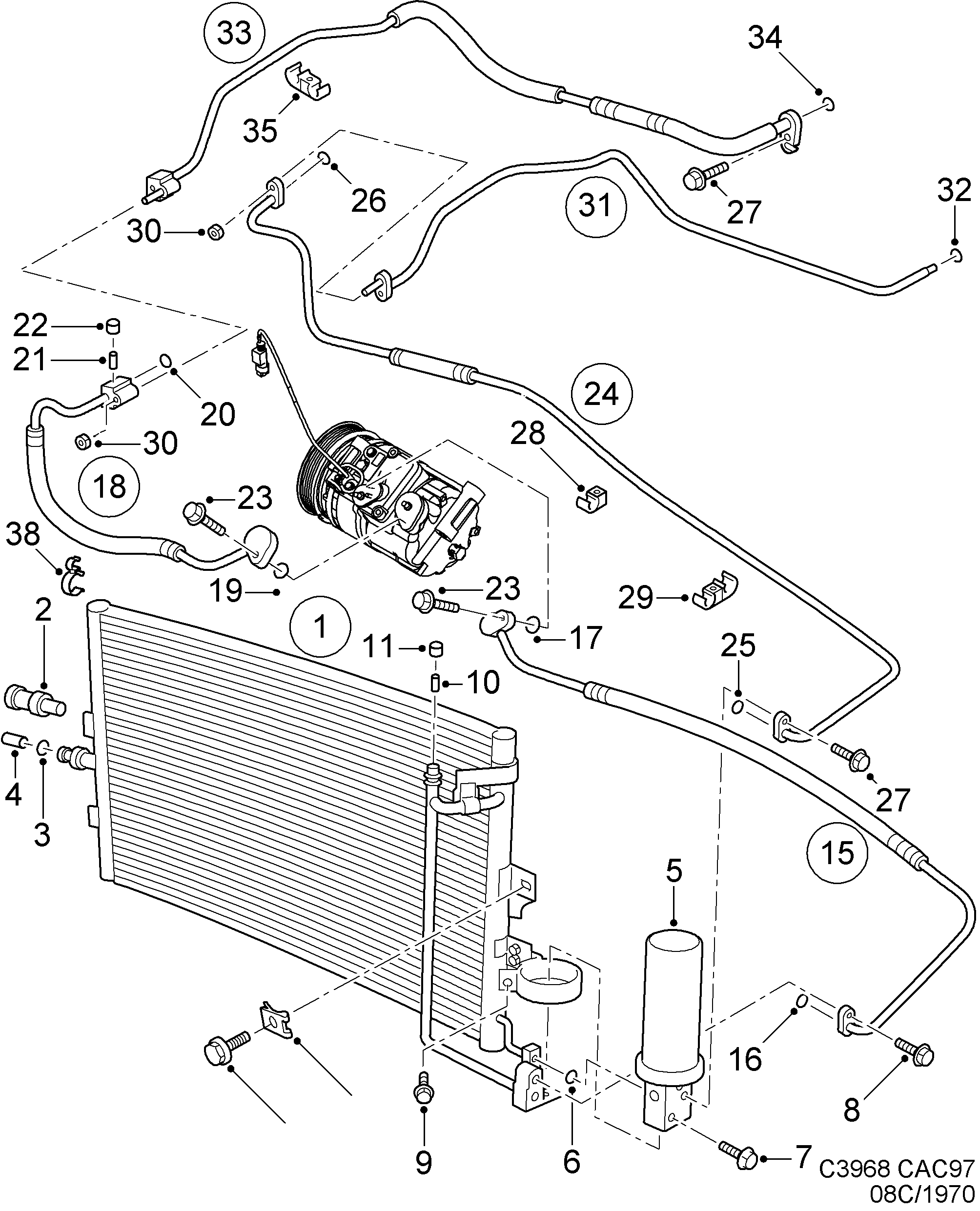

Group 8c Heating and ventilation, section 280
| Pos | Article | Part No. |
|---|---|---|
| 1 | Condenser | 4541215 |
| 2 | Charge Air Absolute Pressure Sensor | 4868360 |
| 3 | O-ring | 4759064 |
| 4 | Valve | 4759056 |
| 5 | Reservoir | 4759072 |
| 6 | O-ring | 4542346 |
| 7 | Screw | 4759049 |
| 8 | Screw | 92153216 (replaces 7982325) |
| 9 | Screw | 4542361 |
| 10 | Valve | 4542353 |
| 11 | Plug | 4383956 |
| 15 | Hose assembly | 4542429 |
| 15 | Hose assembly | 4542437 |
| 16 | O-ring | 4757084 |
| 17 | O-ring | 30541941 (replaces 4318036) |
| 18 | Hose assembly | 4542197 |
| 18 | Hose assembly | 4542403 |
| 19 | O-ring | 4756110 |
| 20 | O-ring | 4757092 |
| 21 | Valve | 4758132 |
| 22 | Plug | 4758140 |
| 23 | Screw | 11900368 (replaces 7978224) |
| 24 | Tube | 4541264 |
| 25 | O-ring | 4757076 |
| 26 | O-ring | 4869186 |
| 28 | Clip | 4633202 |
| 29 | Clip | 4633715 |
| 30 | Nut | 11900451 (replaces 7977929) |
| 31 | Tube | 4869301 (replaces 4541256) |
| 31 | Tube | 4869301 |
| 33 | Hose | 4869293 (replaces 4541249) |
| 33 | Hose | 4869293 |
| 34 | O-ring | 4756128 |
| 35 | Clip | 92152158 (replaces 4633210) |
| 36 | Screw | 92153150 (replaces 7976947) |
| 37 | Clip | 8267098 |
| 38 | Spacer clip | 4869194 |
| Edge protection moulding | 4867008 |
