Saab 9-5 (9600) 1998-2010 AC compressor

Group 8c Heating and ventilation, section 250

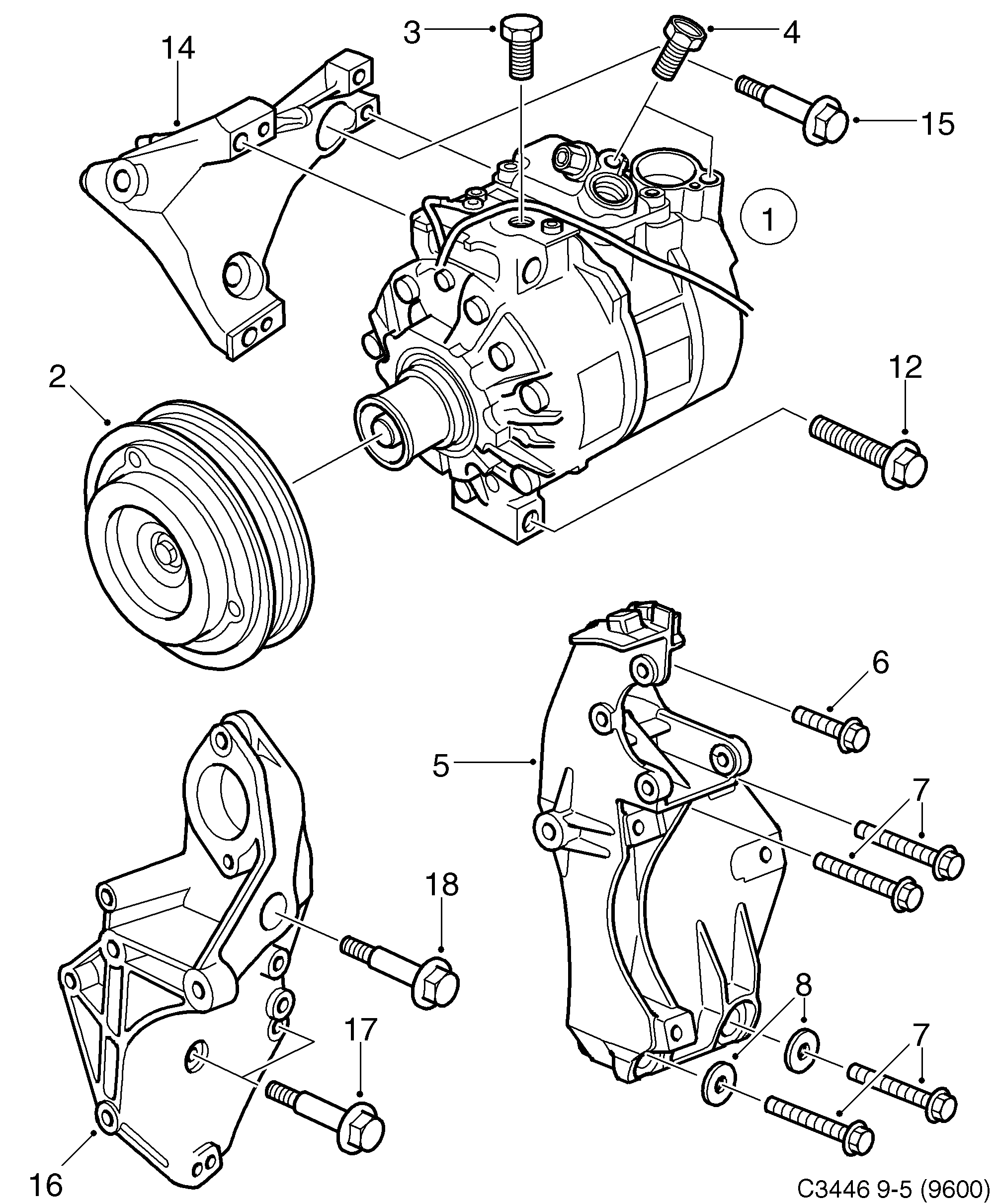

Saab 9-5 (9600) AC compressor diagram

Pos	Article	Part No.
1	Compressor	5048095 (replaces 4541207)
1	Compressor	5048095 (replaces 4869483)
1	Compressor	5048095 (replaces 5046891)
1	Compressor	5048095
1	Compressor	12758380 (replaces 5048368)
1	Compressor	12758380
1	Compressor	12756725
2	Clutch	5047642 (replaces 4756888)
2	Clutch	5047642
2	Clutch	5048475
3	Plug	4756896
3	Plug	93182417 (replaces 5048483)
4	Hexagon screw	5048608
5	Bracket	55197247
6	Screw	55558295
7	Screw	55558297
8	Washer	12855192
12	Hexagon screw	7982960
12	Screw	24447549
12	Screw	7983158
12	Screw	7982630
14	Bracket	4670717
15	Screw	55557006
15	Hexagon screw	11900373
16	Bracket	5194774 (replaces 4726857)
16	Bracket	5194774 (replaces 4750329)
16	Bracket	5194774
17	Screw	92153206 (replaces 7978307)
17	Screw	7978299
18	Screw	92150036 (replaces 7982572)
