Saab 9-5 (9600) 2005-2010 Climate unit Part 2

Group 8c Heating and ventilation, section 210

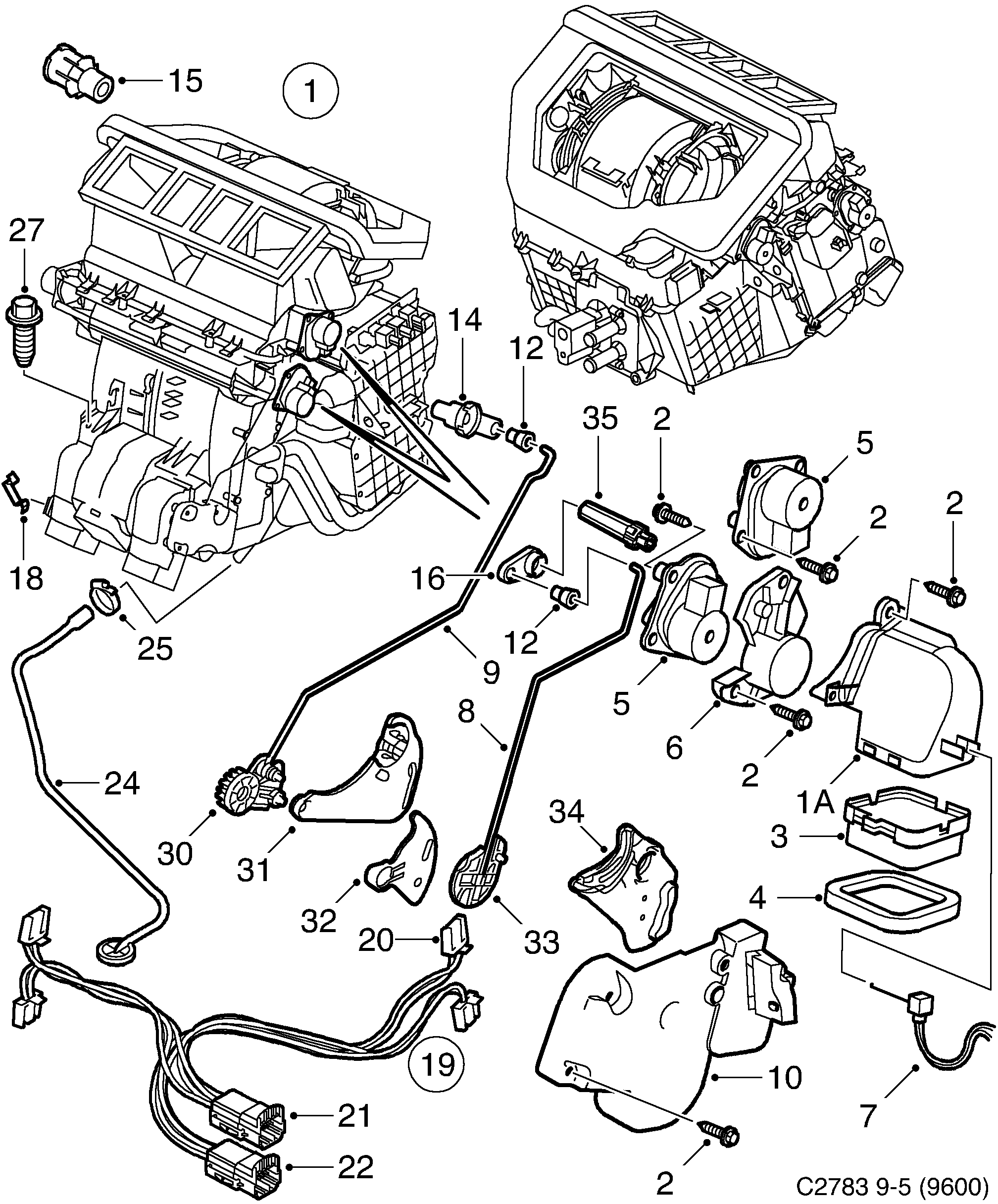

Saab 9-5 (9600) Climate unit Part 2 diagram

Pos	Article	Part No.
1A	Outlet	4756268
1A	Outlet	4756276
1A	Outlet	4757183
1A	Outlet	4757191
2	Screw	4633848
3	Pipe end	4756813
4	Seal	4756250
5	Electrical motor	5048988
6	Engine bracket	5048996
6	Engine bracket	5049002
7	Mixed air temperature	5049010
8	Link arm	5334537
9	Link arm	5334545
10	Cover	5338264
10	Cover	5334628
12	Clip	4757217
14	Lever	5049093
14	Lever	5049101
15	Bearing	4869244
16	Lever	5049135
18	Clip	4633905
19	Cable harness	4757761
19	Cable harness	4757233
20	Connector housing	4758785
21	Connector housing	12756330 (replaces 4410528)
22	Connector housing	4587903
24	Draining hose	12780081 (replaces 5338348)
24	Hose	12780081
25	Hose clamp	7985682
27	Hexagon screw	7978679
30	Lever	5333984
30	Lever	5334578
31	Cam	5338256
31	Cam	5334586
32	Arm	5333976
32	Arm	5334560
33	Companion flange	5338272
33	Companion flange	5334602
34	Cam	5334008
34	Cam	5334594
35	Shaft	12765864
