Saab 9-5 (9600) 2002-2005 Climate unit Part 2

Group 8c Heating and ventilation, section 200

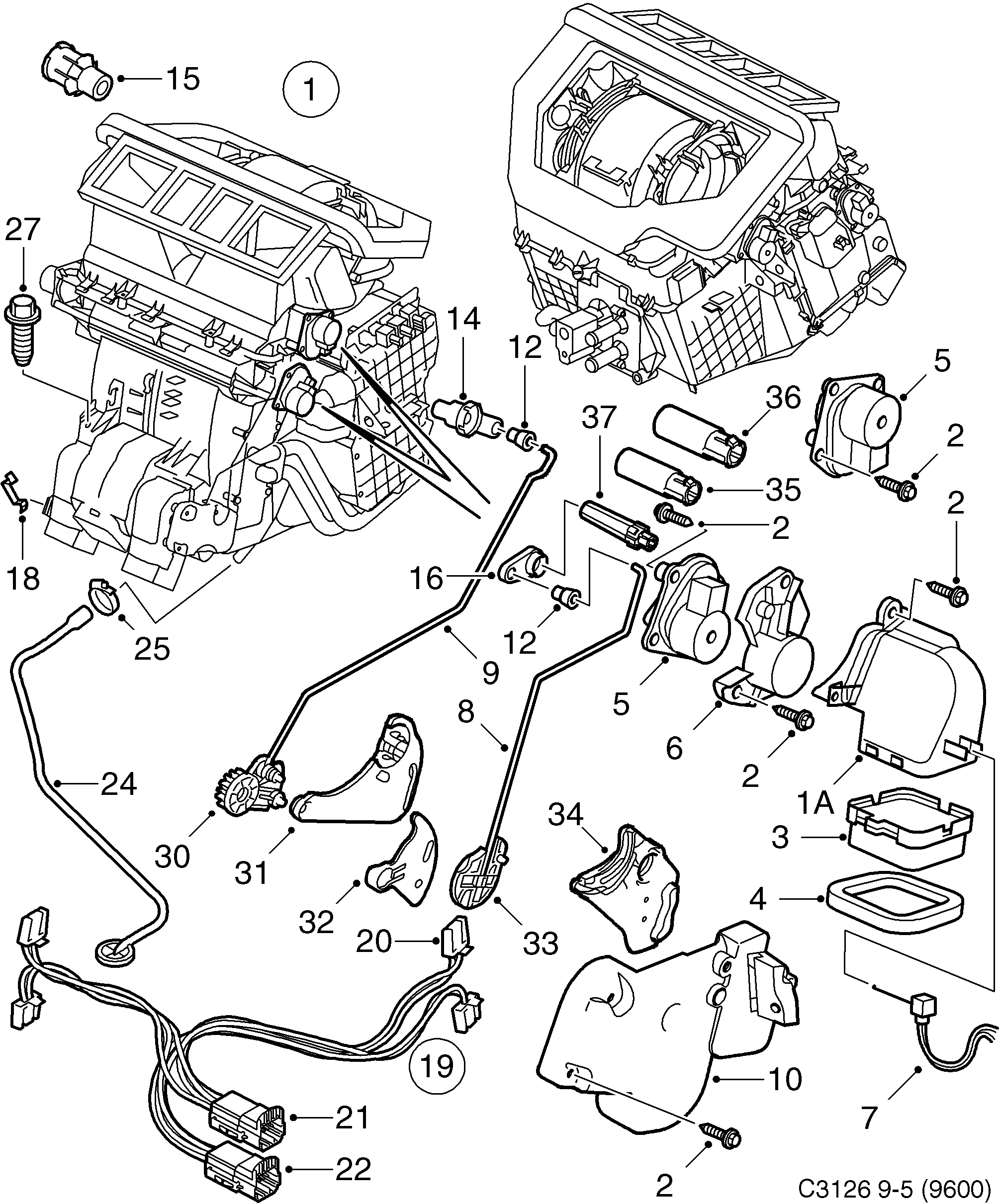

Saab 9-5 (9600) Climate unit Part 2 diagram

Pos	Article	Part No.
1A	Outlet	4756268
1A	Outlet	4756276
2	Screw	4633848
3	Pipe end	4756813
4	Seal	4756250
5	Electrical motor	5172580
5	Electrical motor	5048988
6	Engine bracket	4757860
6	Engine bracket	5048996
6	Engine bracket	4757878
6	Engine bracket	5049002
7	Mixed air temperature	4541694
7	Mixed air temperature	5049010
8	Link arm	5334537
9	Link arm	5334545
10	Cover	5338264
12	Clip	4757217
	Lever	4757456
14	Lever	5334693
14	Lever	5049093
15	Bearing	4869244
16	Lever	5334701
16	Lever	5049135
18	Clip	4633905
19	Cable harness	4757761
20	Connector housing	4758785
21	Connector housing	12756330 (replaces 4410528)
22	Connector housing	4587903
24	Draining hose	12780081 (replaces 5338348)
25	Hose clamp	7985682
27	Hexagon screw	7978679
30	Lever	5333984
31	Cam	5333992
31	Cam	5338256
32	Arm	5333976
33	Companion flange	5338272
34	Cam	5334008
35	Insert sleeve	12765865
36	Insert sleeve	12765867
37	Shaft	12765864
