Saab 9-5 (9600) 1998-2002 Climate unit Part 2

Group 8c Heating and ventilation, section 190

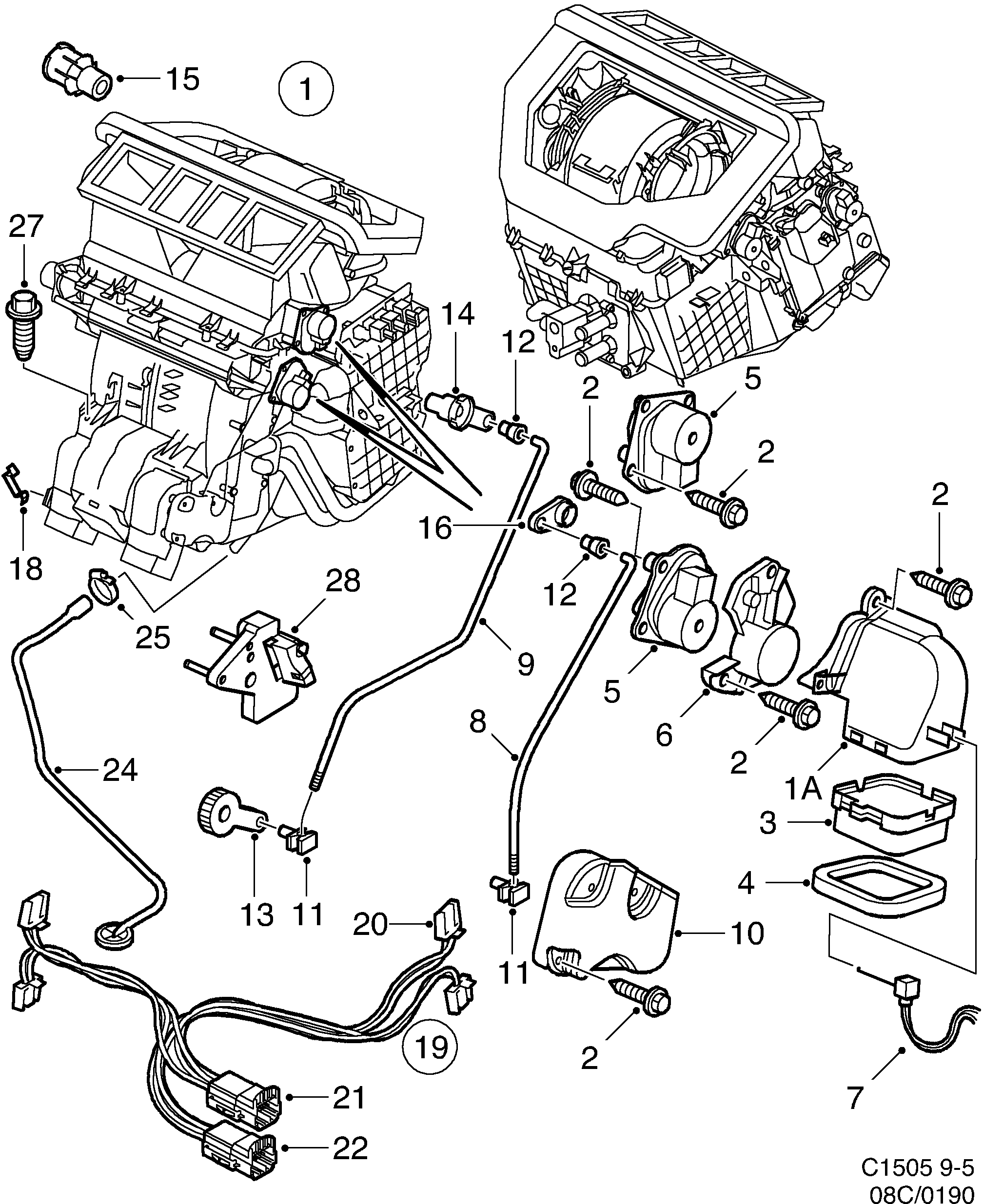

Saab 9-5 (9600) Climate unit Part 2 diagram

Pos	Article	Part No.
1A	Outlet	4756268
1A	Outlet	4756276
1A	Outlet	4757183
1A	Outlet	4757191
2	Screw	4633848
3	Pipe end	4756813
4	Seal	4756250
5	Electrical motor	5172580 (replaces 4541702)
5	Electrical motor	5172580
6	Engine bracket	4757860
6	Engine bracket	4757878
7	Mixed air temperature	4541694
8	Link arm	5334537 (replaces 4633947)
9	Link arm	5334545 (replaces 4633939)
10	Cover	4633954
10	Cover	5334628 (replaces 4633962)
11	Clip	4757209
12	Clip	4757217
13	Lever	4757456
14	Lever	5334693
14	Lever	4869103
15	Bearing	4869244
16	Lever	5334701
18	Clip	4633905
19	Cable harness	4757761
19	Cable harness	4757233
20	Connector housing	4758785
21	Connector housing	12756330 (replaces 4410528)
22	Connector housing	4587903
24	Draining hose	12780081 (replaces 4756581)
24	Draining hose	12780081 (replaces 5338348)
25	Hose clamp	7985682
27	Hexagon screw	7978679
28	Attachment	4868923
28	Attachment	4868931
	Service kit	5334040
