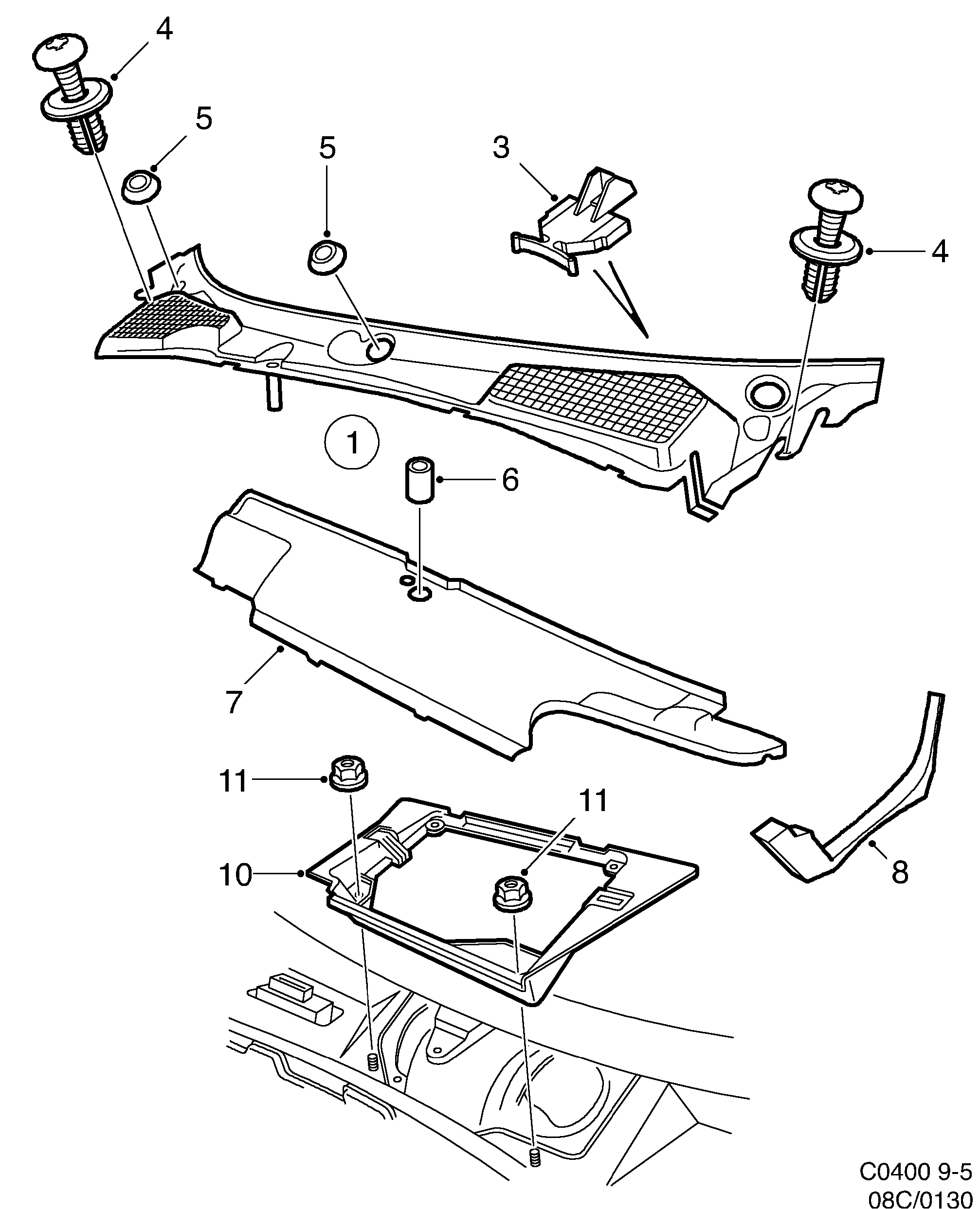

Group 8c Heating and ventilation, section 130
| Pos | Article | Part No. |
|---|---|---|
| 1 | Screen | 12770180 (replaces 4560314) |
| 1 | Screen | 12770181 (replaces 4561148) |
| 1 | Screen | 12770180 (replaces 4916938) |
| 1 | Screen | 12770181 (replaces 4916946) |
| 1 | Screen | 12770180 (replaces 5330832) |
| 1 | Screen | 12770181 (replaces 5330840) |
| 3 | Bracket | 4563409 |
| 4 | Rivet | 4063897 |
| 5 | Rubber bellows | 5335690 (replaces 4562252) |
| 5 | Rubber bellows | 5335690 |
| 6 | Draining hose | 4832291 |
| 7 | Water drain | 4561411 |
| 8 | Seal | 5587779 (replaces 5174511) |
| 8 | Seal | 5587779 |
| 8 | Seal | 5587787 |
| 10 | Water drain | 4541587 |
| 11 | Nut | 12802365 (replaces 4087664) |
| 11 | Hexagon nut | 11089471 (replaces 4345138) |
| 11 | Nut | 11089471 |
