Saab 9-5 (9600) 1999-2010 Parcel shelf

Group 8b Car body, internal, section 560

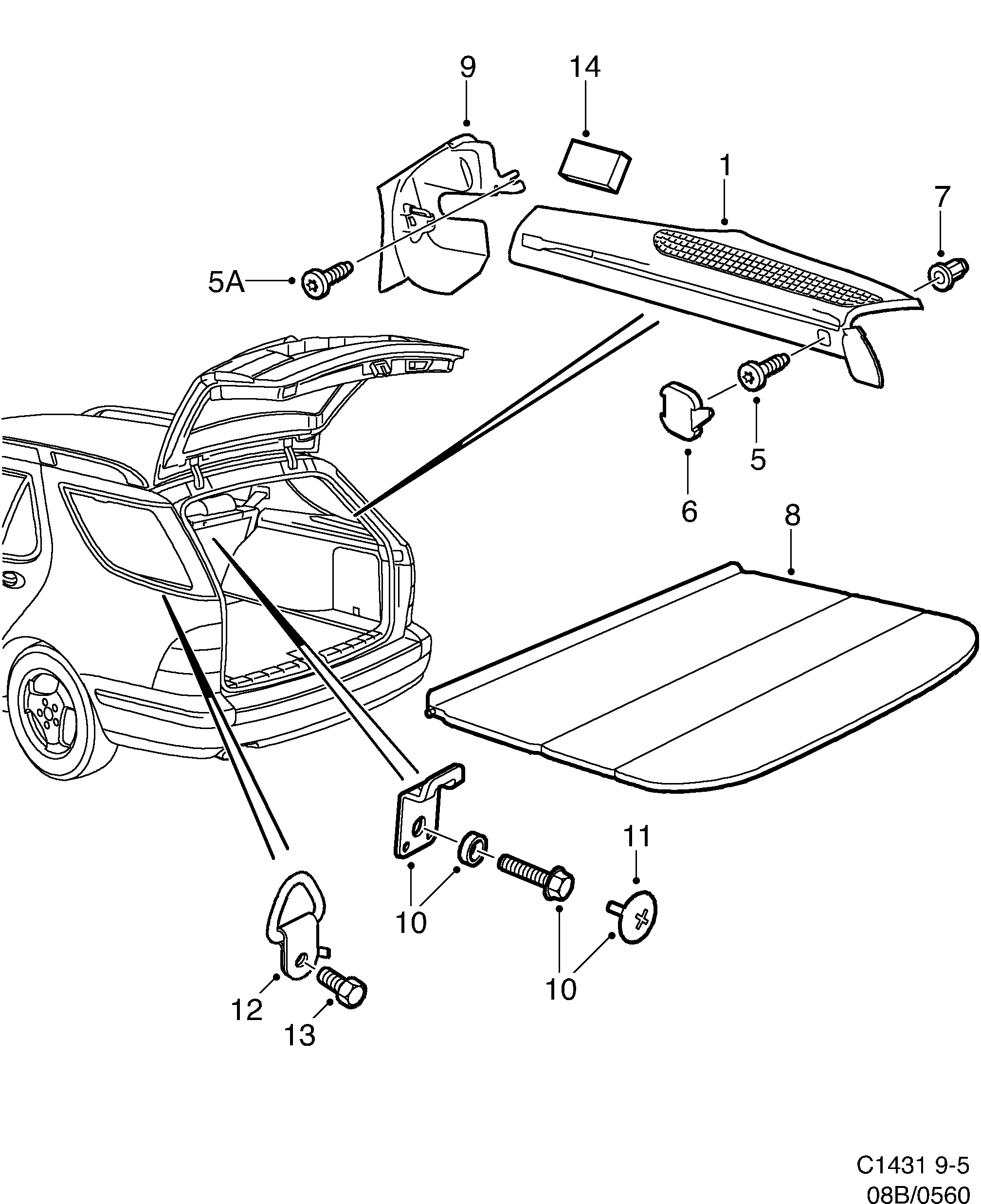

Saab 9-5 (9600) Parcel shelf diagram

Pos	Article	Part No.
1	Support	4821302
1	Support	4821310
1	Support	4821286
1	Support	4821294
1	Support	12757916
1	Support	12757915
5	Screw	92153006 (replaces 7977002)
5	Screw	92152043 (replaces 4087920)
5	Screw	92152043
5	Screw	92151603
5A	Screw	92151888 (replaces 92150087)
5A	Hexagon screw	92151888
6	Cover	5028014
6	Cover	5028006
6	Cover	12757914
7	Rivet nut	9130829 (replaces 7399454)
7	Rivet nut	9130829
8	Parcel shelf	4821336
8	Parcel shelf	4821328
8	Parcel shelf	12757895
9	Cover	5033915
9	Cover	5033923
9	Cover	5033899
9	Cover	12757911
9	Cover	5033907
9	Cover	12757909
10	Child seat mounting	5018544
11	Cover	9591637
12	Child seat mounting	5200910
13	Screw	5200928
13	Screw	5203609
13	Screw	12779007
14	Spacer	5335930
