Saab 9-5 (9600) 1998-2010 Shelf

Group 8b Car body, internal, section 550

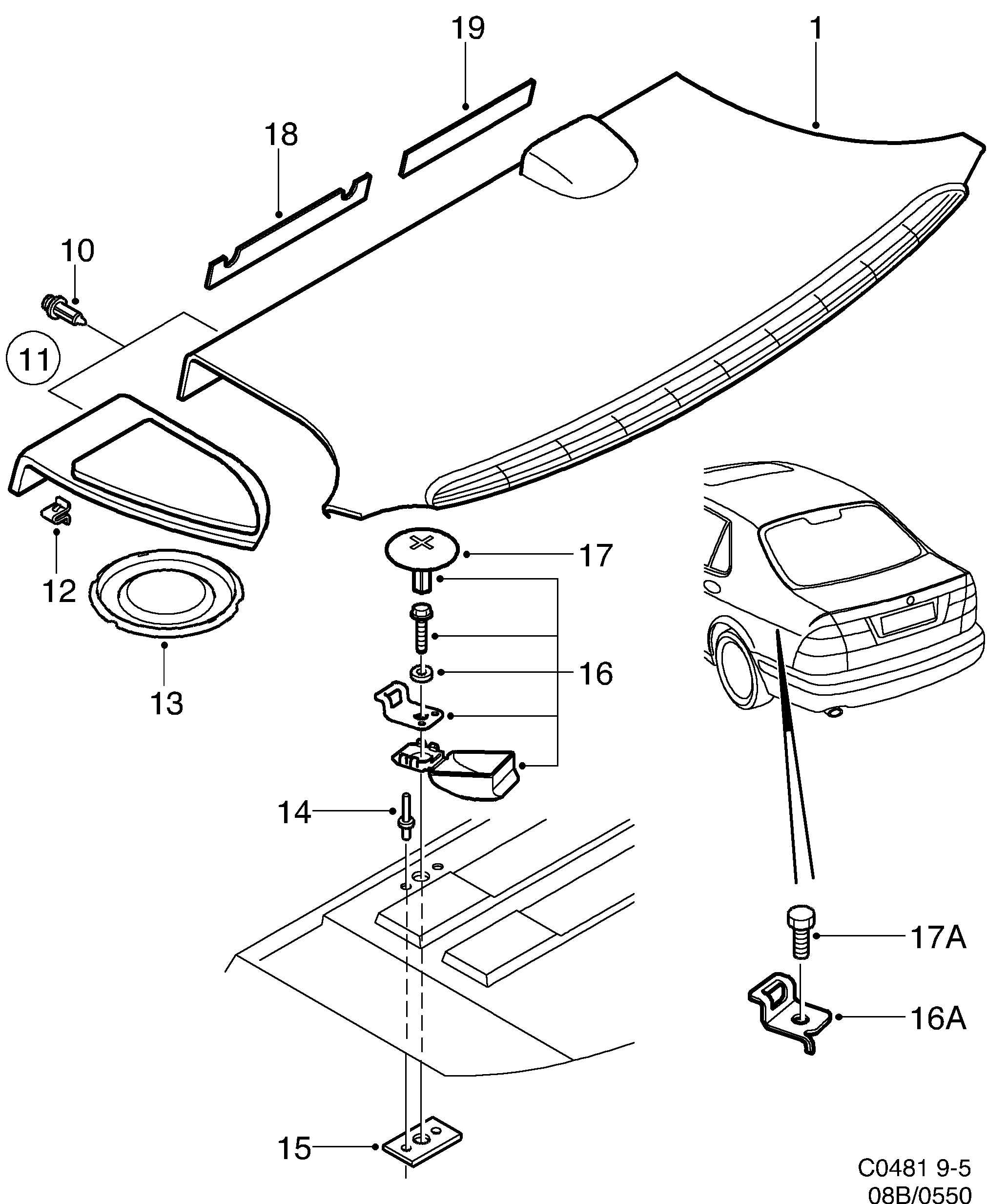

Saab 9-5 (9600) Shelf diagram

Pos	Article	Part No.
1	Parcel shelf	4512760
1	Parcel shelf	12771238
1	Parcel shelf	4512745
1	Parcel shelf	5292875
1	Parcel shelf	12771239
1	Parcel shelf	5292867
10	Rivet	92152011 (replaces 4681565)
10	Clip	92152407
11	Grille, loudspeaker	4744108
11	Grille, loudspeaker	4744124
11	Grille, loudspeaker	5007703
11	Grille, loudspeaker	5007711
11	Grille, loudspeaker	4744090
11	Grille, loudspeaker	4744116
11	Grille, loudspeaker	5007646
11	Grille, loudspeaker	5007653
11	Grille, loudspeaker	12757882
11	Grille, loudspeaker	12757881
12	Clamp	12763576 (replaces 4388757)
13	Plate	4512810
13	Plate	12802170 (replaces 5560768)
14	Blind rivet	92153058 (replaces 92150177)
15	Nut plate	9653502
16	Child seat mounting	5330618
17	Cover	9591637
16A	Child seat mounting	5202486
17A	Screw	5200928
17A	Screw	5203609
17A	Screw	12779007
18	Cover	4888566
18	Cover	4888533
19	Cover	4888558
19	Cover	12757883
19	Cover	4888541
