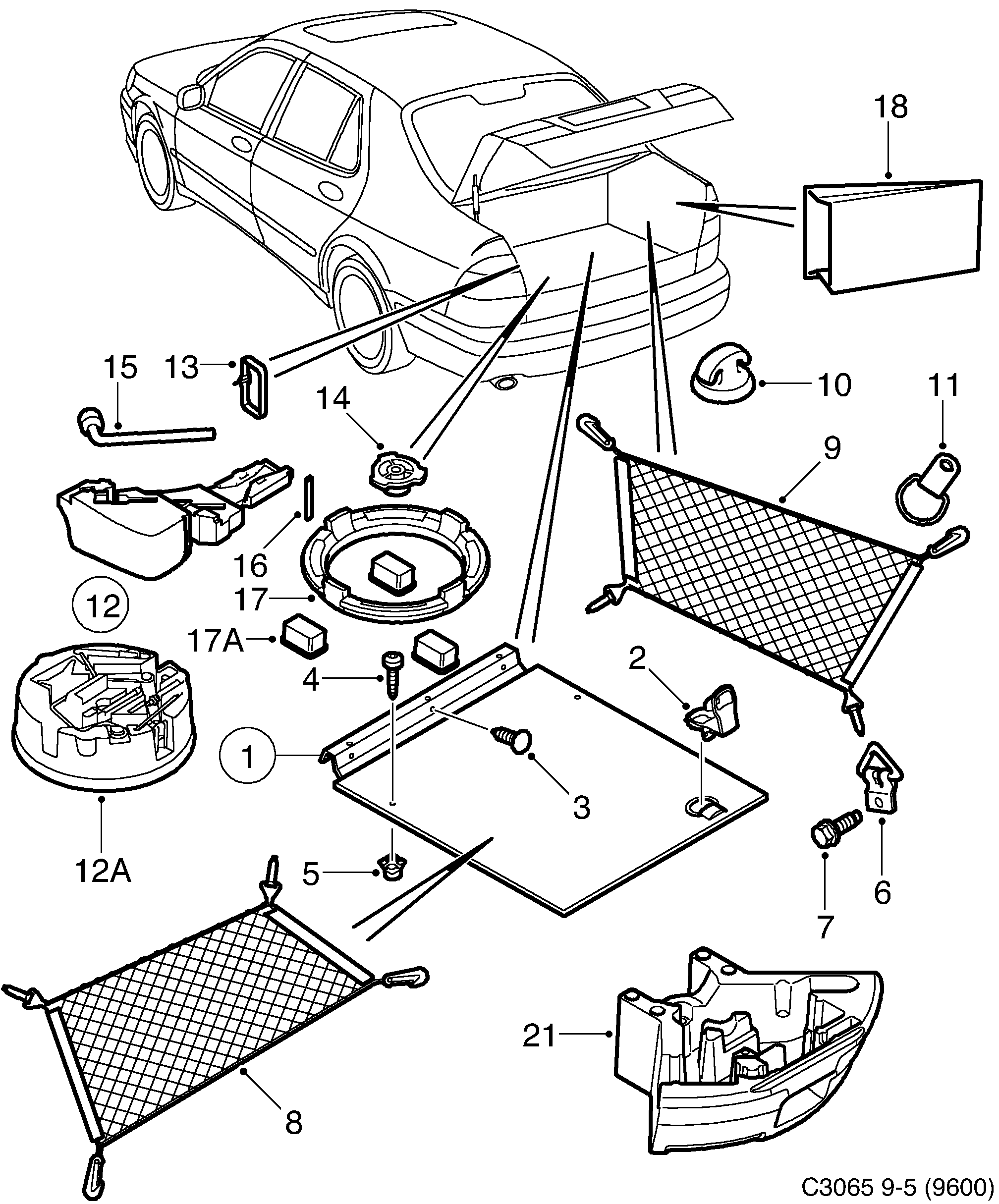

Group 8b Car body, internal, section 530
| Pos | Article | Part No. |
|---|---|---|
| 1 | Load floor | 4512828 |
| 1 | Load floor | 5219084 |
| 1 | Load floor | 5567003 |
| 1 | Load floor | 12769286 |
| 2 | Handle | 4792651 |
| 3 | Clip | 92152407 (replaces 9668153) |
| 4 | Screw | 92151996 (replaces 7975337) |
| 4 | Clip | 92152407 |
| 5 | Press nut | 92150170 (replaces 7982929) |
| 5 | Press nut | 92150170 |
| 6 | Eye | 4683850 |
| 7 | Hexagon screw | 7978265 |
| 8 | Floor cargo net | 12804871 (replaces 400112330) |
| 8 | Safety net | 12771241 |
| 9 | Luggage net | 4606992 |
| 10 | Anchor | 4824959 |
| 11 | Ring | 12798741 (replaces 4822417) |
| 12 | Foam plastic piece | 5134606 (replaces 4512869) |
| 12 | Foam plastic piece | 5134606 |
| 12A | Storage box | 13162851 (replaces 5566724) |
| 12A | Storage box | 13255674 |
| 13 | Locking strap | 5334750 (replaces 5008339) |
| 13 | Locking strap | 5334750 |
| 14 | Knob | 12791335 (replaces 9774290) |
| 14 | Knob | 90126756 (replaces 5566740) |
| 16 | Edge protection moulding | 4867917 |
| 17 | Spacer ring | 5390323 (replaces 4885646) |
| 17 | Spacer ring | 5390323 |
| 17A | Spacer | 5533849 |
| 18 | Bag | 9459728 |
| 18 | Bag | 5332473 |
| 21 | Storage tray | 13255676 (replaces 12804890) |
| 21 | Storage box | 13255676 |
