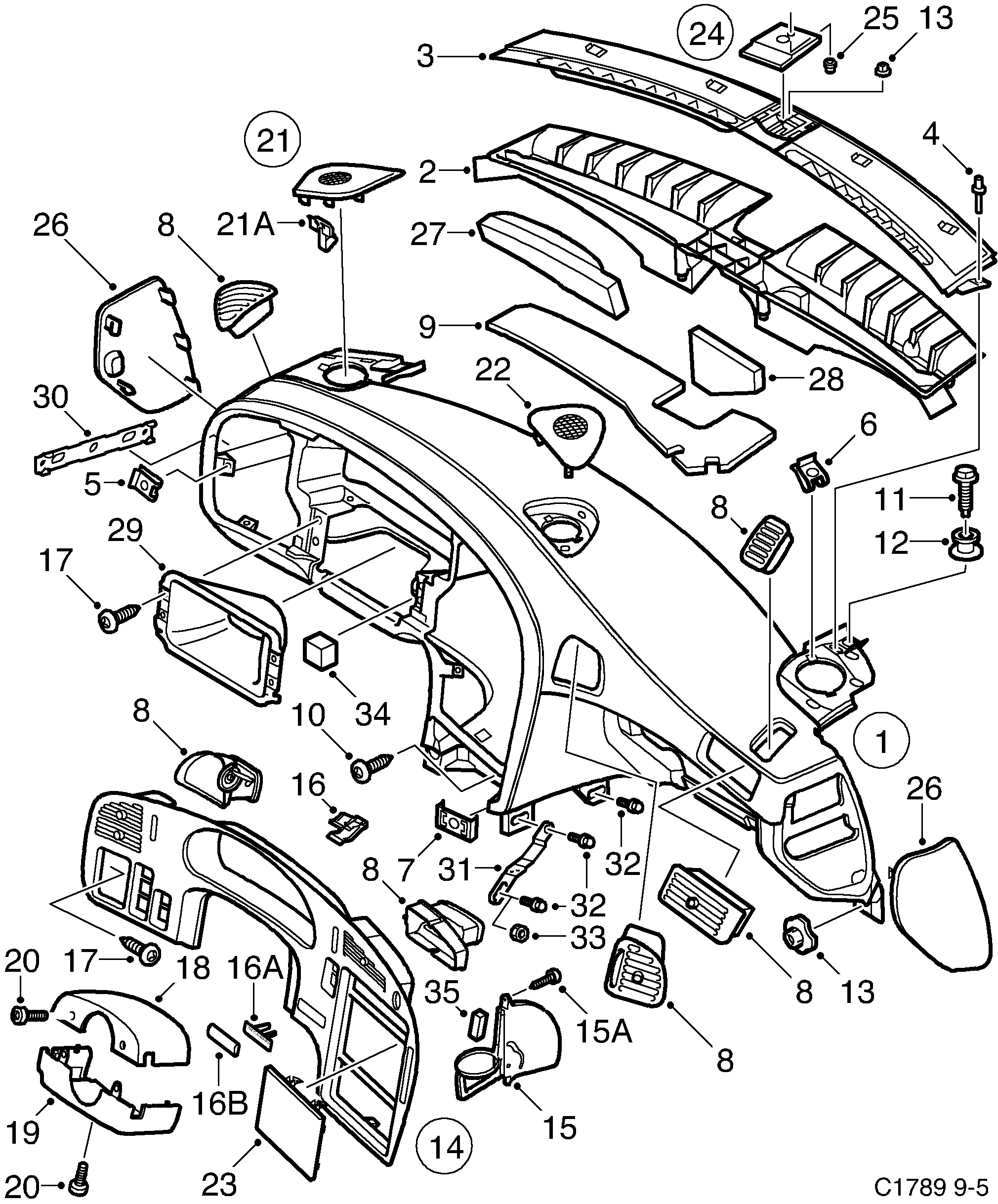

Group 8b Car body, internal, section 100
| Pos | Article | Part No. |
|---|---|---|
| 1 | Instrument panel | 4744462 |
| 1 | Instrument panel | 5550538 |
| 1 | Instrument panel | 4744447 |
| 1 | Instrument panel | 5550397 |
| 1 | Instrument panel | 4641106 |
| 1 | Instrument panel | 5550603 |
| 1 | Instrument panel | 4641098 |
| 1 | Instrument panel | 5550561 |
| 1 | Instrument panel | 4744470 |
| 1 | Instrument panel | 4744454 |
| 1 | Instrument panel | 4641122 |
| 1 | Instrument panel | 5550777 |
| 1 | Instrument panel | 4641114 |
| 1 | Instrument panel | 5550637 |
| 3 | Cover | 4741013 |
| 3 | Cover | 5550421 |
| 3 | Cover | 4741021 |
| 3 | Cover | 5550660 |
| 4 | Expanding rivet | 4470639 |
| 5 | Clip nut | 7968001 |
| 6 | Clip nut | 4685376 |
| 7 | Clip | 4685137 |
| 9 | Sound absorber | 30569640 (replaces 4705919) |
| 9 | Sound absorber | 4818175 |
| 10 | Screw | 92153006 (replaces 7977002) |
| 11 | Screw | 4741963 |
| 12 | Friction washer | 12778949 (replaces 4609954) |
| 13 | Hexagon nut | 11089471 (replaces 4345138) |
| 14 | Instrument plate | 5203245 (replaces 4639084) |
| 14 | Instrument plate | 5203245 (replaces 5016670) |
| 14 | Instrument plate | 5203245 |
| 14 | Instrument plate | 5016696 (replaces 4639092) |
| 14 | Instrument plate | 5016696 |
| 14 | Instrument plate | 5203260 |
| 14 | Instrument plate | 5203252 (replaces 4639100) |
| 14 | Instrument plate | 5203252 (replaces 5016688) |
| 14 | Instrument plate | 5203252 (replaces 5018130) |
| 14 | Instrument plate | 5203252 |
| 14 | Instrument plate | 5209127 |
| 14 | Instrument plate | 5201132 |
| 14 | Instrument plate | 5553755 |
| 14 | Instrument plate | 5207659 |
| 14 | Instrument plate | 5201140 |
| 14 | Instrument plate | 5209606 |
| 14 | Instrument plate | 5018148 (replaces 4640389) |
| 14 | Instrument plate | 5018148 (replaces 5016704) |
| 14 | Instrument plate | 5018148 |
| 14 | Instrument plate | 5203278 |
| 14 | Instrument plate | 5209135 |
| 14 | Instrument plate | 5201173 |
| 14 | Instrument plate | 5553763 |
| 14 | Instrument plate | 5207667 |
| 14 | Instrument plate | 5201181 |
| 14 | Instrument plate | 5209614 |
| 15 | Cup holder | 5336722 (replaces 4642633) |
| 15 | Cup holder | 5336722 (replaces 5016753) |
| 15 | Cup holder | 5336722 |
| 15A | Screw | 4940102 |
| 16 | Clamp | 92152185 (replaces 4423075) |
| 16A | Sign | 4713665 |
| 16B | Sign | 4949004 |
| 18 | Steering column cover | 4600193 |
| 19 | Steering column cover | 5016324 (replaces 4600201) |
| 19 | Steering column cover | 5016324 |
| 20 | Screw | 92153219 (replaces 7922354) |
| 21 | Grille, loudspeaker | 5330303 (replaces 4640397) |
| 21 | Grille, loudspeaker | 5330303 (replaces 5172747) |
| 21 | Kit | 5330352 |
| 21 | Grille, loudspeaker | 5330303 |
| 21 | Grille, loudspeaker | 5550793 |
| 21 | Grille, loudspeaker | 5330311 |
| 21 | Grille, loudspeaker | 5550801 |
| 21 | Grille, loudspeaker | 5330337 (replaces 4615118) |
| 21 | Kit | 5330360 |
| 21 | Grille, loudspeaker | 5330337 (replaces 5172770) |
| 21 | Grille, loudspeaker | 5330329 |
| 21 | Grille, loudspeaker | 5550827 |
| 21 | Grille, loudspeaker | 5330337 |
| 21 | Grille, loudspeaker | 5550835 |
| 21A | Clip | 9461047 |
| 22 | Grille, loudspeaker | 4642203 |
| 22 | Grille, loudspeaker | 5550819 |
| 22 | Grille, loudspeaker | 4642401 |
| 22 | Grille, loudspeaker | 5550843 |
| 23 | Cover plate | 30566991 |
| 24 | Cover plate | 30566990 (replaces 4705604) |
| 24 | Cover plate | 30566989 (replaces 4705588) |
| 24 | Cover plate | 5550918 |
| 25 | Bracket | 9593161 |
| 26 | Cover | 5019351 (replaces 5016506) |
| 26 | Cover | 5019351 |
| 26 | Cover | 5200787 |
| 26 | Cover | 5204870 |
| 26 | Cover | 5206586 |
| 26 | Cover | 5550868 |
| 26 | Cover | 5550884 |
| 26 | Cover | 4615266 |
| 26 | Cover | 4640991 |
| 26 | Cover | 5550850 |
| 26 | Cover | 5019369 (replaces 5012737) |
| 26 | Cover | 5019369 (replaces 5016514) |
| 26 | Cover | 5019369 |
| 26 | Cover | 5200795 |
| 26 | Cover | 5204888 |
| 26 | Cover | 5206594 |
| 26 | Cover | 5550892 |
| 27 | Sound absorber | 30569641 (replaces 4705927) |
| 27 | Sound absorber | 4818183 |
| 28 | Sound absorber | 30569642 (replaces 4705935) |
| 28 | Sound absorber | 4818191 |
| 29 | Cover | 12761888 (replaces 5013453) |
| 29 | Cover | 12761888 (replaces 5207931) |
| 29 | Cover | 12761888 |
| 30 | Locating plate | 5010673 |
| 31 | Bracket | 5206420 (replaces 5010632) |
| 31 | Bracket | 5206420 |
| 32 | Screw | 92151885 (replaces 7978638) |
| 33 | Nut | 11900451 (replaces 7977929) |
| 34 | Spacer | 5335914 |
| 35 | Spacer | 5333398 |
