Saab 9-5 (9600) 2004-2005 Bumper, rear Aero

Group 8a Car body, external, section 986

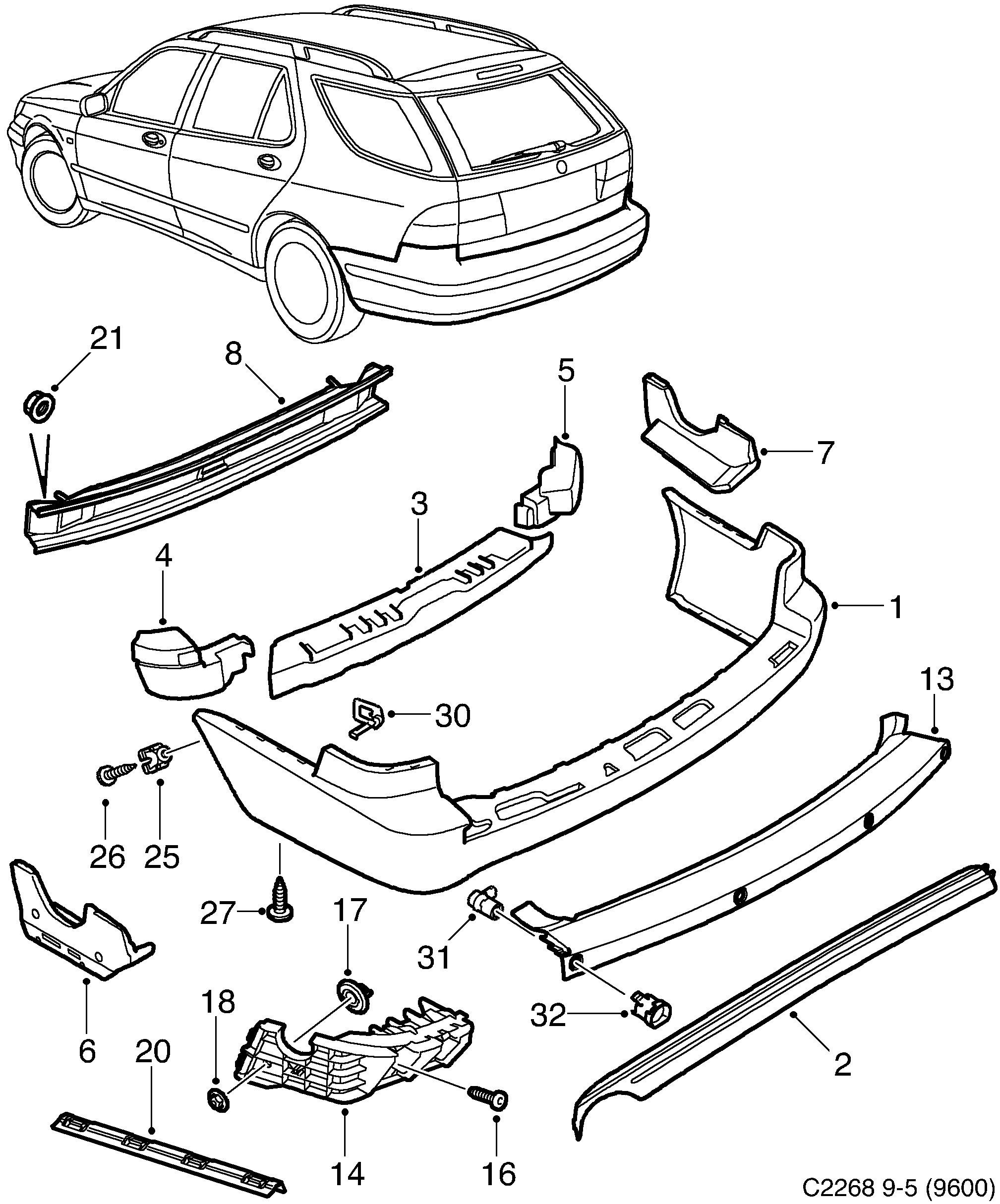

Saab 9-5 (9600) Bumper, rear Aero diagram

Pos	Article	Part No.
1	Cover	400133245 (replaces 5497698)
2	Grille	5491634
3	Foam part	5491717
4	Foam part	5491725
5	Foam part	5491733
6	Air evacuation	5491766
7	Air evacuation	5491774
8	Bumper rail	12769506 (replaces 4560884)
13	Decor strip	400133310 (replaces 5491691)
13	Decor strip	400133302 (replaces 5491709)
14	Bracket	5492913
14	Bracket	5492921
16	Screw	92153215 (replaces 7979610)
17	Clip	4785184
18	Nut	55563636 (replaces 4685582)
20	Attaching rail	5285838
21	Nut	7967979
25	Press nut	92150170 (replaces 7982929)
26	Screw	92151995 (replaces 7972979)
26	Hexagon screw	92150086
27	Screw	92151891 (replaces 7978653)
30	Bracket	4833588
31	Sensor	5266523
31	Sensor	5267042
32	Retainer	5337639
