Saab 9-5 (9600) 2004-2005 Bumper, rear Aero

Group 8a Car body, external, section 976

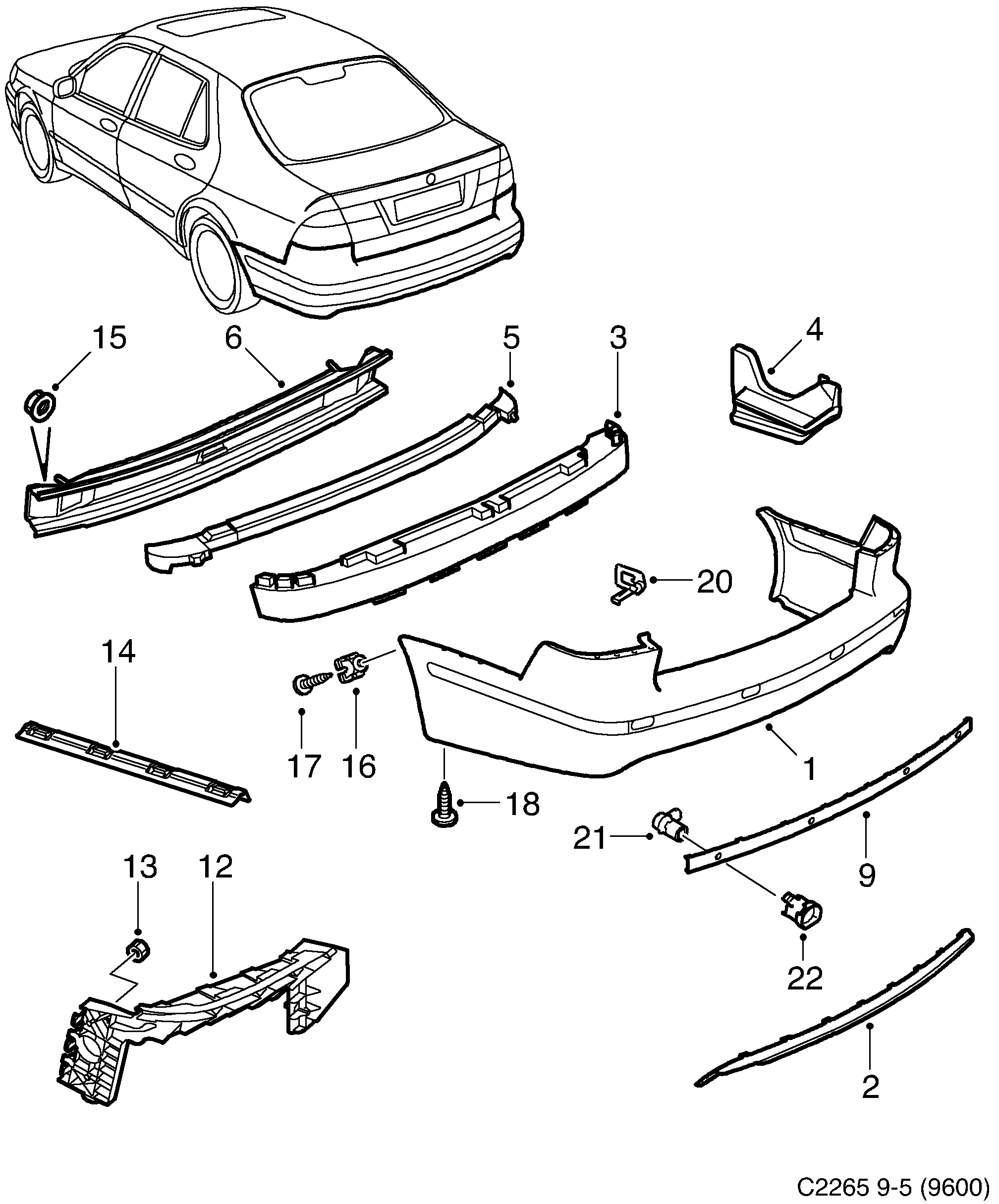

Saab 9-5 (9600) Bumper, rear Aero diagram

Pos	Article	Part No.
1	Cover	400133237 (replaces 5497581)
2	Grille	5491634
3	Foam part	5491626
4	Air evacuation	5491659
4	Air evacuation	5491667
5	Foam part	5143029
6	Bumper rail	12769506 (replaces 4560884)
9	Decor strip	400133294 (replaces 5492871)
9	Decor strip	400133286 (replaces 5492889)
12	Bracket	5143193
12	Bracket	5143201
13	Nut	11900451 (replaces 7977929)
14	Attaching rail	5285838
15	Nut	7967979
16	Press nut	92150170 (replaces 7982929)
17	Screw	92151995 (replaces 7972979)
17	Hexagon screw	92150086
18	Screw	92151891 (replaces 7978653)
20	Bracket	4833588
21	Sensor	5266523
21	Sensor	5267042
22	Retainer	5337639
