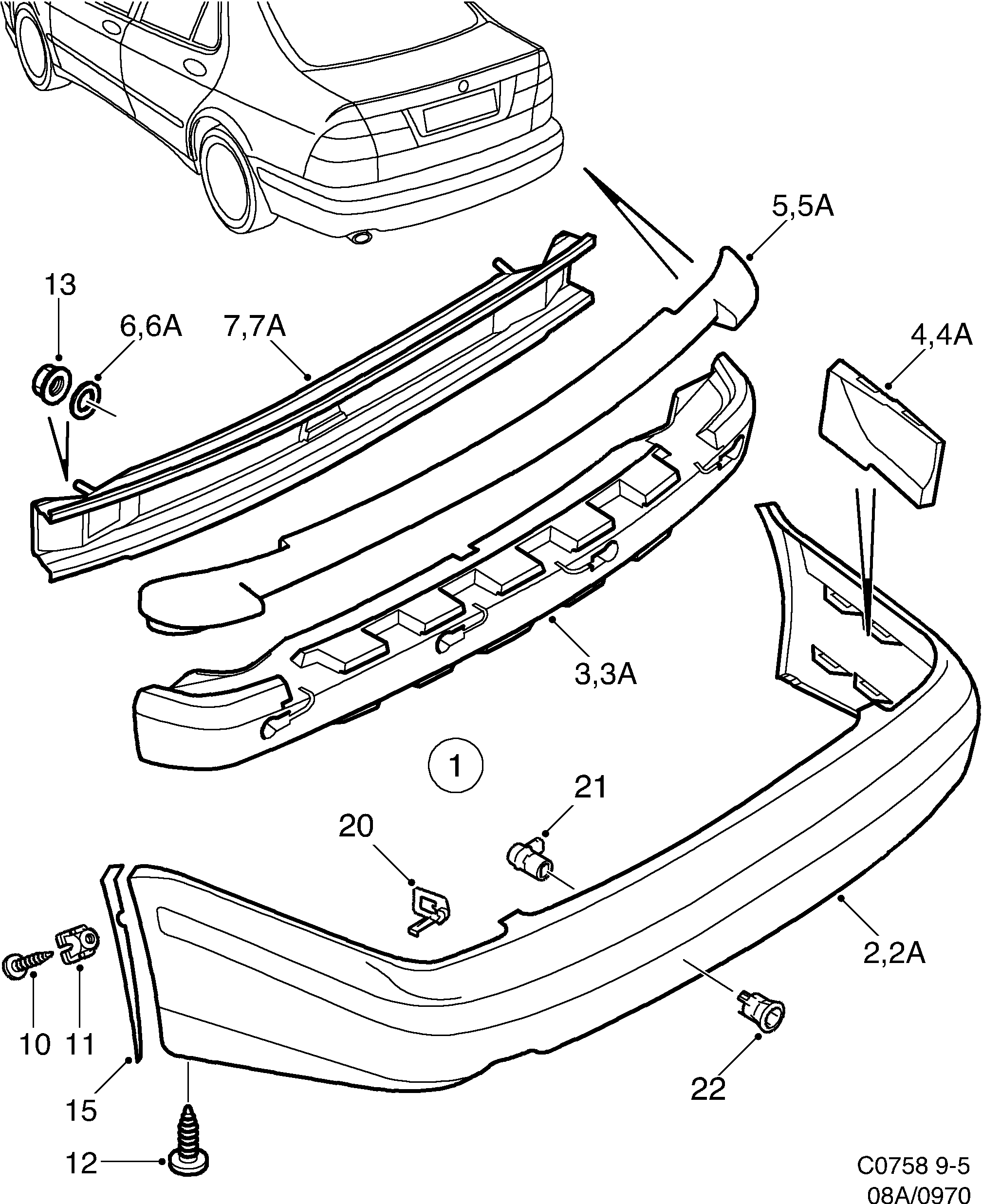

Group 8a Car body, external, section 970
| Pos | Article | Part No. |
|---|---|---|
| 1 | Bumper | 4955191 |
| 2 | Cover | 4957072 |
| 3 | Foam part | 4560876 |
| 4 | Stiffener | 4867255 |
| 4 | Stiffener | 4867263 |
| 5 | Support | 4562963 |
| 6 | Seal | 9234055 (replaces 6992325) |
| 7 | Bumper rail | 12769506 (replaces 4560884) |
| 2A | Cover | 5149752 |
| 2A | Cover | 5145032 |
| 2A | Cover | 5400627 |
| 10 | Screw | 92153006 (replaces 7977002) |
| 11 | Press nut | 92150170 (replaces 7982929) |
| 12 | Screw | 92151891 (replaces 7978653) |
| 13 | Nut | 7967979 |
| 15 | Stripe | 4913679 |
| 15 | Stripe | 4913661 |
| 20 | Bracket | 4833588 |
| 21 | Sensor | 5266523 (replaces 4711842) |
| 22 | Bracket | 5145016 |
