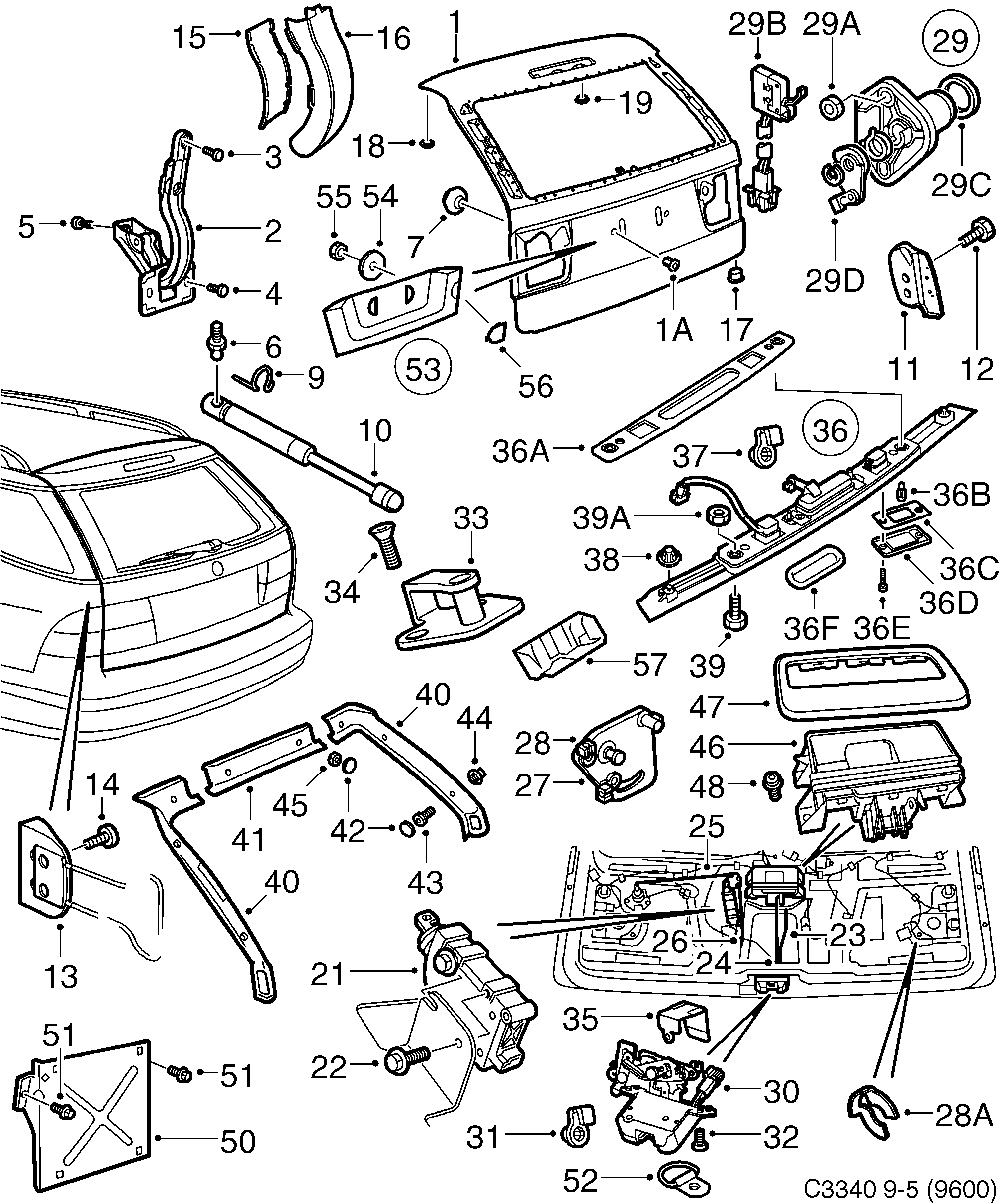

Group 8a Car body, external, section 652
| Pos | Article | Part No. |
|---|---|---|
| 1 | Trunk lid | 5185921 |
| 1 | Trunk lid | 5363734 |
| 1 | Trunk lid | 93186691 |
| 1A | Nut | 9130829 (replaces 92150375) |
| 2 | Hinge | 5182100 |
| 3 | Screw | 92151830 (replaces 8059792) |
| 4 | Screw | 5125133 |
| 4 | Screw | 12778617 |
| 5 | Screw | 55562121 (replaces 7967938) |
| 5 | Screw | 11900365 |
| 6 | Ballpin | 4940482 |
| 7 | Plug | 12758049 |
| 9 | Clip | 5333778 |
| 10 | Gas spring | 12768264 (replaces 4699260) |
| 10 | Compressed gas spring | 12768264 |
| 11 | Support | 4699286 |
| 11 | Support | 4850327 |
| 12 | Screw | 92153218 (replaces 7982176) |
| 12 | Screw | 92153218 |
| 13 | Support | 4699278 (replaces 4852513) |
| 14 | Screw | 92151601 (replaces 7978430) |
| 14 | Screw | 92151601 |
| 15 | Cover | 4852364 |
| 16 | Cover | 4852356 |
| 17 | Draining plug | 5112073 |
| 18 | Plug | 90242083 (replaces 4333480) |
| 19 | Plug | 92152133 (replaces 7398886) |
| Plug | 24436714 | |
| 21 | Motor | 4809190 |
| 21 | Motor | 4947693 |
| 22 | Screw | 7971823 |
| 22 | Screw | 7987639 |
| 23 | Rod | 4699534 |
| 24 | Rod | 4699542 |
| 25 | Rod | 4699559 |
| 26 | Rod | 4699567 |
| 27 | Pivot arm | 5336300 |
| 27 | Pivot arm | 5363510 |
| 28 | Clip | 4859344 |
| 28A | Lock ring | 4346227 |
| 29A | Nut | 11900428 (replaces 7971658) |
| 29B | Microswitch | 400126561 (replaces 4327300) |
| 29C | Sealing ring | 4854683 |
| 29D | Clip | 4346110 |
| 30 | Lock | 4699518 |
| 31 | Clamp | 9782566 |
| 30 | Lock | 5360847 |
| 30 | Lock | 13188852 |
| 30 | Lock | 12846805 |
| 32 | Screw | 92152130 |
| 32 | Screw | 12778246 (replaces 92152009) |
| 32 | Screw | 12778246 |
| 33 | Striker | 5182134 |
| 33 | Lock brace | 13203495 |
| 34 | Screw | 92152010 |
| 35 | Bracket | 12767824 |
| 36 | Outside handle | 4699898 |
| 36 | Outside handle | 12756979 |
| 36A | Seal | 5117197 |
| 36A | Seal | 12765213 |
| 36B | Bulb | 93190471 (replaces 9512880) |
| 36B | Bulb | 93190473 (replaces 12795073) |
| 36C | Seal | 5117205 |
| 36C | Seal | 12768241 |
| 36D | Lens | 5117189 |
| 36D | Lamp lens | 12765543 |
| 36E | Screw | 4940284 |
| 36F | Cover | 12765542 |
| 38 | Clip | 5111950 |
| 39 | Screw | 92151601 (replaces 92150065) |
| 39A | Nut | 11900451 (replaces 7977929) |
| 39A | Nut | 11900451 (replaces 92150133) |
| Clamp | 7951783 | |
| 40 | Cover | 4915773 |
| 40 | Cover | 4915781 |
| 41 | Cover | 4915799 |
| 42 | Cover | 4914586 |
| 43 | Screw | 92152026 (replaces 4940557) |
| 44 | Press nut | 4698098 |
| 46 | Opening handle | 4823845 |
| 46 | Opening handle | 4823902 |
| 47 | Frame | 4823852 |
| 47 | Frame | 4823910 |
| 50 | Bracket | 5409651 |
| 50 | Bracket | 12786338 (replaces 5409669) |
| 50 | Bracket | 12786338 |
| 50 | Bracket | 12764427 |
| 52 | Ring | 12798741 (replaces 4822417) |
| 53 | Decor panel | 5337118 (replaces 5409321) |
| 53 | Decor panel | 5337118 |
| 53 | Decor panel | 12757935 |
| 54 | Washer | 5338165 |
| Screw | 12775953 | |
| Gasket kit | 93187582 | |
| Gasket | 12760698 | |
| Seal | 12771485 | |
| 56 | Cover | 5495676 |
| Mounting kit | 4959565 | |
| Mounting kit | 5141932 | |
| Mounting kit | 12804284 (replaces 5586839) | |
| 57 | Cover | 12762210 |
