Saab 9-5 (9600) 1999-2001 Tail gate

Group 8a Car body, external, section 650

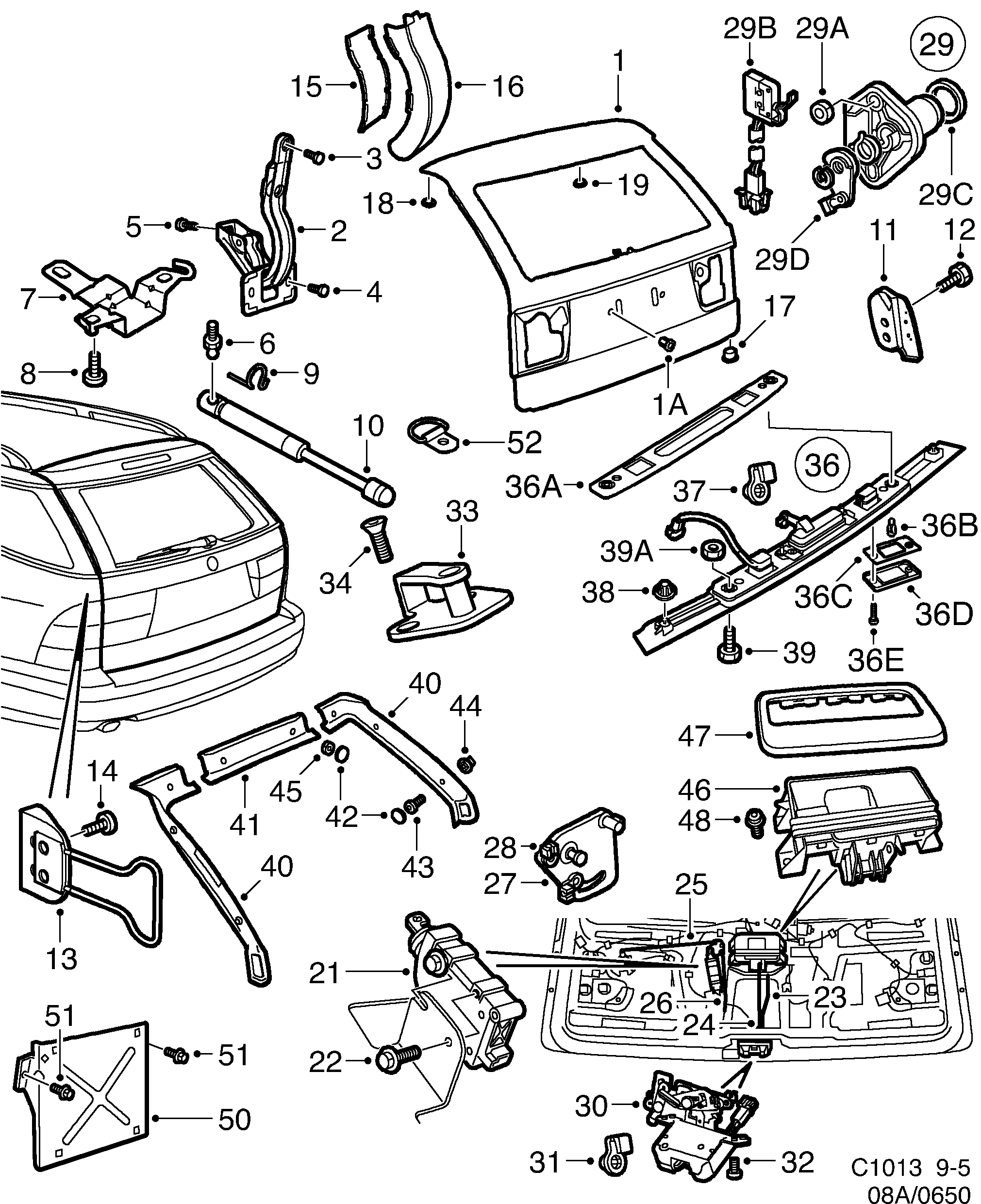

Saab 9-5 (9600) Tail gate diagram

Pos	Article	Part No.
1	Tail gate	5182092
1A	Nut	9130829 (replaces 92150375)
2	Hinge	5182100
3	Screw	92151830 (replaces 8059792)
4	Screw	5125133
5	Screw	55562121 (replaces 7967938)
6	Ballpin	4940482
7	Protection	5333778 (replaces 5070040)
8	Screw	11900353 (replaces 7978091)
9	Clip	5333778
10	Gas spring	12768264 (replaces 4699260)
11	Support	4699286
11	Support	4850327
12	Screw	92153218 (replaces 7982176)
13	Support	4699278 (replaces 4852513)
14	Screw	92151601 (replaces 7978430)
15	Cover	4852364
16	Cover	4852356
17	Draining plug	5112073
18	Plug	9267808
19	Plug	92152133 (replaces 7398886)
21	Motor	4809190
21	Motor	4947693
22	Screw	7971823
23	Rod	4699534
24	Rod	4699542
25	Rod	4699559
26	Rod	4699567
27	Pivot arm	4859344 (replaces 4769030)
28	Clip	4859344
29A	Nut	11900428 (replaces 7971658)
29B	Microswitch	400126561 (replaces 4327300)
29C	Sealing ring	4854683
29D	Clip	4346110
30	Lock	4699518
31	Clamp	9782566
32	Hexagon screw	92152130 (replaces 7984305)
33	Striker	5182134
34	Screw	92152010 (replaces 4685624)
36	Outside handle	4699898
36A	Seal	5117205
36B	Bulb	93190471 (replaces 9512880)
36C	Seal	5117197
36D	Lens	5117189
36E	Screw	4940284
38	Clip	5111950
39A	Nut	11900451 (replaces 7977929)
40	Cover	4915773
40	Cover	4915781
41	Cover	4915799
42	Cover	4914586
43	Screw	92152026 (replaces 4940557)
44	Press nut	4698098
46	Opening handle	4823845
46	Opening handle	4823902
47	Frame	4823852
47	Frame	4823910
50	Bracket	4560678
52	Ring	12798741 (replaces 4822417)
	Mounting kit	4959565
	Mounting kit	12804284 (replaces 9240086)
	Mounting kit	5141932
