Saab 9-5 (9600) 2002-2010 Trunk lid

Group 8a Car body, external, section 642

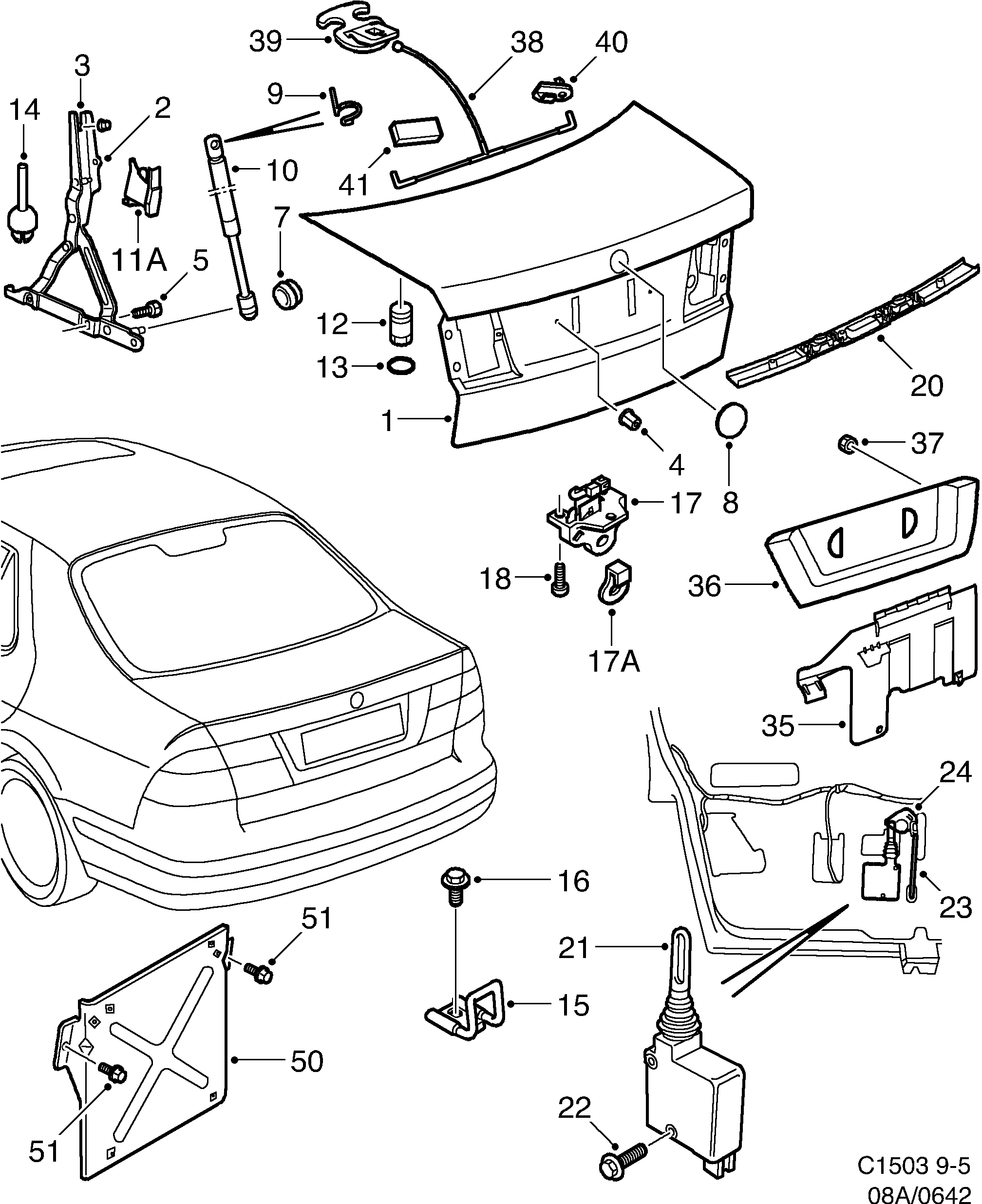

Saab 9-5 (9600) Trunk lid diagram

Pos	Article	Part No.
1	Trunk lid	5185939
1	Tail gate	93186603
2	Hinge	4851713
2	Hinge	4851721
3	Nut	11900429 (replaces 7967953)
4	Nut	9130829 (replaces 92150375)
5	Screw	12768930
5	Screw	12768930 (replaces 12805852)
7	Plug	7163074
8	Plug	92152133 (replaces 7398886)
9	Clip	4558060
10	Gas spring	5360839 (replaces 5117015)
10	Gas spring	5360839
11A	Clip	5332739
11A	Clip	5332747
12	Rubber buffer	4851374
13	Wear protection	12770126 (replaces 6974000)
13	Protection	12770126
14	Stop	4855243
15	Striker	4855664
16	Screw	4347407
16	Screw	13252941
17	Lock	5331293
17A	Clip	4326740
18	Screw	92153216 (replaces 7982325)
18	Screw	92153216
21	Motor	4808812
22	Screw	7971823
22	Screw	7987639
23	Rod	5360375
23	Rod	12756347
24	Pivot arm	4851929
35	Protection	5360300
35	Cover	12756346
36	Decor panel	5409313
36	Decor panel	12757935
	Screw	4596979
	Gasket kit	93187582
	Gasket	12760698
	Gasket	12771485 (replaces 12760699)
37	Nut	11900451 (replaces 7977929)
37	Nut	11900445
37	Rivet nut	9130829
38	Cable	5361050 (replaces 5360482)
38	Cable	5361050
39	Handle	5362702 (replaces 5360391)
39	Handle	5362702 (replaces 5361043)
40	Clip	8461675
41	Spacer	4509576
50	Bracket	5409651
50	Bracket	5492863
50	Bracket	12786338
50	Bracket	12764427
51	Screw	92151601 (replaces 7978430)
51	Screw	92151601 (replaces 92150065)
51	Screw	92151601
	Mounting kit	4959565
	Mounting kit	5141932
	Mounting kit	12804284 (replaces 5586839)
