Saab 9-5 (9600) 1998-2001 Trunk lid

Group 8a Car body, external, section 640

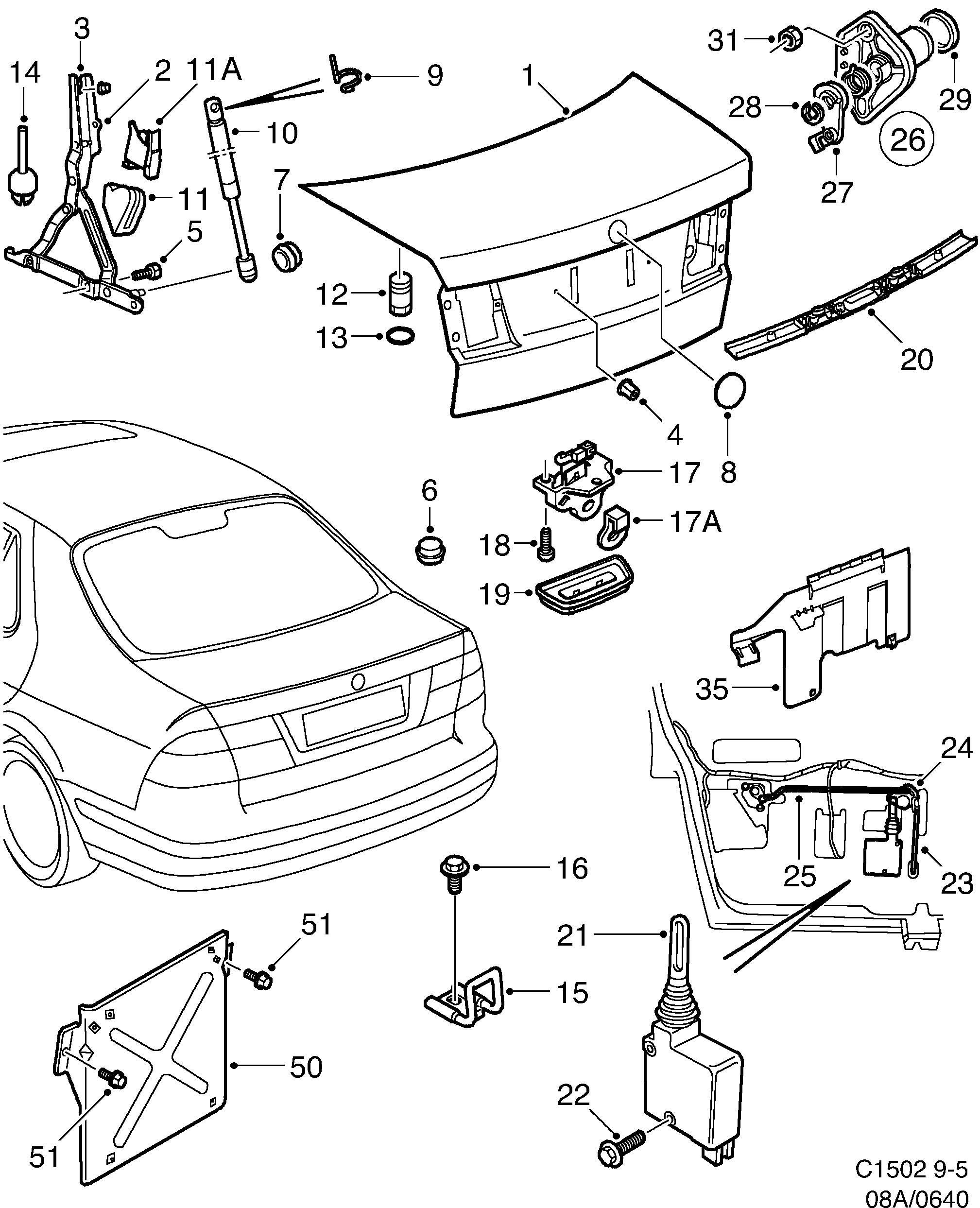

Saab 9-5 (9600) Trunk lid diagram

Pos	Article	Part No.
1	Trunk lid	5112180 (replaces 4851044)
1	Trunk lid	5112180
2	Hinge	4851713
2	Hinge	4851721
3	Nut	11900429 (replaces 7967953)
4	Nut	9130829 (replaces 92150375)
5	Screw	12768930 (replaces 4940045)
6	Plug	12803392 (replaces 6930572)
7	Plug	7163074
8	Plug	92152133 (replaces 7398886)
9	Clip	4558060
10	Gas spring	5360839 (replaces 4855094)
10	Gas spring	5360839 (replaces 5117015)
11	Stop, shoulder	4558045
11	Stop, shoulder	4558052
11A	Clip	5332739
11A	Clip	5332747
12	Rubber buffer	4851374
13	Wear protection	12770126 (replaces 6974000)
14	Stop	4855243
15	Striker	4855664
16	Screw	4347407
17	Lock	5331293 (replaces 4766879)
17	Lock	5331293
17A	Clip	4326740
18	Screw	92153216 (replaces 7982325)
19	Protection	4855441
21	Motor	4808812
22	Screw	7971823
23	Rod	4695243
24	Pivot arm	4851929
24	Pivot arm	5336292
25	Rod	4552329
27	Clip	4346110
28	Retaining ring	4854212
29	Sealing ring	4854683
31	Nut	11900428 (replaces 7971658)
35	Protection	4851366
50	Bracket	4560678
51	Screw	92151601 (replaces 7978430)
	Mounting kit	4959565
	Mounting kit	12804284 (replaces 9240086)
	Mounting kit	5141932
