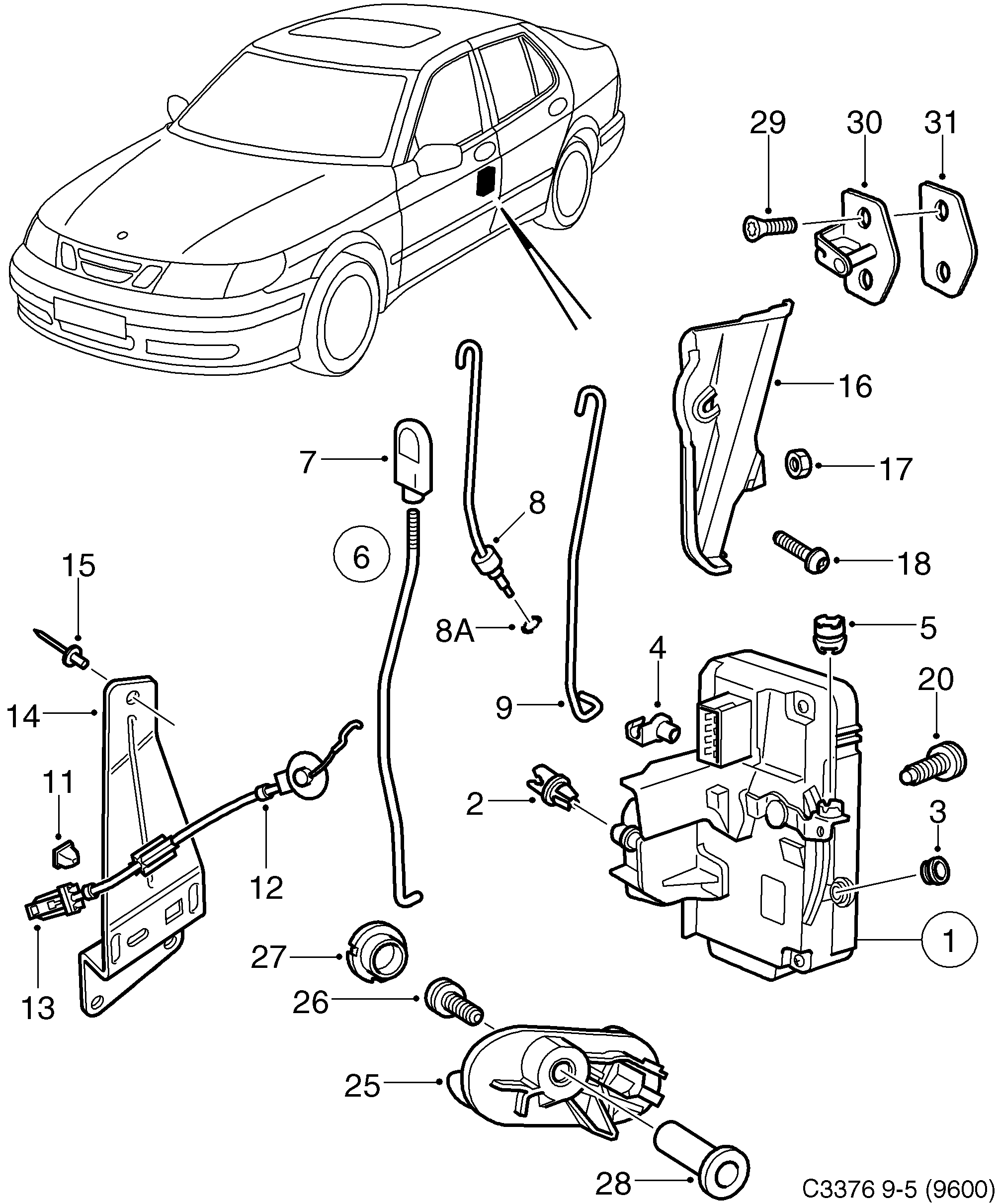

Group 8a Car body, external, section 580
| Pos | Article | Part No. |
|---|---|---|
| 1 | Door lock | 4855151 |
| 1 | Door lock | 4855185 |
| 1 | Door lock | 4857132 |
| 1 | Door lock | 4857140 |
| 1 | Door lock | 4855177 |
| 1 | Door lock | 4855169 |
| 2 | Clip | 4859666 |
| 3 | Bushing | 4859682 |
| 4 | Clip | 4859674 |
| 4 | Clip | 4859724 |
| 5 | Adjusting ring | 4859690 |
| 6 | Rod | 4552576 |
| 6 | Rod | 4552584 |
| 7 | Lock button | 4037735 |
| 8 | Control rod | 4552535 |
| 8 | Control rod | 4552543 |
| 8A | Lock washer | 12779678 |
| 9 | Rod | 4552519 |
| 9 | Rod | 4552527 |
| 11 | Plug | 5116835 |
| 12 | Cable | 4559738 |
| 13 | Coupling piece | 4853644 |
| 14 | Bracket | 4695292 |
| 14 | Bracket | 4695300 |
| 15 | Rivet | 92153060 (replaces 7972516) |
| 15 | Rivet | 92153058 |
| 16 | Guard | 4859617 |
| 16 | Guard | 4859625 |
| 17 | Hexagon nut | 12778247 (replaces 4940243) |
| 17 | Hexagon nut | 12778247 |
| 18 | Blind rivet | 92153058 (replaces 92150177) |
| 20 | Screw | 12778246 (replaces 4695813) |
| 20 | Screw | 12778246 (replaces 92152009) |
| 20 | Screw | 12778246 |
| 25 | Opening handle | 4824348 |
| 25 | Opening handle | 4824355 |
| 25 | Opening handle | 12772619 (replaces 5560743) |
| 25 | Door handle | 12772619 |
| 25 | Opening handle | 12772620 (replaces 5560750) |
| 25 | Door handle | 12772620 |
| 26 | Screw | 92151601 (replaces 7978430) |
| 27 | Cover | 4420600 |
| 28 | Nut | 9130829 (replaces 92150375) |
| 28 | Rivet nut | 9130829 |
| 29 | Screw | 92152010 (replaces 4685624) |
| 30 | Striker | 4695821 |
| 31 | Spacer | 4854378 |
