Saab 9-5 (9600) 2002-2010 Rear door window regulators

Group 8a Car body, external, section 560

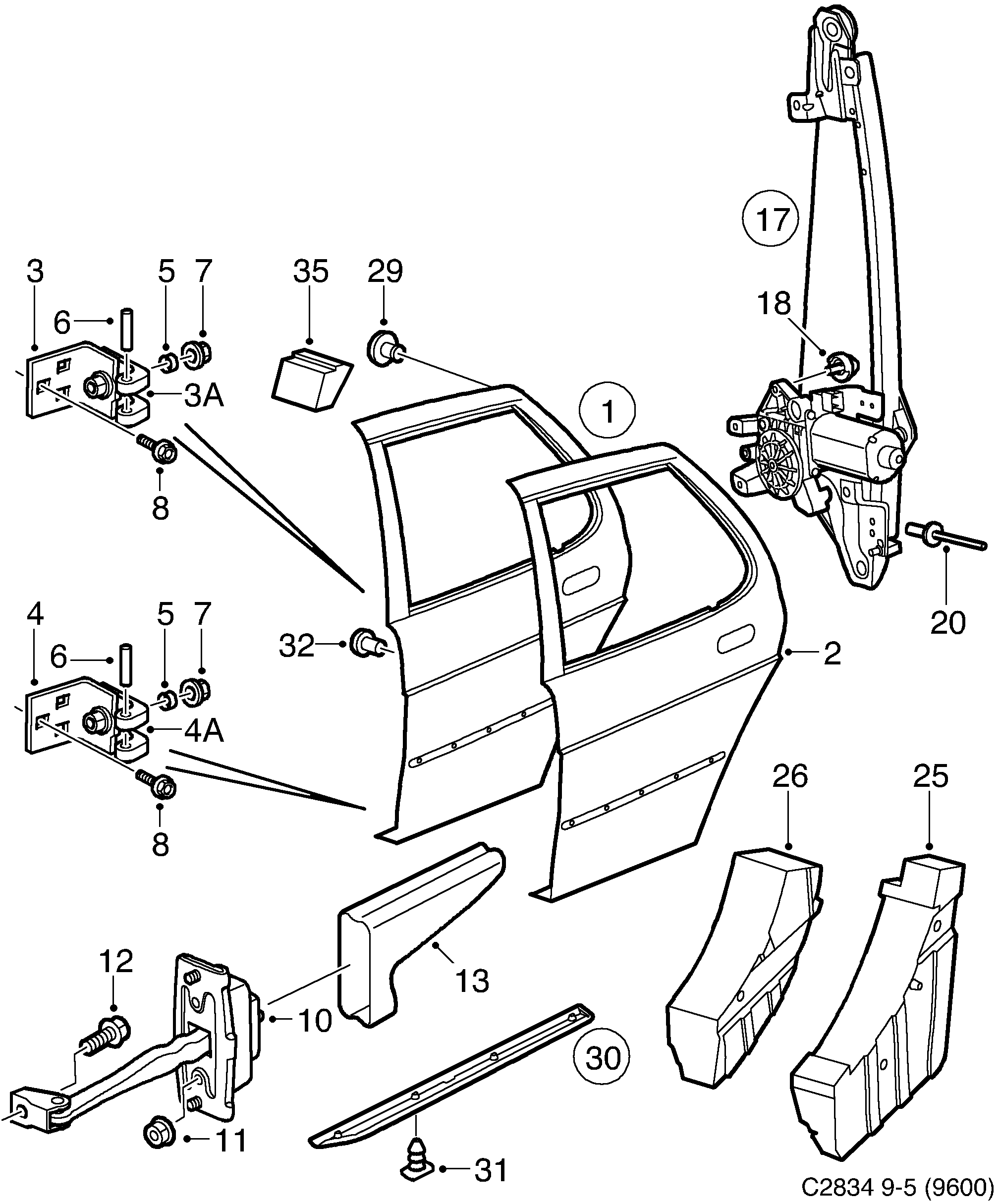

Saab 9-5 (9600) Rear door window regulators diagram

Pos	Article	Part No.
1	Door	5335450
1	Door	5335468
1	Door	5335492
1	Door	5335500
2	Outer panel	5110515
2	Outer panel	5110523
2	Outer panel	5182076
2	Outer panel	5182084
3	Hinge	5335393
3A	Hinge part	5335419
4	Hinge	5335401
5	Bushing	5112800
6	Hinge pin	4767653
7	Flange lock nut	11900441 (replaces 4347993)
8	Screw	12768930 (replaces 4940045)
10	Check link	4557856
11	Nut	11900451 (replaces 7977929)
12	Screw	55566034 (replaces 7978190)
12	Screw	12780222
13	Cover	5333273
17	Window regulator	5184858
17	Window regulator	5333422
18	Clip	5333414
20	Blind rivet	11086102 (replaces 5338298)
20	Blind rivet	11086102
25	Spacer	4767356
25	Spacer	4767364
26	Spacer	4767059
26	Spacer	4767067
29	Plug	12803392 (replaces 6930572)
30	Protection	12779061 (replaces 4833117)
30	Protection	12779061
30	Protection	12779060 (replaces 4833125)
30	Protecting moulding	12779060
31	Clip	4918041
32	Plug	8272635
35	Sound insulation	4856324
	Tape	9289414
