Saab 9-5 (9600) 2002-2010 Front door window regulators

Group 8a Car body, external, section 530

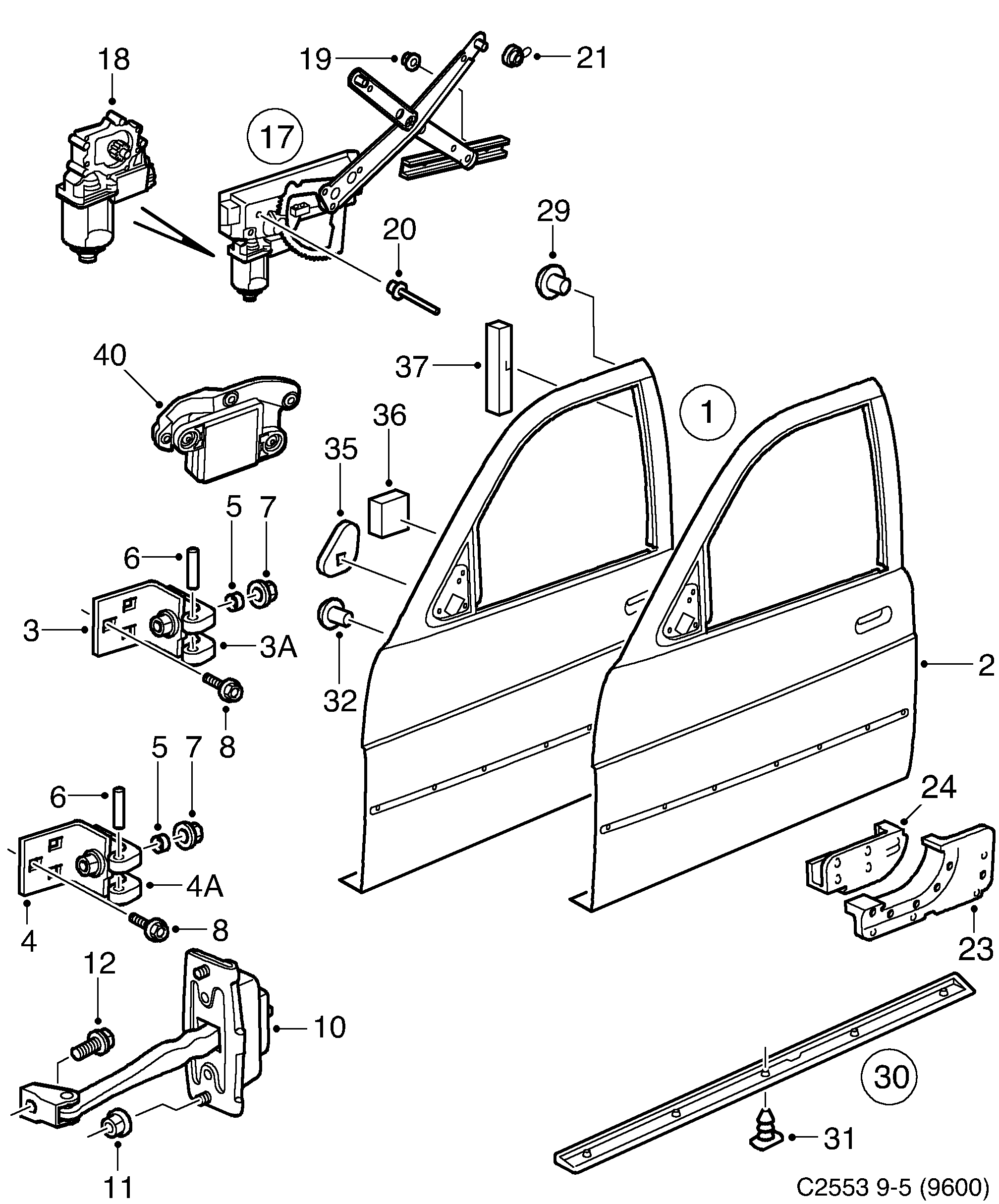

Saab 9-5 (9600) Front door window regulators diagram

Pos	Article	Part No.
1	Door	5513502 (replaces 5335534)
1	Door	5513502
1	Door	12772898 (replaces 5335542)
1	Door	12772898 (replaces 5513510)
1	Front door	12772898
2	Outer panel	5110531
2	Outer panel	5110549
3	Hinge	5335377
3A	Hinge part	5335419
4	Hinge	5335385
5	Bushing	5112800
6	Hinge pin	4767653
7	Flange lock nut	11900441 (replaces 4347993)
8	Screw	12768930 (replaces 4940045)
10	Check link	4557856
11	Nut	11900428 (replaces 7971658)
11	Nut	11900428
12	Screw	55566034 (replaces 7978190)
12	Screw	12780222
17	Window regulator	5184817
17	Window regulator	5184825
18	Motor	5184833
18	Motor	5184841
19	Nut	11900451 (replaces 7977929)
20	Blind rivet	11086102 (replaces 4087904)
20	Blind rivet	11086102 (replaces 5338298)
21	Roller	4493433
23	Spacer	5113675
23	Spacer	5113683
24	Spacer	5116256
24	Spacer	5116264
29	Plug	12803392 (replaces 6930572)
30	Protection	12779059 (replaces 4833133)
30	Protecting moulding	12779059
30	Protection	12779058 (replaces 4833141)
30	Protecting moulding	12779058
31	Clip	4918041
32	Plug	8272635
35	Sound insulation	5117023
36	Sound insulation	4856787
37	Sound insulation	4856795
	Tape	9289414
