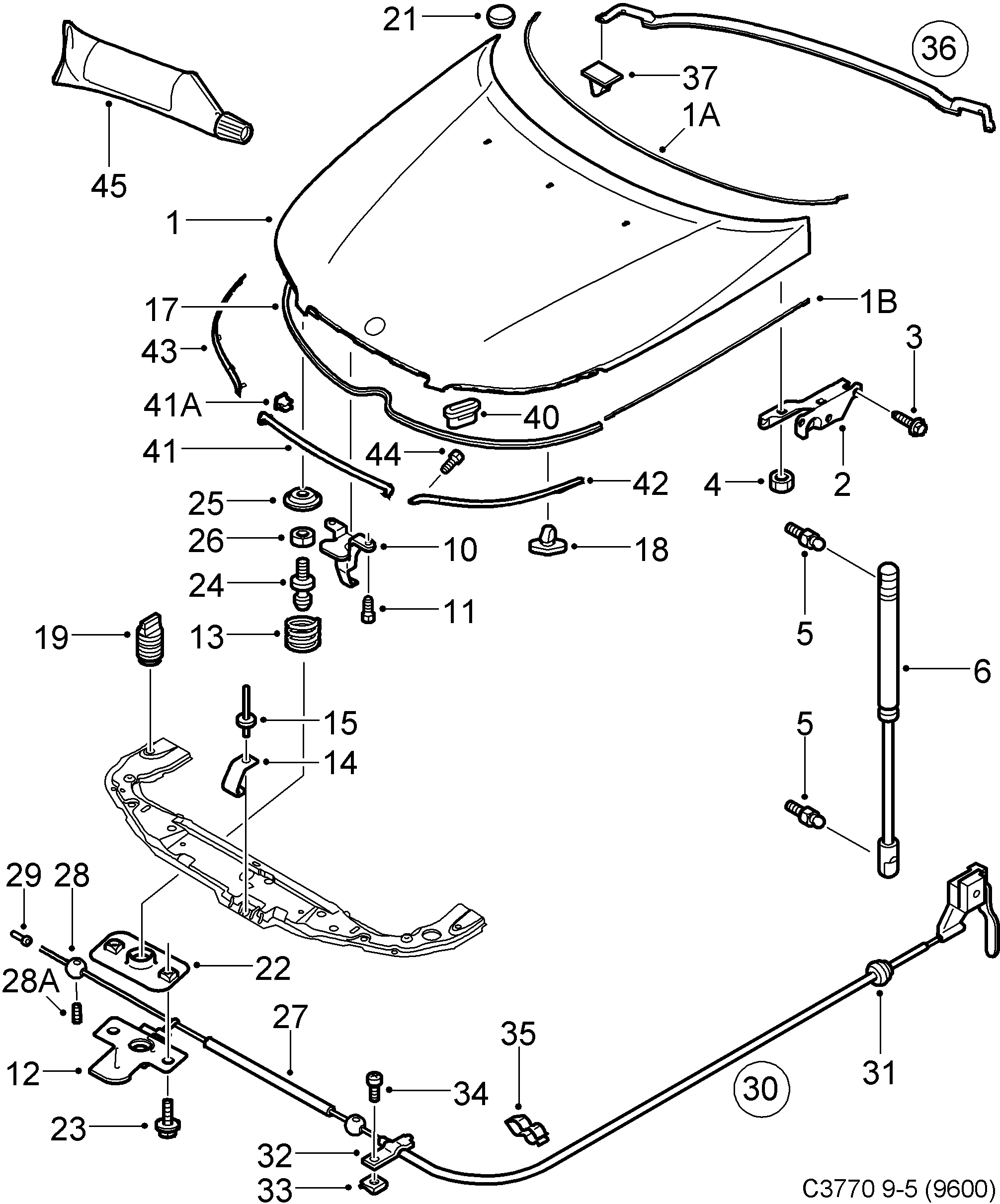

Group 8a Car body, external, section 410
| Pos | Article | Part No. |
|---|---|---|
| 1 | Hood | 93186599 |
| 2 | Hinge | 4852877 |
| 2 | Hinge | 4852885 |
| 3 | Screw | 12768930 (replaces 4940045) |
| 3 | Screw | 12768930 (replaces 12805852) |
| 4 | Nut | 4087045 |
| 5 | Ballpin | 4493912 |
| 6 | Absorber | 12761582 |
| 10 | Latch | 12767500 |
| 11 | Screw | 92152130 |
| 11 | Screw | 11900353 |
| 12 | Hood lock | 12785020 (replaces 12755627) |
| 13 | Return spring | 4854972 |
| 14 | Wear protection | 12790747 |
| 15 | Rivet | 92153060 |
| 17 | Seal | 12755624 |
| 18 | Clip | 4857512 |
| 19 | Rubber buffer | 12786272 |
| 21 | Plug | 4333563 |
| 22 | Guide | 6973671 |
| 24 | Lock pin | 12778245 (replaces 5111992) |
| 24 | Lock pin | 12778245 |
| 25 | Washer | 6973762 |
| 25 | Washer | 12773284 |
| 26 | Hexagon nut | 11900452 (replaces 92150134) |
| 27 | Tube | 4855250 |
| 28 | Cable clamp | 12778272 (replaces 6973804) |
| 28 | Stop | 12778272 |
| 28A | Set screw | 4940755 |
| 29 | Nipple | 4857959 |
| 30 | Hood lock wire | 4855011 |
| 30 | Hood lock wire | 4855029 |
| 31 | Grommet | 4249009 |
| 31 | Grommet | 4698205 |
| 32 | Clamp | 4321808 |
| 33 | Clip nut | 7967995 |
| 34 | Screw | 7985948 |
| 34 | Screw | 92153219 (replaces 92153004) |
| 35 | Tube clamp | 9266552 |
| 36 | Seal | 4552212 |
| 36 | Seal | 4698874 |
| 40 | Bushing | 12758794 |
| 41 | Decor strip | 12758634 |
| 41 | Decor strip | 12781601 |
| 41A | Nut | 12768207 |
| 42 | Decor strip | 12758635 |
| 42 | Plate | 12781603 |
| 43 | Decor strip | 12758636 |
| 43 | Plate | 12781602 |
| 44 | Screw | 92151992 |
| 45 | Grease | 90001825 |
