Saab 9-5 (9600) 1998-2005 Hood

Group 8a Car body, external, section 400

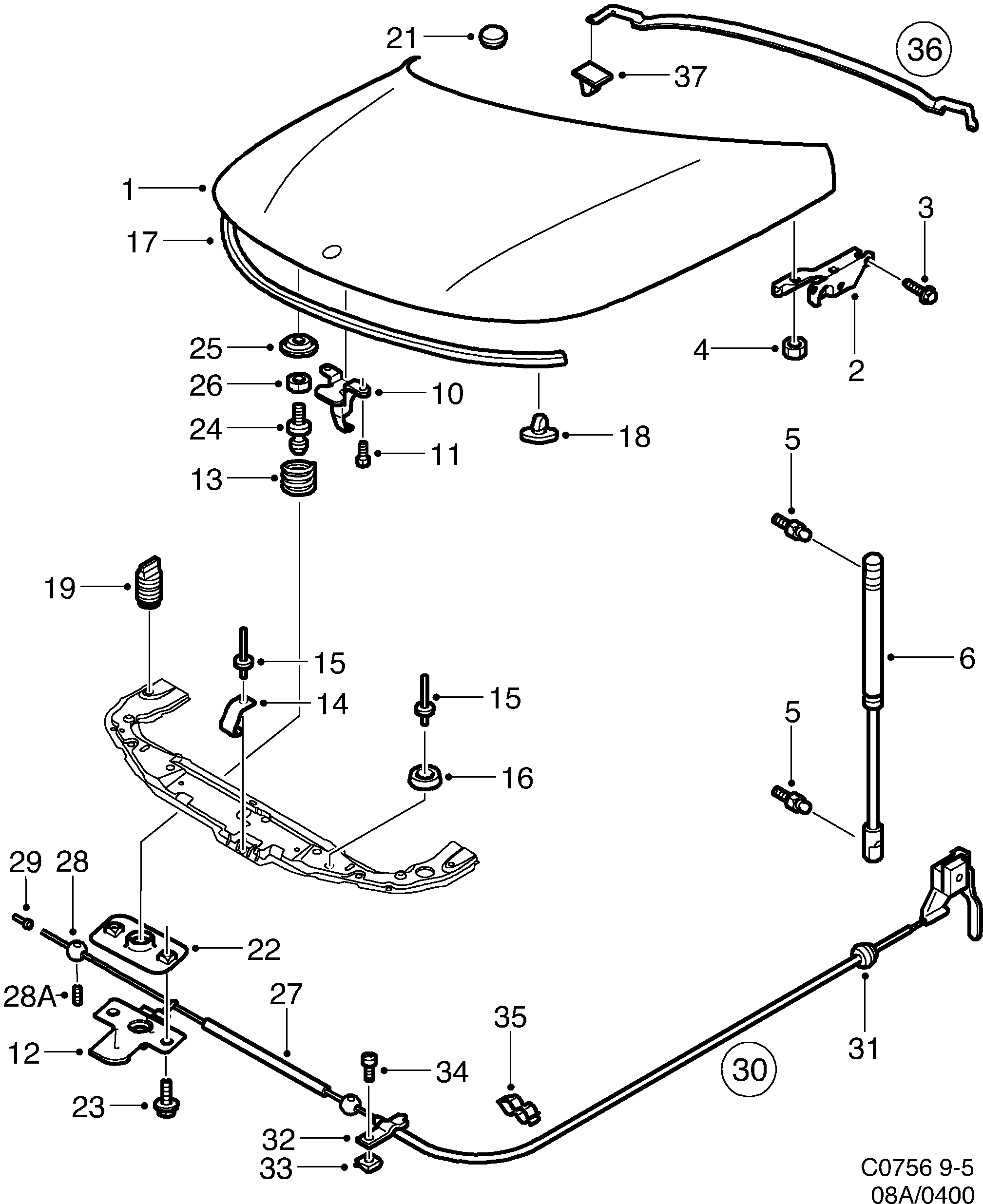

Saab 9-5 (9600) Hood diagram

Pos	Article	Part No.
1	Hood	12779212 (replaces 4854634)
1	Hood	5363882
2	Hinge	4852877
2	Hinge	4852885
3	Screw	4685723
3	Screw	12768930 (replaces 4940045)
4	Nut	4087045
5	Ballpin	4493912
6	Gas spring	5360821 (replaces 4855128)
6	Gas spring	5360821
10	Latch	12767500 (replaces 4767331)
10	Latch	12767500 (replaces 4857975)
10	Latch	12767500 (replaces 5360789)
10	Latch	12767500 (replaces 12793142)
11	Hexagon screw	92152130 (replaces 7984305)
12	Hood lock	12785020 (replaces 4854923)
12	Hood lock	12785020 (replaces 4859302)
12	Hood lock	12785020 (replaces 12755627)
13	Return spring	4854972
14	Wear protection	12790747 (replaces 4768636)
14	Wear protection	12790747 (replaces 5360623)
15	Rivet	92153060 (replaces 7972516)
16	Buffer	12786799 (replaces 9085267)
17	Seal	5360524 (replaces 4857306)
17	Seal	5360524 (replaces 5113337)
17	Seal	5360524
18	Clip	4857512 (replaces 4853313)
19	Rubber buffer	12786272 (replaces 4304234)
21	Plug	4333563
22	Guide	6973671
24	Lock pin	12778245 (replaces 4854980)
24	Lock pin	12778245 (replaces 5111992)
25	Washer	6973762
26	Hexagon nut	11900452 (replaces 7977952)
27	Tube	4855250
28	Cable clamp	12778272 (replaces 6973804)
28A	Set screw	4940755
29	Nipple	4857959
30	Hood lock wire	4855011
30	Hood lock wire	4855029
31	Grommet	4249009 (replaces 4321816)
31	Grommet	4698205
32	Clamp	4321808
33	Clip nut	7967995
34	Screw	7985948
35	Tube clamp	9266552
36	Seal	4552212
36	Seal	4698874
