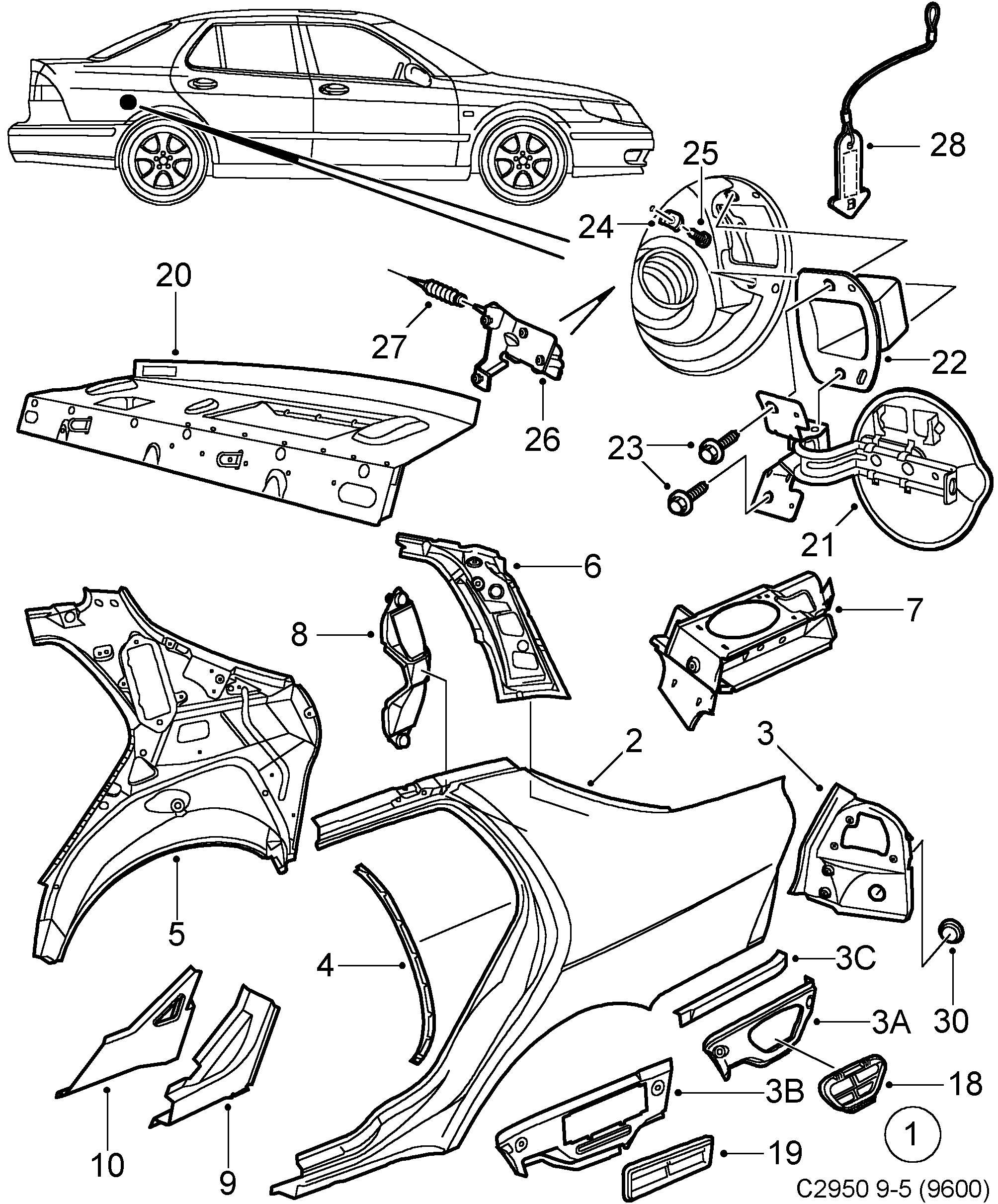

Group 8a Car body, external, section 314
| Pos | Article | Part No. |
|---|---|---|
| 1 | Valance | 5413851 |
| 1 | Valance | 5413885 |
| 2 | Valance | 5413877 |
| 2 | Valance | 5413919 |
| 3 | Attaching frame | 4720090 |
| 3 | Attaching frame | 4720108 |
| 3A | Filling-in plate | 93187503 (replaces 5070735) |
| 3A | Filling-in plate | 93187505 (replaces 5070743) |
| 3B | Filling-in plate | 93187503 |
| 3B | Filling-in plate | 93187505 |
| 3C | Rail | 93186406 (replaces 5412028) |
| 3C | Rail | 93186408 (replaces 5412036) |
| 3C | Rail | 93186406 |
| 3C | Rail | 93186408 |
| 4 | Carrier | 4720058 |
| 4 | Carrier | 4720066 |
| 5 | Valance | 5412168 |
| 5 | Valance | 5413539 (replaces 5412176) |
| 6 | C-pillar | 5411616 |
| 6 | C-pillar | 5411624 |
| 7 | Support | 4720272 |
| 7 | Support | 4720280 |
| 8 | Reinforcement | 4720330 |
| 8 | Reinforcement | 4720348 |
| 9 | Reinforcing plate | 5412879 |
| 9 | Reinforcing plate | 5412861 |
| 10 | Reinforcing plate | 5412895 |
| 10 | Reinforcing plate | 5412887 |
| 18 | Exhaust grille | 4541579 |
| 19 | Exhaust grille | 9177224 |
| 20 | Support | 5072160 |
| 21 | Tank hatch | 5364252 |
| 22 | Cover | 4554218 |
| 23 | Screw | 92153216 (replaces 7982325) |
| 23 | Screw | 92153216 |
| 24 | Rubber stop | 5363528 |
| 25 | Screw | 92151993 (replaces 7987563) |
| 25 | Screw | 92153149 |
| 26 | Electrical motor | 5364294 |
| 27 | Seal | 12793500 |
| 28 | Opening handle | 4859450 |
| 30 | Plug | 7987191 |
