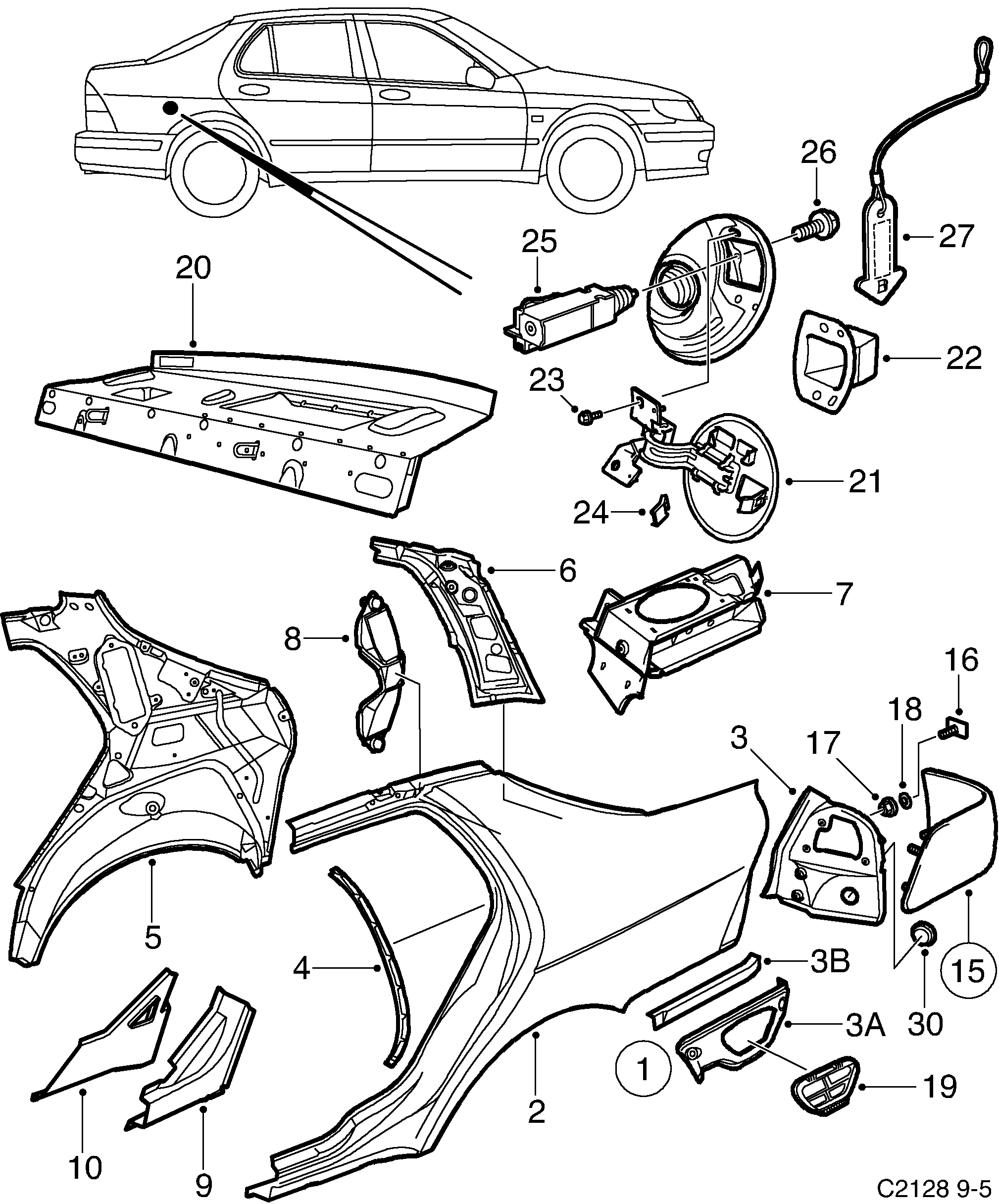

Group 8a Car body, external, section 310
| Pos | Article | Part No. |
|---|---|---|
| 1 | Valance | 5413851 (replaces 4720033) |
| 1 | Valance | 5412010 (replaces 4720041) |
| 2 | Valance | 5413877 (replaces 4720074) |
| 2 | Valance | 4720082 |
| 3 | Attaching frame | 4720090 |
| 3 | Attaching frame | 4720108 |
| 3A | Filling-in plate | 93187503 (replaces 5070735) |
| 3A | Filling-in plate | 93187505 (replaces 5070743) |
| 3B | Rail | 93186406 (replaces 5070750) |
| 3B | Rail | 93186408 (replaces 5070768) |
| 4 | Carrier | 4720058 |
| 4 | Carrier | 4720066 |
| 5 | Valance | 5412168 (replaces 4720157) |
| 5 | Valance | 5413539 (replaces 4720165) |
| 6 | C-pillar | 4720231 |
| 6 | C-pillar | 4720249 |
| 7 | Support | 4720272 |
| 7 | Support | 4720280 |
| 8 | Reinforcement | 4720330 |
| 8 | Reinforcement | 4720348 |
| 9 | Reinforcing plate | 5412879 (replaces 4720371) |
| 9 | Reinforcing plate | 5412861 (replaces 4720389) |
| 10 | Reinforcing plate | 5412895 (replaces 4720355) |
| 10 | Reinforcing plate | 5412887 (replaces 4720363) |
| 15 | Corner filler panel | 4919015 |
| 15 | Corner filler panel | 4919007 |
| 16 | Screw | 4596979 |
| 17 | Nut | 11900451 (replaces 7977929) |
| 18 | Washer | 8537623 |
| 19 | Exhaust grille | 4541579 |
| 20 | Support | 5072160 (replaces 4826053) |
| 20 | Support | 5072160 |
| 21 | Filler cap | 5185723 (replaces 4851093) |
| 21 | Tank hatch | 5185723 |
| 22 | Cover | 4554218 |
| 23 | Screw | 92153216 (replaces 7982325) |
| 24 | Wear protection | 4769626 |
| 25 | Solenoid | 5117072 (replaces 4852067) |
| 25 | Solenoid | 5117072 |
| 26 | Attachment | 4851481 |
| 27 | Opening handle | 4859450 |
| 30 | Plug | 7987191 |
