Saab 9-5 (9600) 1999-2001 Rear floor

Group 8a Car body, external, section 140

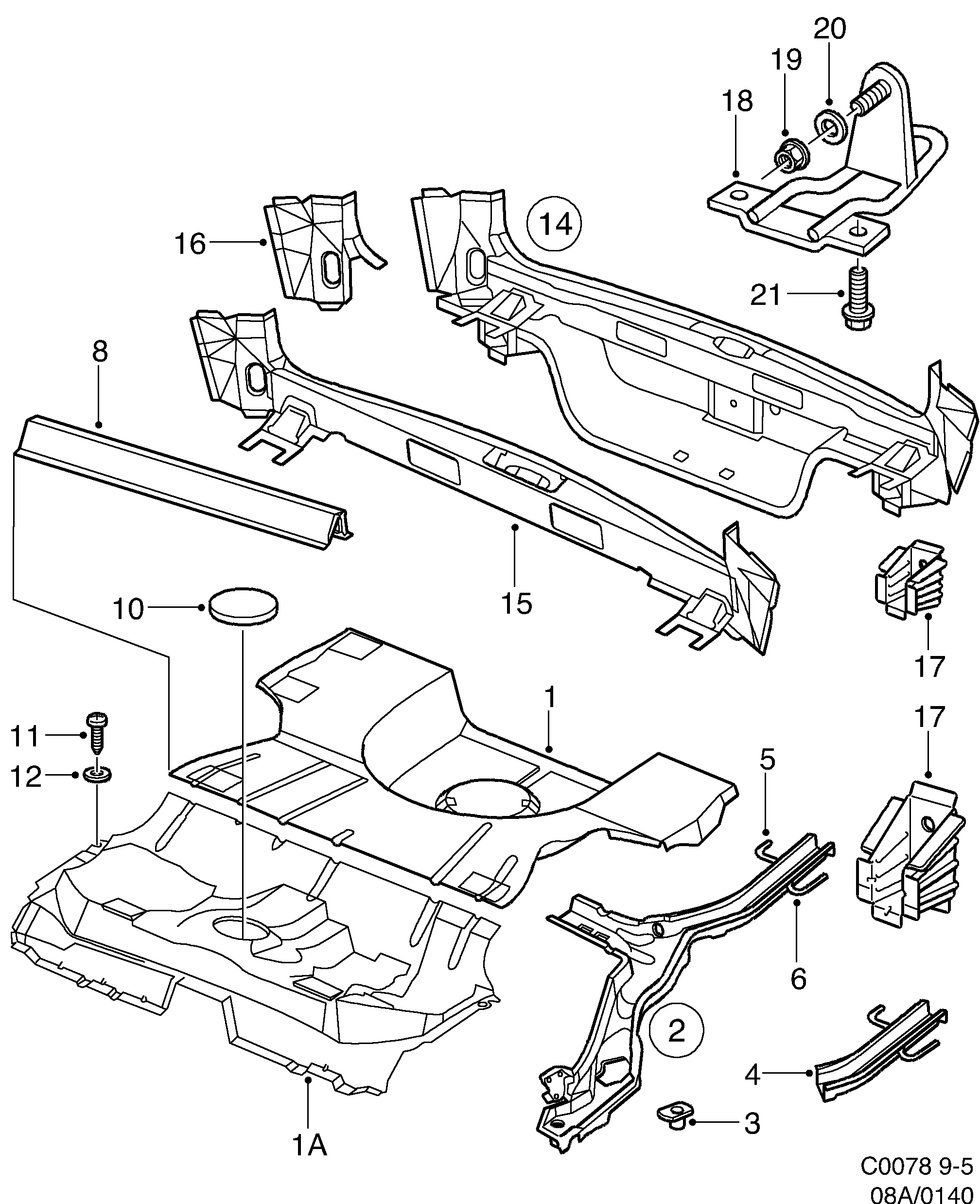

Saab 9-5 (9600) Rear floor diagram

Pos	Article	Part No.
1	Floor	12774547 (replaces 4825055)
2	Floor member	4825014
2	Floor member	4825022
3	Cage nut	4347589
4	Floor member	4825030
4	Floor member	4825048
5	Bracket	4828497
6	Bracket	4828505
8	Member	5071386 (replaces 4829602)
8	Member	5071386
10	Seal	8228702
11	Screw	4495065
12	Washer	92153204 (replaces 7916521)
12	Washer	92153204
14	Rear end panel	5336581 (replaces 5070115)
15	Sill	5336581 (replaces 5070123)
16	Reinforcement	5412820 (replaces 5070156)
16	Reinforcement	5412838 (replaces 5070164)
17	Spacer member	5412101 (replaces 5070131)
17	Spacer member	5412119 (replaces 5070149)
18	Towing eye	4596110
19	Nut	7967979
20	Washer	8934259
21	Screw	92152121 (replaces 8130064)
