Saab 9-5 (9600) 2002-2010 Rear floor

Group 8a Car body, external, section 132

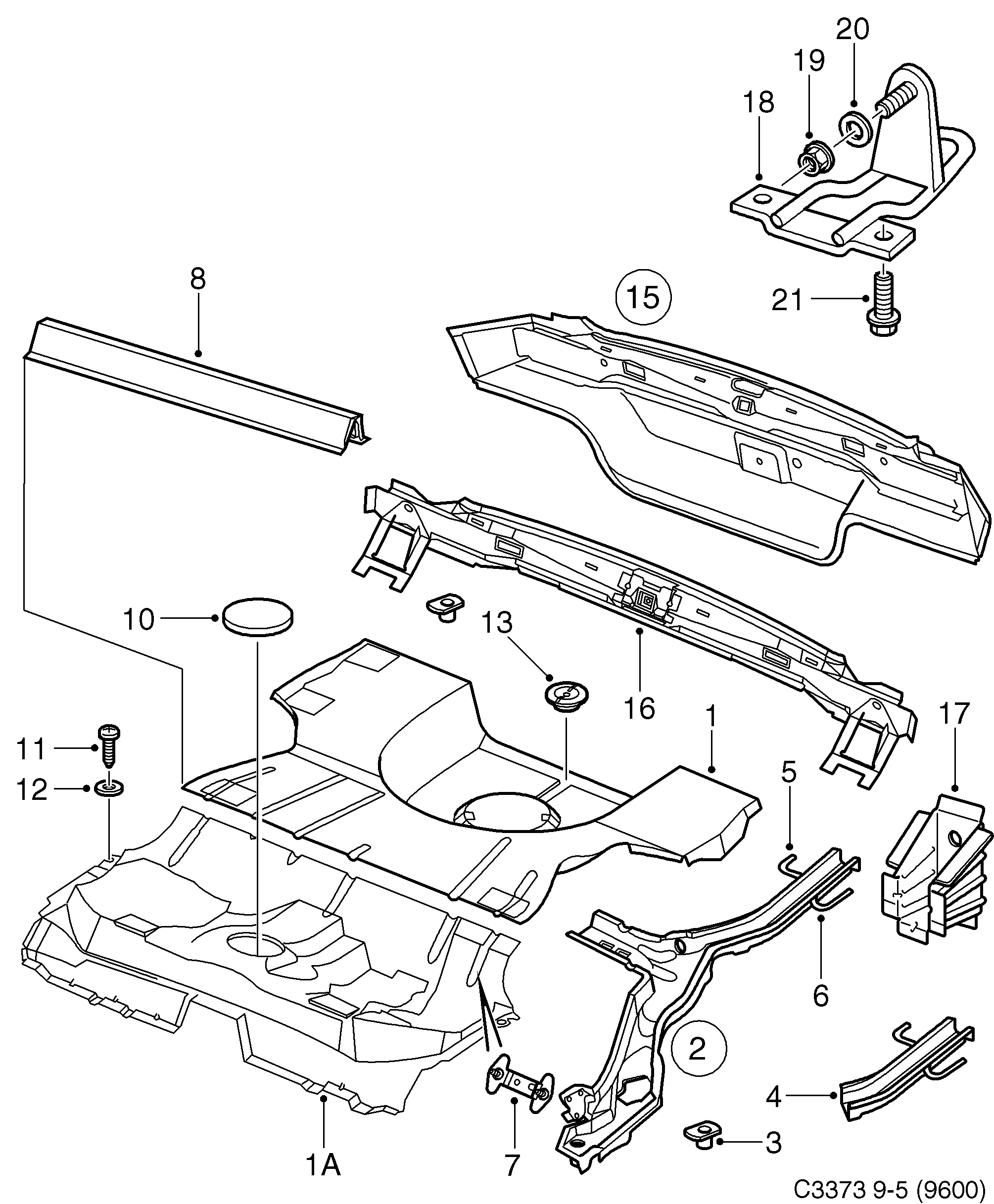

Saab 9-5 (9600) Rear floor diagram

Pos	Article	Part No.
1	Floor	12774547 (replaces 5412549)
1	Floor	12774547 (replaces 5413968)
1	Floor panel	12774547
2	Floor member	4825014
2	Floor member	4825022
3	Cage nut	4347589
4	Floor member	4825030
4	Floor member	4825048
5	Bracket	4828497
6	Bracket	4828505
7	Bolt plate	5412317
8	Member	5071386
10	Seal	8228702
10	Seal	12768778
11	Screw	4495065
12	Washer	92153204 (replaces 7916521)
12	Washer	92153204
13	Plug	24441493
15	Rear end panel	5412069
16	Sill	5412648
17	Spacer member	5412077
17	Spacer member	5412085
18	Towing eye	4596110
19	Nut	7967979
20	Washer	8934259
20	Washer	12779142
21	Screw	92152121 (replaces 8130064)
