Saab 9-5 (9600) 1998-2001 Rear floor

Group 8a Car body, external, section 130

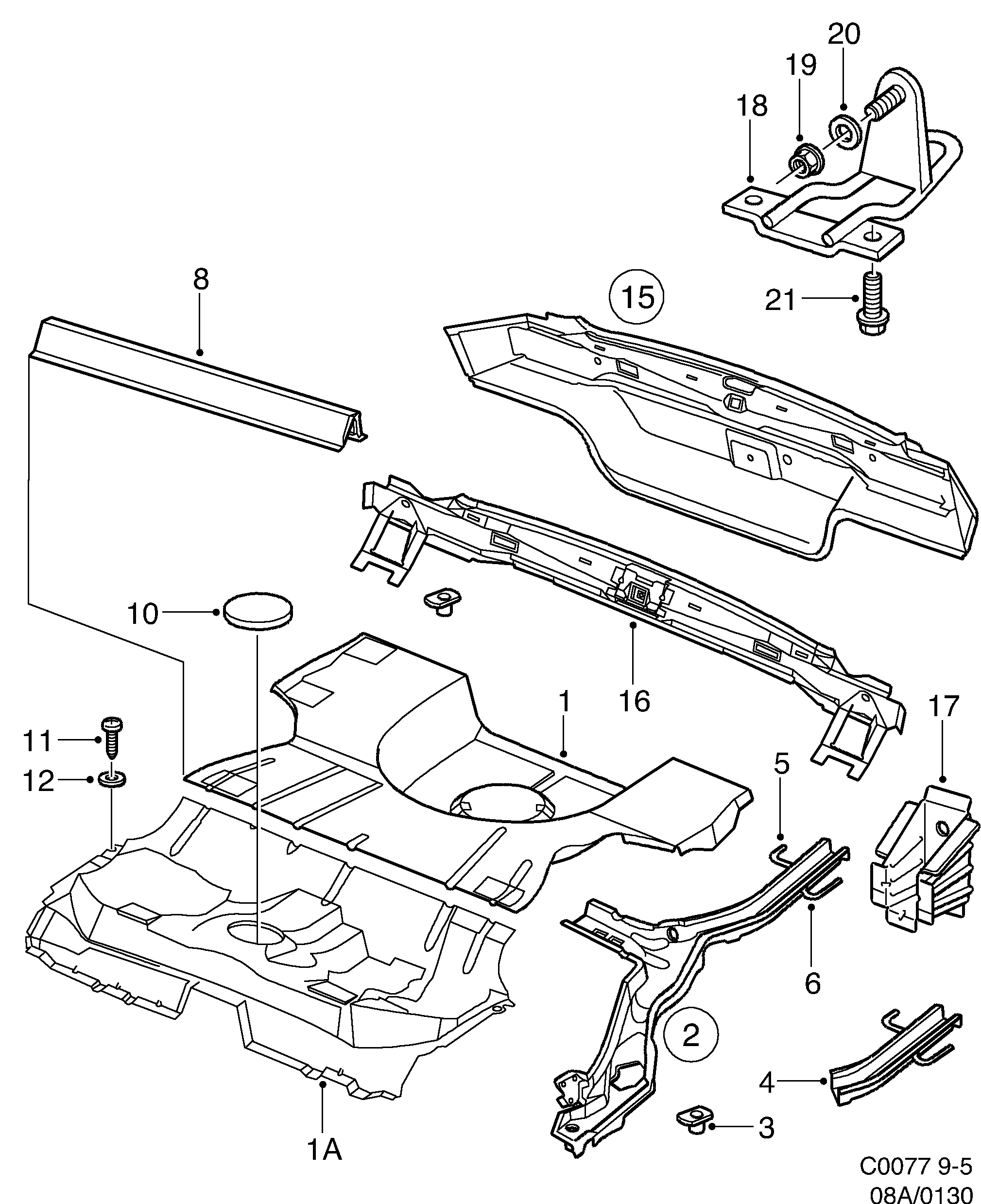

Saab 9-5 (9600) Rear floor diagram

Pos	Article	Part No.
1	Floor	12774547 (replaces 4825055)
2	Floor member	4825014
2	Floor member	4825022
3	Cage nut	4347589
4	Floor member	4825030
4	Floor member	4825048
5	Bracket	4828497
6	Bracket	4828505
8	Member	5071386 (replaces 4720009)
8	Member	5071386 (replaces 4829602)
8	Member	5071386
10	Seal	8228702
11	Screw	4495065
12	Washer	92153204 (replaces 7916521)
15	Rear end panel	5412069 (replaces 4825196)
16	Sill	5412648 (replaces 4720132)
17	Spacer member	5412077 (replaces 4826194)
17	Spacer member	5412085 (replaces 4826202)
18	Towing eye	4596110
19	Nut	7967979
20	Washer	8934259
21	Screw	92152121 (replaces 8130064)
