Saab 9-5 (9600) 2002-2010 Front and centre floor

Group 8a Car body, external, section 110

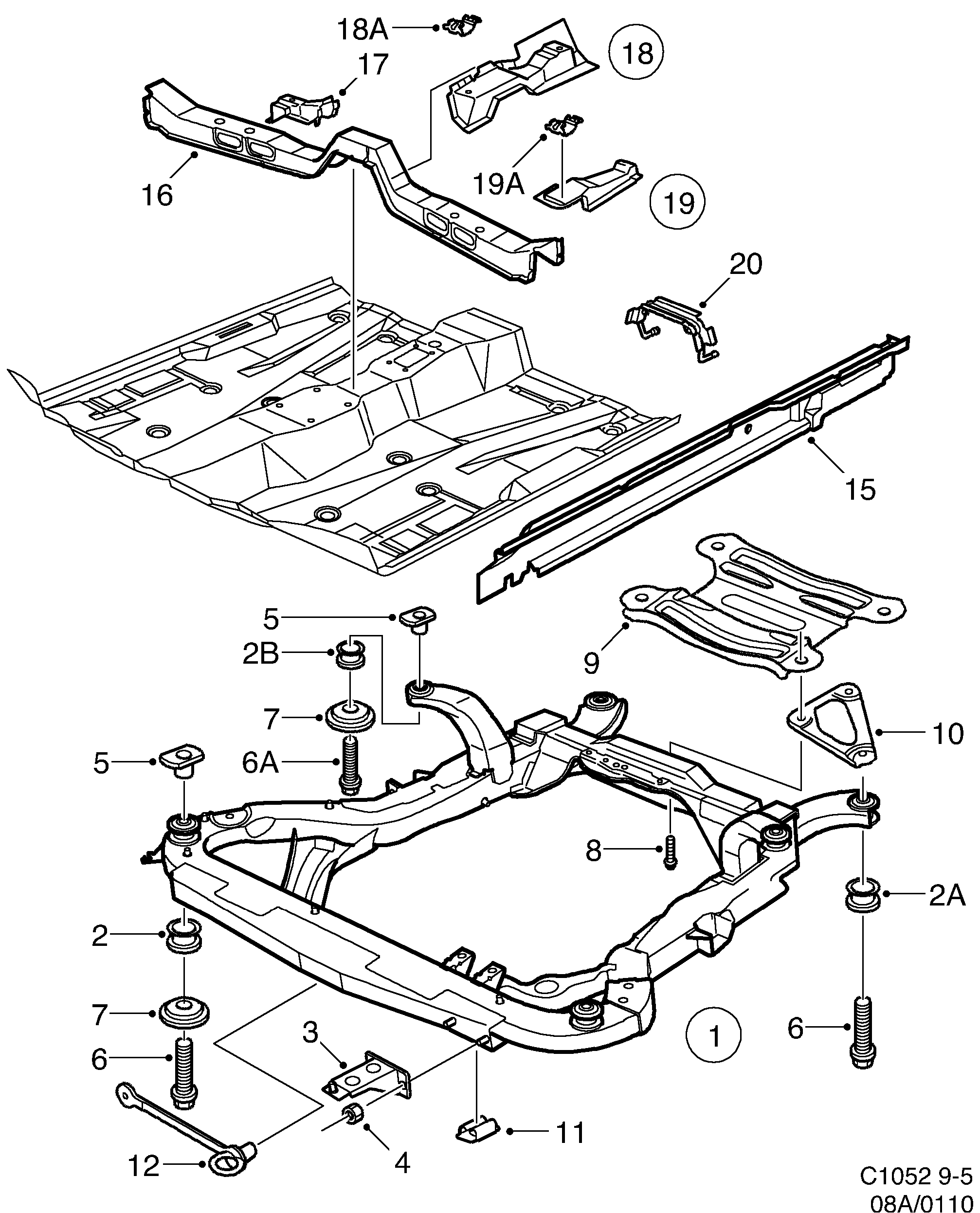

Saab 9-5 (9600) Front and centre floor diagram

Pos	Article	Part No.
1	Frame	12765947 (replaces 5239264)
1	Frame	12765947
1	Frame	12765948
2	Bushing	5233382
2A	Bushing	12762090
2B	Bushing	5231808
3	Bracket	5233226
4	Hexagon nut	11900452 (replaces 7977952)
5	Cage nut	4347589
5	Cage nut	90468617
6	Screw	4597985
6	Screw	11095961
6A	Screw	5236716
7	Washer	4597993
7	Washer	90468553
8	Screw	9292699
8	Screw	12756010
9	Crossmember	12756016
10	Support plate	24416025
10	Support plate	90497905 (replaces 4599601)
12	Plug	4826996
15	Sill	4829412
15	Sill	4829420
16	Beam	4825071
17	Reinforcement	4825097
17	Reinforcement	4825105
18	Support member	4825113
18	Support member	4825121
18A	Seat bracket	4827895
18A	Seat bracket	4827903
19	Support member	4825139
19	Support member	4825147
19A	Seat bracket	4827911
19A	Seat bracket	4827929
20	Exhaust pipe mounting	4825089
	Cage nut	4940524
