Saab 9-5 (9600) 2000-2001 Front and centre floor

Group 8a Car body, external, section 105

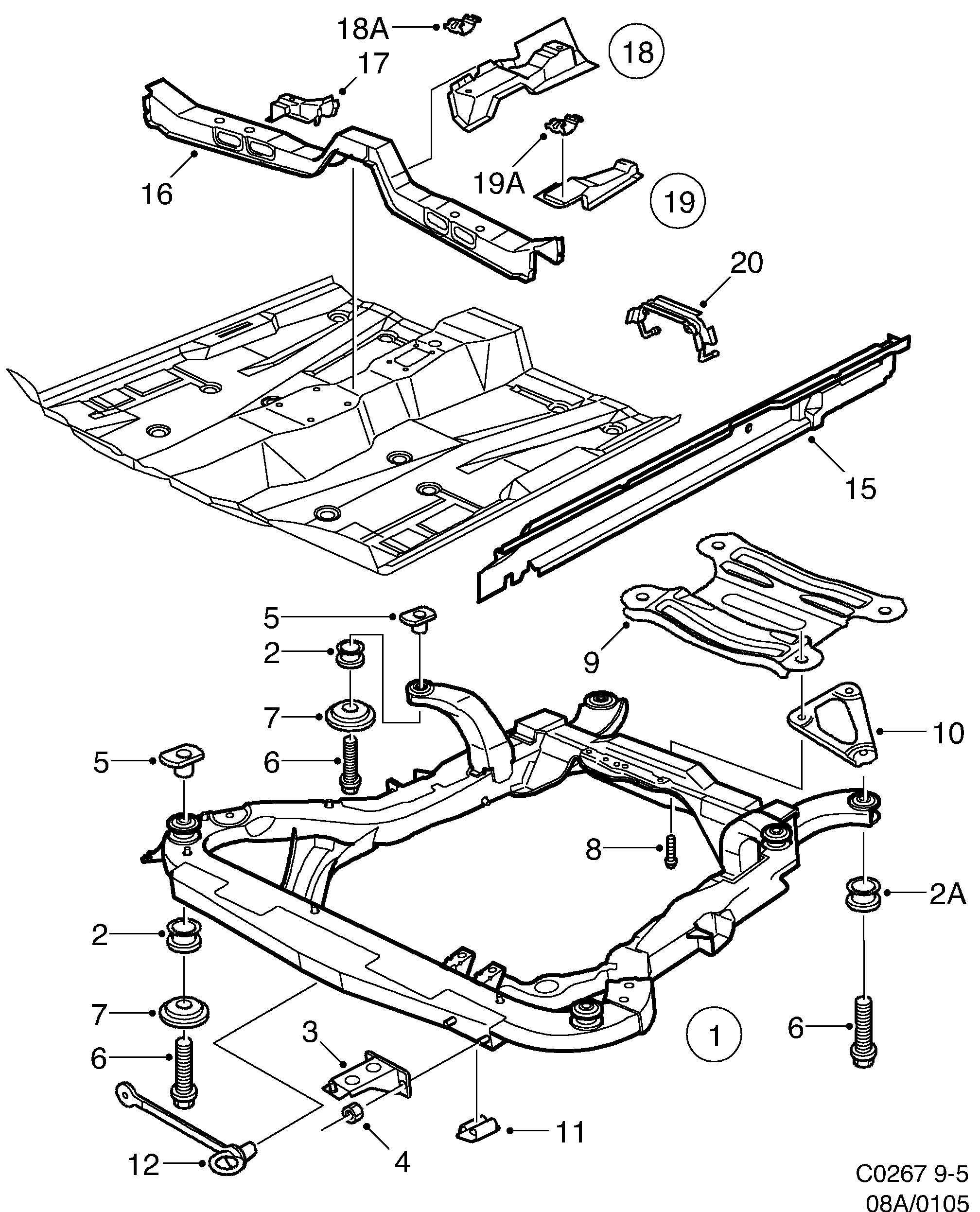

Saab 9-5 (9600) Front and centre floor diagram

Pos	Article	Part No.
1	Frame	12765947 (replaces 5064621)
2	Bushing	4566923
2A	Bushing	90468609 (replaces 4909024)
3	Bracket	5233226 (replaces 4593836)
3	Bracket	5233226
4	Hexagon nut	11900452 (replaces 7977952)
5	Cage nut	4347589
6	Screw	4597985
7	Washer	4597993
8	Screw	9292699
9	Crossmember	4908059
10	Support plate	24416025 (replaces 4599593)
10	Support plate	24416025 (replaces 5331772)
10	Support plate	90497905 (replaces 4599601)
12	Plug	4826996
15	Sill	4829412
15	Sill	4829420
16	Beam	4825071
17	Reinforcement	4825097
17	Reinforcement	4825105
18	Support member	4825113
18	Support member	4825121
18A	Seat bracket	4827895
18A	Seat bracket	4827903
19	Support member	4825139
19	Support member	4825147
19A	Seat bracket	4827911
19A	Seat bracket	4827929
20	Exhaust pipe mounting	4825089
	Cage nut	4940524
